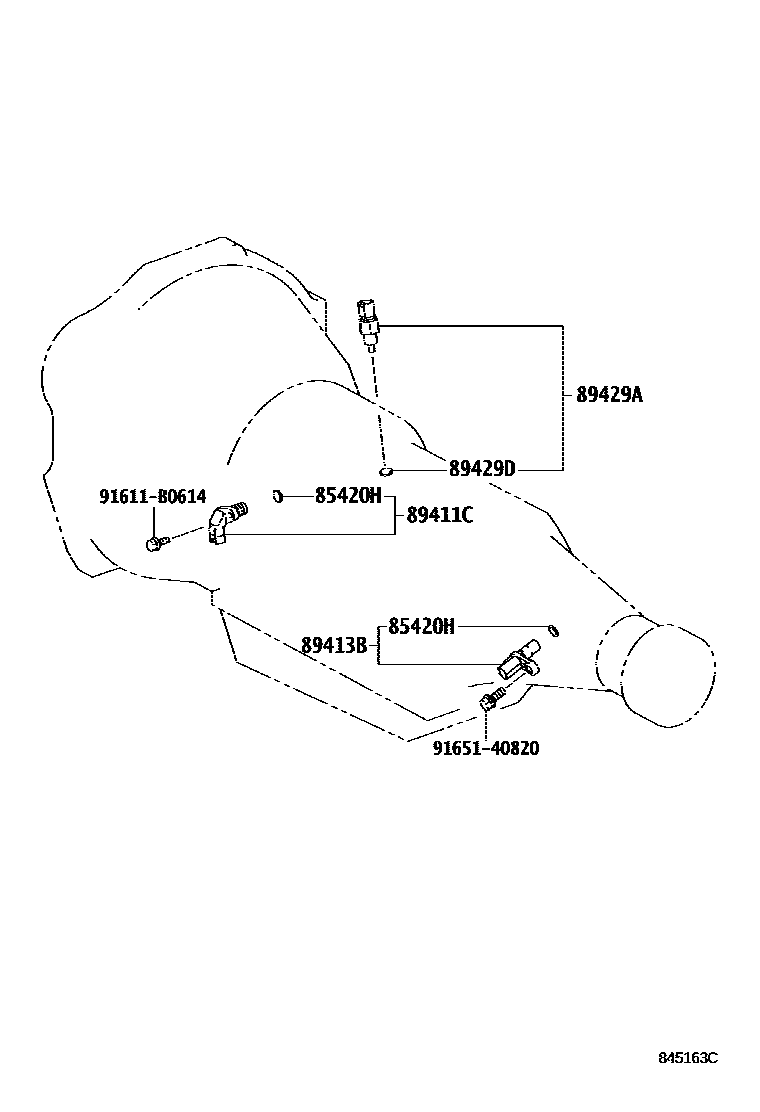

Toyota 4RUNNER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0004 1

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iGRN215¥160200211-200408

main90301-11008iKZN215¥160200211-200508

main90301-11008iGRN21#¥160200508-200908

89411CSENSOR, SPEED

main89411-50010iGRN210¥4,420200211-200408

main89411-50010iKZN215¥4,420200211-200508

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-24010iGRN210¥6,000200211-200408

main89413-32010iGRN21#¥6,100200408-200508

sub89413-32011¥4,520

main89413-32010iGRN21#¥6,100200508-200908

sub89413-32011¥4,520

89429ASENSOR, TEMPERATURE

main89429-34010iGRN21#¥2,410200211-200408

main89429-34010iKZN215¥2,410200211-200508

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iGRN21#¥220200211-200408

91611B0614

main91611-B0614¥110

9165140820

main91651-40820¥90

7 parts on this diagram · 3 diagrams in section
