Toyota 4RUNNER — METER

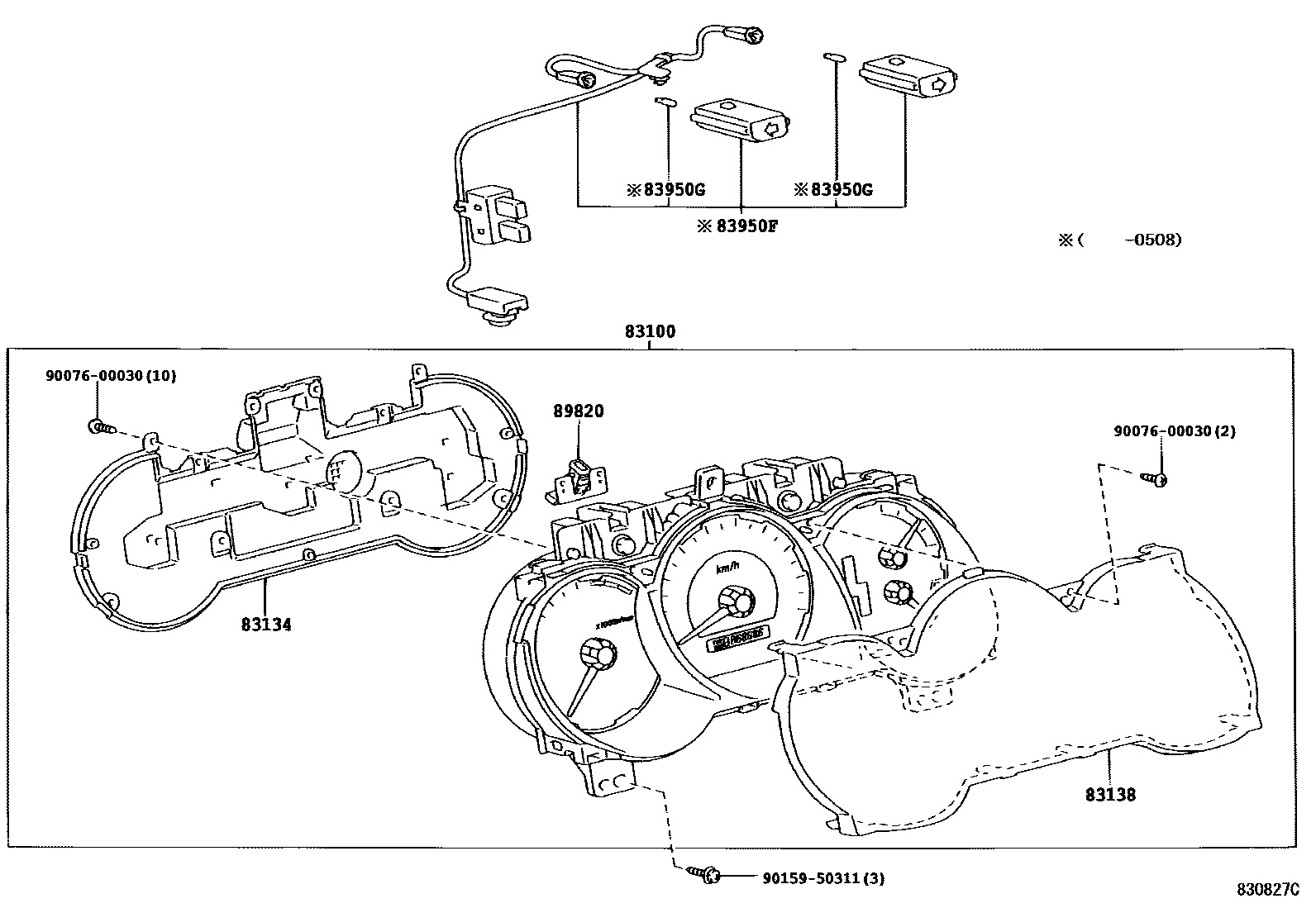

83100METER ASSY, COMBINATION

main83800-35C10iGRN21#..SR5200408-200508

main83800-35C20iGRN215..LIMD200408-200508

main83800-35E30iGRN21#..SR5200508-200707

main83800-35E32iGRN21#..SR5200707

main83800-35E40iGRN215..LIMD200508-200707

main83800-35E42iGRN215..LIMD200707

main83800-3G450iKZN215..SR5200211-200508

main83800-3G460iKZN215..LIMD200211-200508

main83800-3G640iGRN21#..SR5200211-200408

main83800-3G650iGRN215..LIMD200211-200408

83134COVER, COMBINATION METER, NO.1

main83821-3G390iGRN21#¥2,550200508-200706

main83821-3G390iGRN21#,KZN215¥2,550200211-200508

main83821-3G390iGRN21#¥2,550200707

83138GLASS, SPEEDOMETER

main83852-35E50iGRN21#¥2,160200508-200706

main83852-35E50iGRN21#¥2,160200707

main83852-3G390iGRN21#,KZN215¥2,160200211-200508

83950FLAMP ASSY, TELLTALE

main83950-35030iGRN21#¥6,000200211-200408

main83950-35030iKZN215;GRN21#..5FC¥6,000200211-200508

83950GBULB, TELLTALE LAMP

main84999-50050iGRN21#¥390200211-200408

14V 1.4W

main84999-50050iKZN215;GRN21#..5FC¥390200211-200508

14V 1.4W

89820SENSOR ASSY, INCLINATION

main89820-35020iGRN21#¥7,600200211-200408

main89820-35020iKZN215;GRN21#..5FC¥7,600200211-200508

main89820-35020iGRN21#¥7,600200508-200908

9007600030

main90076-00030¥60

9015950311

main90159-50311¥70

8 parts on this diagram · 1 diagram in section
