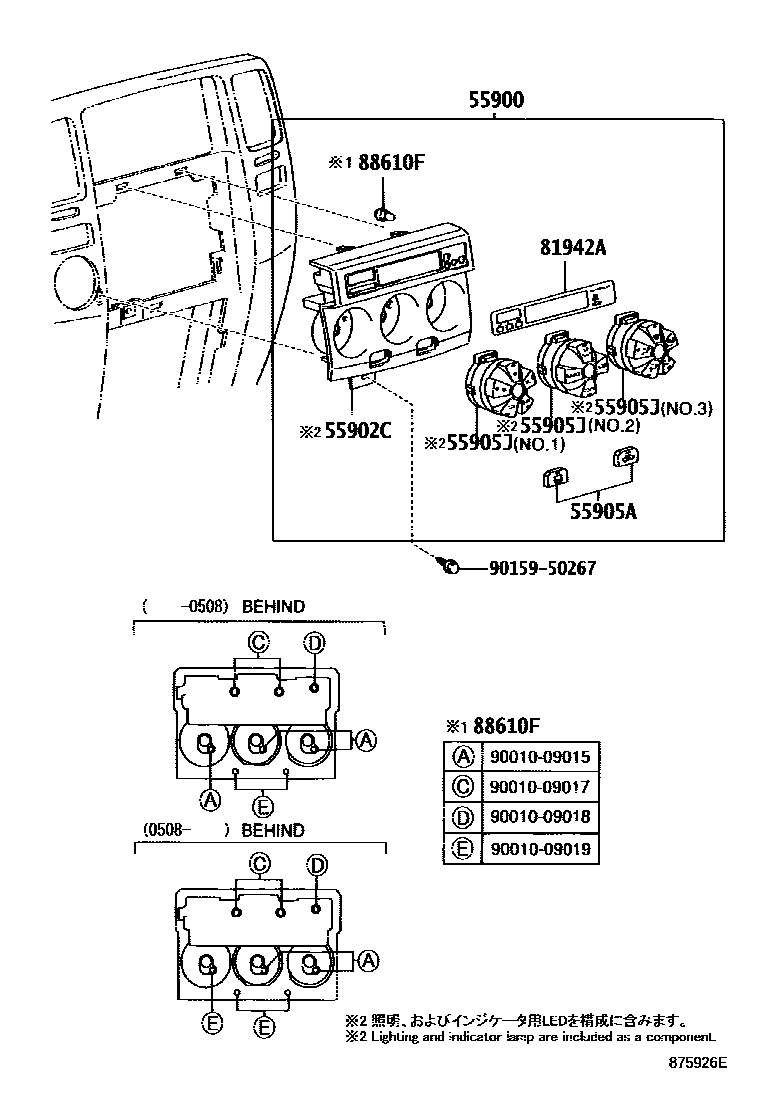

Toyota 4RUNNER — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55900CONTROL ASSY, AIR CONDITIONER
55902CPANEL SUB-ASSY, AIR CONDITIONER
55905AKNOB, HEATER CONTROL
55905JKNOB SUB-ASSY, CONTROL
NO.1
NO.3
NO.2
81942ASHEET, HEATER CONTROL NAME, NO.1
88610FBULB, COOLER CONTROL SWITCH
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE E:REFER ILLUST.
9015950267
7 parts on this diagram · 3 diagrams in section
