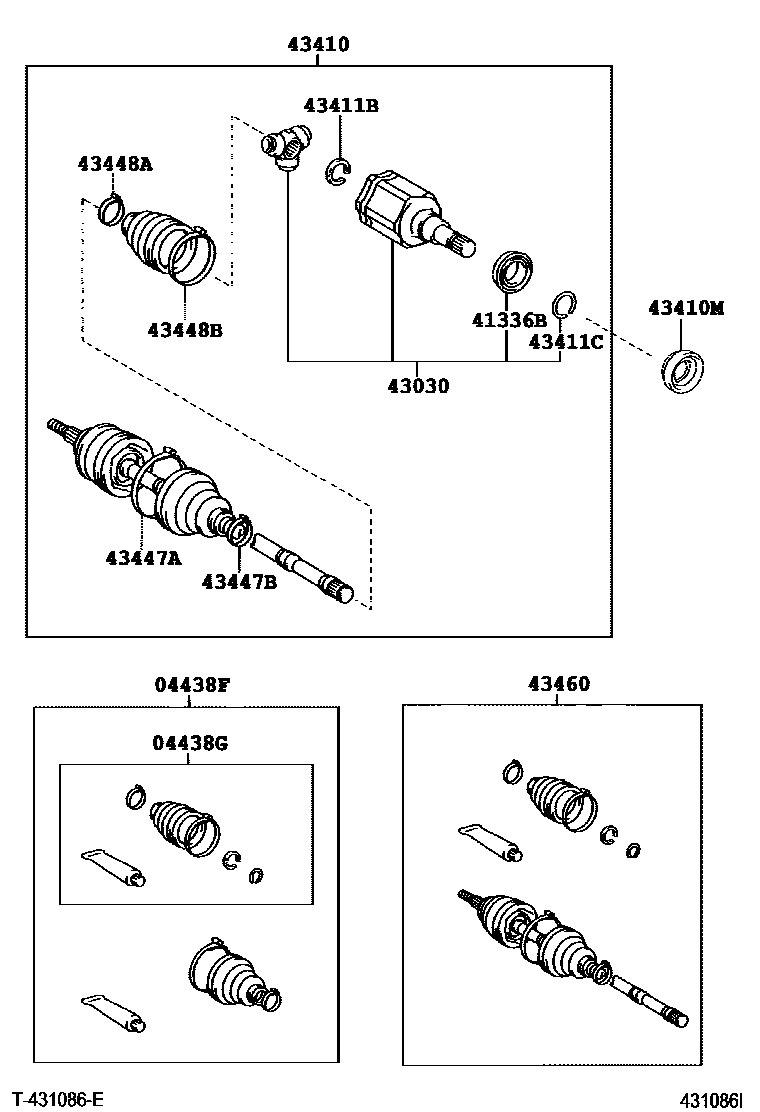

Toyota 4RUNNER — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-60080iGRN215,KZN215¥10,800200408-200908

sub04427-60140¥10,800

main04438-60030iGRN215,KZN215¥10,800200211-200408

sub04427-60040¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-60040iGRN215¥6,700200508

sub04437-60041¥6,700

main04438-60040iGRN215,KZN215¥6,700200211-200508

sub04437-60040¥6,700

41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)

main41336-35020iGRN215¥310200211-200508

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-60020iGRN215¥32,700200211-200508

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-60060iGRN215¥71,300200211-200508

sub43430-60061¥71,300

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-47013iGRN215,KZN215¥580200211-200908

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-26028iGRN215¥110200211-200508

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90521-34003iGRN215¥110200211-200908

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60120iGRN215,KZN215¥280200211-200508

sub42345-60280¥250

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-60110iGRN215¥250200211-200508

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-60090iGRN215¥310200211-200508

sub42345-60190¥310

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01339iGRN215¥350200211-200508

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69055iGRN215,KZN215¥45,600200211-200408

sub43460-69105¥45,400

main43460-69105iGRN215,KZN215¥45,400200408-200508

sub43460-69106¥45,400

13 parts on this diagram · 2 diagrams in section
