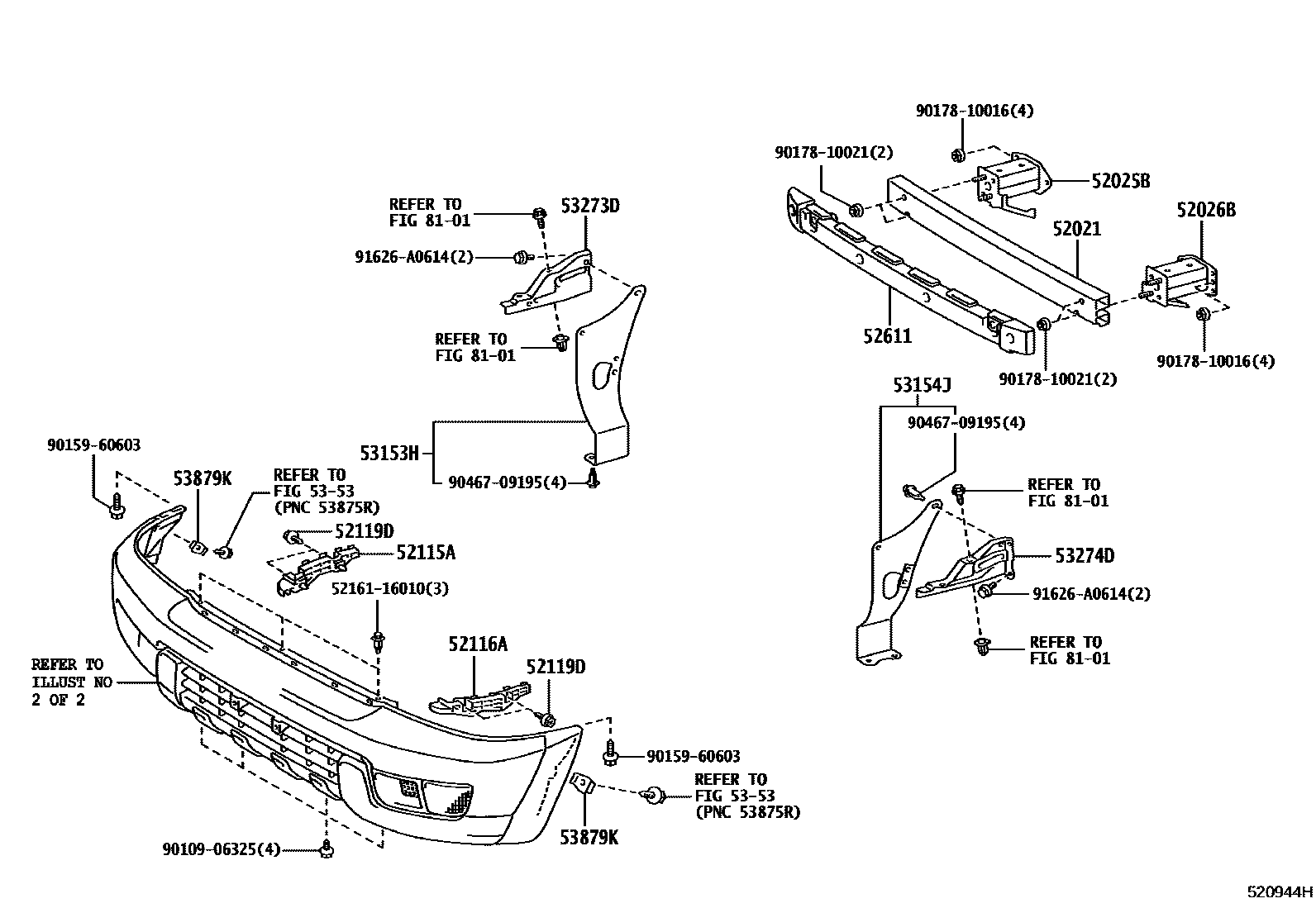

Toyota 4RUNNER — FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1LIMD OR LIMITED PACKAGE 0004 1LIMD OR LIMITED PACKAGE 0005 1 0006 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-35040iGRN21#,KZN215¥20,400200211-200508

main52021-35060iGRN21#¥20,200200508-200908

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-35050iGRN21#,KZN215¥4,720200211-200508

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-35050iGRN21#,KZN215¥4,720200211-200508

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-35100iGRN21#,KZN215¥2,440200211-200508

main52115-35110iGRN21#¥3,660200508

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-35090iGRN21#,KZN215¥2,440200211-200508

main52116-35100iGRN21#¥3,660200508

52119DSCREW, NO.1

main90159-60431iGRN21#,KZN215¥70200211-200908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-35010iGRN21#,KZN215¥7,500200211-200508

main52611-35020iGRN21#¥5,900200508

53153HGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-35010iGRN21#¥2,160200211-200508

main53153-35011iGRN21#¥2,160200508

53154JGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-35030iGRN21#¥2,160200211-200508

main53154-35031iGRN21#¥2,160200508

53273DBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-35070iGRN21#,KZN215¥1,450200211-200508

main53273-35080iGRN21#¥2,110200508

53274DBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-35050iGRN21#,KZN215¥1,450200211-200508

main53274-35060iGRN21#¥2,110200508

5353

53879KRETAINER, FRONT FENDER LINER

main53879-58010iGRN21#,KZN215¥240200211-200508

LIMITED PACKAGE

main53879-58010iGRN21#..SR5¥240200508-200705

main53879-58010iGRN215..LIMD¥240200508-200706

FRONT FOG LAMP-WITH

8101

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

9010906325

main90109-06325¥90

9015960603

main90159-60603¥60

9017810016

main90178-10016¥100

9017810021

main90178-10021¥100

9046709195

main90467-09195¥170

91626A0614

main91626-A0614¥110

21 parts on this diagram · 6 diagrams in section
