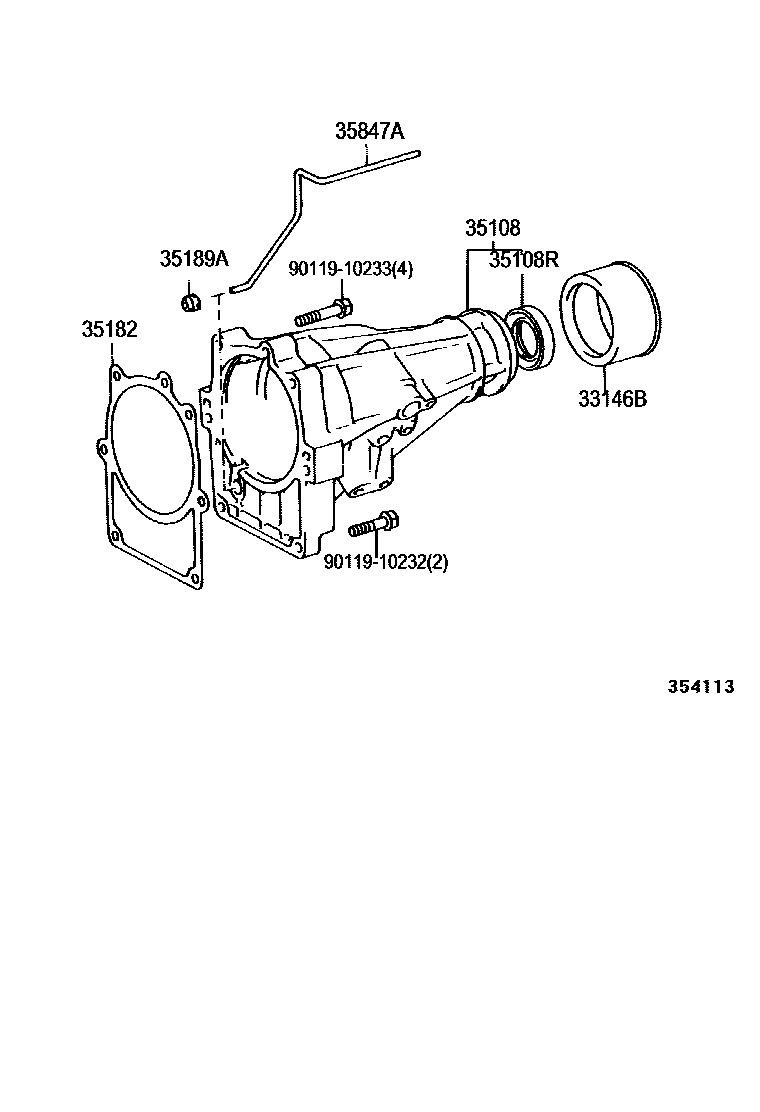

Toyota 4RUNNER — EXTENSION HOUSING (ATM)

0001 1A340E 0002 1A750E

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30020iGRN210¥990200211-200508

main33146-30020iGRN210¥990200508

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35070iGRN210¥27,900200211-200408

main35108-35100iGRN210¥19,300200408-200508

main35108-35100iGRN210¥19,300200508

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iGRN210¥400200211-200408

main90311-40001iGRN210..5FC¥400200211-200508

main90311-40001iGRN210¥400200508-200805

main90311-40034iGRN210¥400200805-200908

sub90311-40045¥400

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iGRN210¥520200211-200408

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGRN210¥500200211-200408

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGRN210¥460200211-200408

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

8 parts on this diagram · 2 diagrams in section
