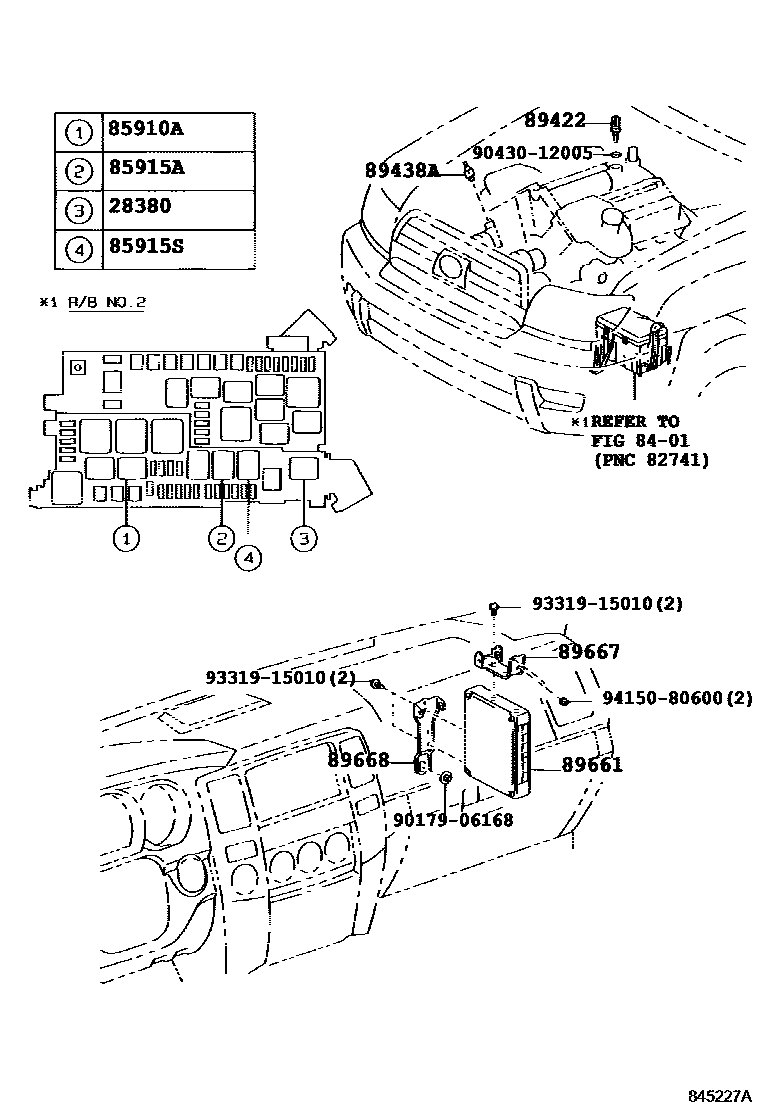

Toyota 4RUNNER — ELECTRONIC FUEL INJECTION SYSTEM

28380RELAY ASSY, FUEL PUMP

main90987-04004i1GRFE..GRN21#..5FC¥2,810200211-200508

main90987-04004i1GRFE..GRN21#¥2,810200211-200408

main90987-04004i1GRFE..GRN21#¥2,810200508-200908

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iGRN21#¥3,880200211-200408

main90987-02027iGRN21#¥2,930200408-200508

main90987-02027iGRN21#¥2,930200508-200908

85915ARELAY, MAIN

main90987-02022iGRN21#¥3,880200211-200408

main90987-02027iGRN21#¥2,930200408-200508

main90987-02027iGRN21#¥2,930200508-200908

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02022iGRN21#¥3,880200211-200408

main90987-02027iGRN21#¥2,930200408-200508

main90987-02027iGRN21#¥2,930200508-200908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRN21#¥2,410200211-200508

main89422-33030iGRN21#¥2,410200508-200908

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGRN21#..5FC¥3,340200211-200508

main89438-33010iGRN21#¥3,340200211-200408

main89438-33010iGRN21#¥3,340200508-200908

89661COMPUTER, ENGINE CONTROL

main89661-35A90iGRN210200408-200503

sub89661-35A91

main89661-35A91iGRN210200504-200508

sub89661-35A92

main89661-35A91iGRN210200508-200611

sub89661-35A92

main89661-35A92iGRN210200612

main89661-35B00iGRN215200408-200503

sub89661-35B01

main89661-35B01iGRN215200504-200508

sub89661-35B02

main89661-35B01iGRN215200508-200611

sub89661-35B02

main89661-35B02iGRN215200612

main89666-35700iGRN210200211-200408

main89666-35710iGRN215200211-200408

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60240iGRN21#¥870200211-200508

main89667-60240iGRN21#¥870200508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60240iGRN21#¥1,410200211-200508

main89668-60240iGRN21#¥1,410200508

9017906168

main90179-06168¥80

9043012005

main90430-12005¥110

9331915010

main93319-15010¥70

9415080600

main94150-80600¥60

14 parts on this diagram · 1 diagram in section
