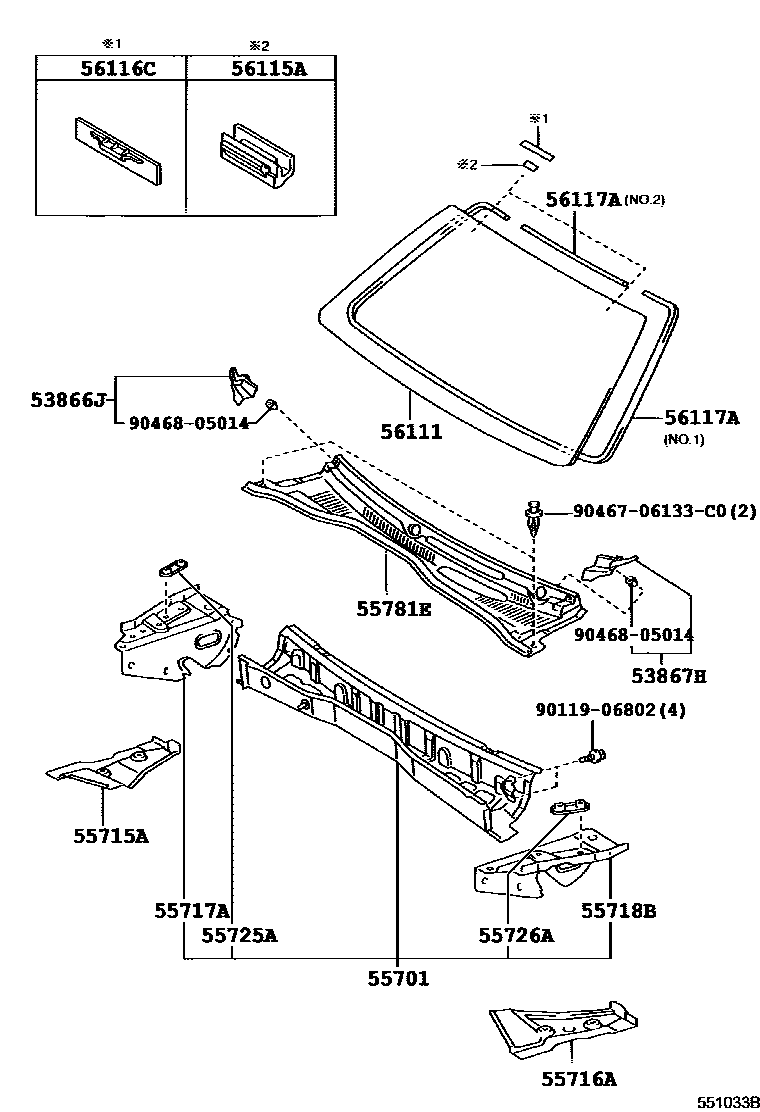

Toyota 4RUNNER — COWL PANEL & WINDSHIELD GLASS

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-35020i¥900200211-200508

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-35010i¥900200211-200508

55701PANEL SUB-ASSY, COWL

main55700-35690i¥32,900200211-200908

55715ABRACE, COWL TOP TO APRON, RH

main55715-35020i¥1,410200211-200908

55716ABRACE, COWL TOP TO APRON, LH

main55716-35020i¥1,410200211-200908

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35030i¥2,840200211-200508

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35030i¥2,840200211-200508

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-22010i¥340200211-200908

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-22010i¥340200211-200908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-35070i¥14,600200211-200503

sub55708-35071¥14,600

main55708-35071i¥14,600200504-200508

56111GLASS, WINDSHIELD

main56101-35030i¥91,700200211-200508

*LAM,T=4.56,GREEN,EC MIRROR & COMPASS

main56101-35030i¥91,700200211-200508

*LAM,T=4.56,GREEN

main56101-35060i¥91,700200211-200508

*LAM,T=4.56,GREEN

main56101-35090i200508-200608

*LAM,T=5.36,GREEN

main56101-35090i200508-200608

*LAM,T=5.36,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE WITH COMPUS

main56101-35120i200508

*LAM,T=5.36,GREEN

main56101-35140i200608

*LAM,T=5.36,GREEN

main56101-35140i200608

*LAM,T=5.36,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE WITH COMPUS

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i¥130200211-200508

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i¥120200211-200508

56117ADAM, WINDOW GLASS ADHESIVE

main56117-35090i¥1,330200211-200508

L=3196,NO.1

sub56117-64010¥1,480

main56117-35100i¥610200211-200508

L=732,NO.2

sub56117-52040¥670

9011906802

main90119-06802¥60

9046706133C0

main90467-06133C0

9046805014

main90468-05014¥230

17 parts on this diagram · 1 diagram in section
