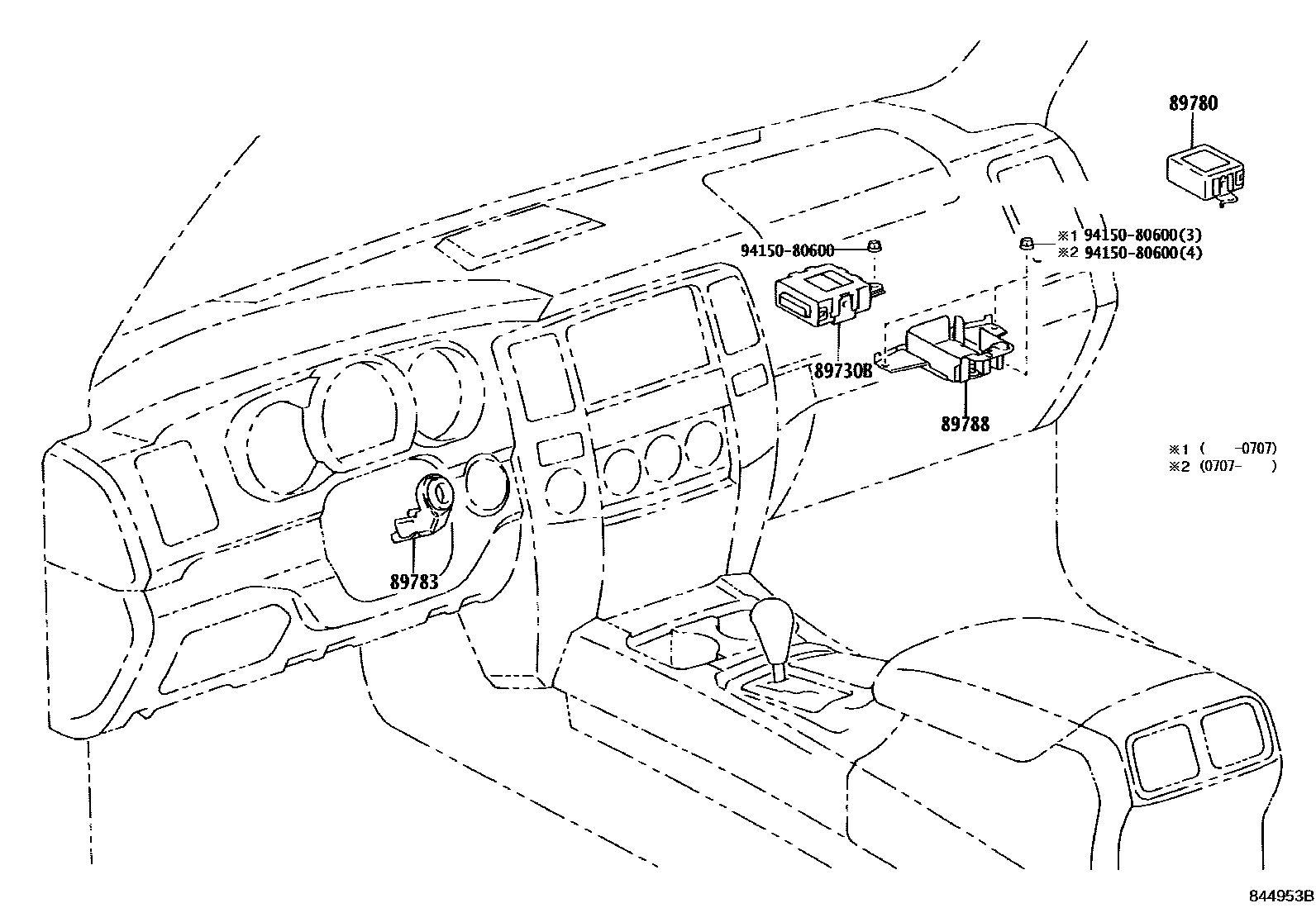

Toyota 4RUNNER — ANTI-THEFT DEVICE

89730BCOMPUTER ASSY, THEFT WARNING

main89730-35010iGRN215..LIMD200211-200408

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main89730-35010iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main89730-35010iGRN215..LIMD200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-35090iGRN215,KZN215..LIMD200211-200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main89780-35090iGRN215..LIMD200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iGRN215,KZN215..LIMD¥10,900200211-200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

sub89783-35031¥10,900

main89783-48050iGRN21#..SR5¥10,900200803-200906

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

sub89783-48051¥10,900

main89783-48051iGRN215..LIMD¥10,900200907-200908

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

sub89783-48052¥10,900

main89783-60110iGRN215..LIMD¥10,900200508-200802

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

sub89783-60111¥10,900

89788BRACKET, TRANSPONDER KEY

main89788-35010iGRN215,KZN215..LIMD¥2,570200211-200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main89788-35030iGRN215..LIMD200508-200707

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main89788-35031iGRN215..LIMD200707

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

9415080600

main94150-80600¥60

5 parts on this diagram · 1 diagram in section
