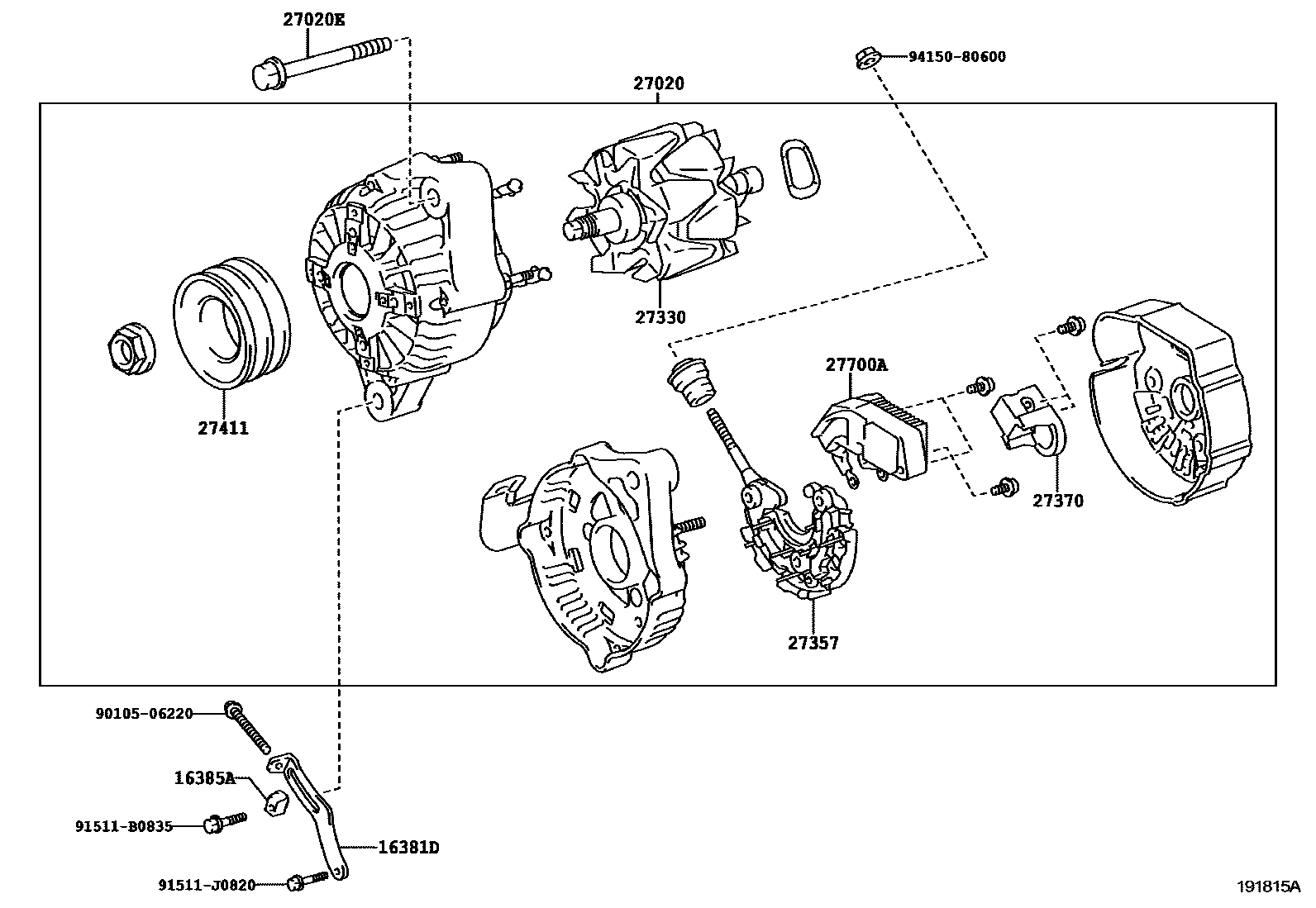

Toyota 4RUNNER — ALTERNATOR

0001 112V 70A 0002 112V 80A

16381DBAR, FAN BELT ADJUSTING

main16381-67020i1KZTE..KZN215¥1,280200211-200508

16385ASLIDER, FAN BELT ADJUSTING

main16385-67010i1KZTE..KZN215¥870200211-200508

27020ALTERNATOR ASSY

main27060-31010i1GRFE..GRN21#¥122,000200211-200508

12V 80A

sub27060-31011¥123,000

main27060-31010i1GRFE..GRN21#¥122,000200508-200908

12V 80A

sub27060-31011¥123,000

main27060-67110i1KZTE..KZN215¥117,000200211-200508

12V 70A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KZTE..KZN215¥260200211-200508

main91642-81065i1GRFE..GRN21#..5FC¥180200211-200508

main91642-81065i1GRFE..GRN21#¥180200508

main91642-81065i1GRFE..GRN21#¥180200211-200408

27330ROTOR ASSY, ALTERNATOR

main27330-30130i1GRFE..GRN21#200904-200908

main27330-62220i1GRFE..GRN21#200211-200508

sub27330-30130

main27330-62220i1GRFE..GRN21#200508-200904

sub27330-30130

main27330-67100i1KZTE..KZN215200211-200508

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1GRFE..GRN21#..5FC200211-200508

main27357-22200i1GRFE..GRN21#200211-200408

main27357-22200i1GRFE..GRN21#200508-200908

main27357-67100i1KZTE..KZN215200211-200508

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i1KZTE..KZN215200211-200508

main27370-75060i1GRFE..GRN21#200508-200908

main27370-75060i1GRFE..GRN21#200211-200508

27411PULLEY, ALTERNATOR

main27411-31200i1GRFE..GRN21#200211-200408

sub27411-31551

main27411-31200i1GRFE..GRN21#..5FC200211-200508

sub27411-31551

main27411-31200i1GRFE..GRN21#200508-200908

sub27411-31551

main27411-67020i1KZTE..KZN215200211-200508

27700AREGULATOR ASSY, GENERATOR

main27700-31040i1GRFE..GRN21#¥19,500200211-200408

main27700-31040i1GRFE..GRN21#..5FC¥19,500200211-200508

main27700-31040i1GRFE..GRN21#¥19,500200508-200908

main27700-50030i1KZTE..KZN215¥16,200200211-200508

9010506220

main90105-06220¥100

91511B0835

main91511-B0835¥160

91511J0820

main91511-J0820¥130

9415080600

main94150-80600¥60

13 parts on this diagram · 2 diagrams in section
