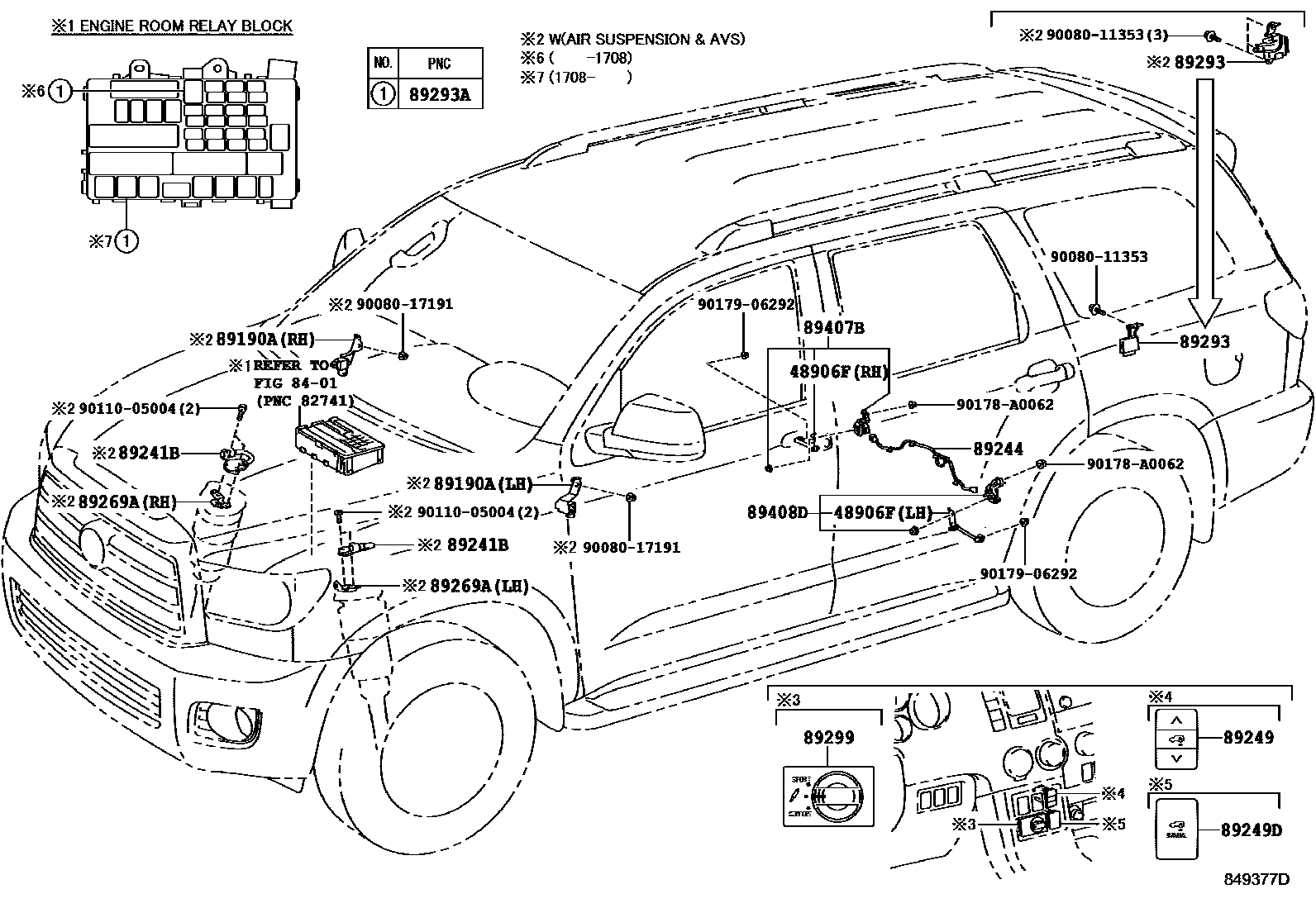

ELECTRONIC MODULATED SUSPENSION

48906FLINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR

main48906-34020iUSK6#..PLAT200711-201709

RH

main48906-34030iUSK6#..PLAT200711-201709

LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-34010iUSK6#..PLAT200711-201106

LH

sub89190-34030

main89190-34020iUSK6#..PLAT200711-201106

RH

sub89190-34040

main89190-34030iUSK6#..PLAT201107-201708

LH

main89190-34040iUSK6#..PLAT201107-201709

RH

main89190-34050iUSK65..PLAT..HTWCF201708-201709

LH

89241BACTUATOR, ABSORBER CONTROL

main89241-34010iUSK6#..PLAT200711-201709

89244WIRE, ABSORBER CONTROL, REAR

main89244-0C010iUSK6#..PLAT200711-201709

89249SWITCH, ABSORBER CONTROL

main89249-0C030iUSK6#..PLAT200711-201708

89249DSWITCH, ABSORBER CONTROL NO.2

main89249-0C040iUSK6#..PLAT200711-201502

sub89249-0C041

main89249-0C041iUSK6#..PLAT201503-201708

89269ABRACKET, SUSPENSION CONTROL

main89269-34010iUSK65..PLAT..HTWCF200711-201709

RH

main89269-34020iUSK6#..PLAT..HTWC200711-201709

LH

89293COMPUTER, SUSPENSION CONTROL

main89293-34030iUSK6#..PLAT200711-200807

sub89293-34031

main89293-34031iUSK6#..PLAT200808-201107

main89293-34050iUSK6#..PLAT201107-201508

main89293-34051iUSK6#..PLAT201508-201708

main89293-34052iUSK65..PLAT..HTWCF201708-201709

89293ARELAY, SUSPENSION CONTROL

main90080-87024iUSK6#..PLAT200711-201708

89299SWITCH, SUSPENSION CONTROL

main89299-0C010iUSK6#..PLAT200711-201708

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-34020iUSK6#..PLAT200711-201708

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-34030iUSK6#..PLAT200711-201709

9008011353

main90080-11353

9008017191

main90080-17191

9011005004

main90110-05004

90178A0062

main90178-A0062

9017906292

main90179-06292

18 parts on this diagram · 1 diagram in section
