METER

0001 1METER 0002 1CLOCK 0003 1

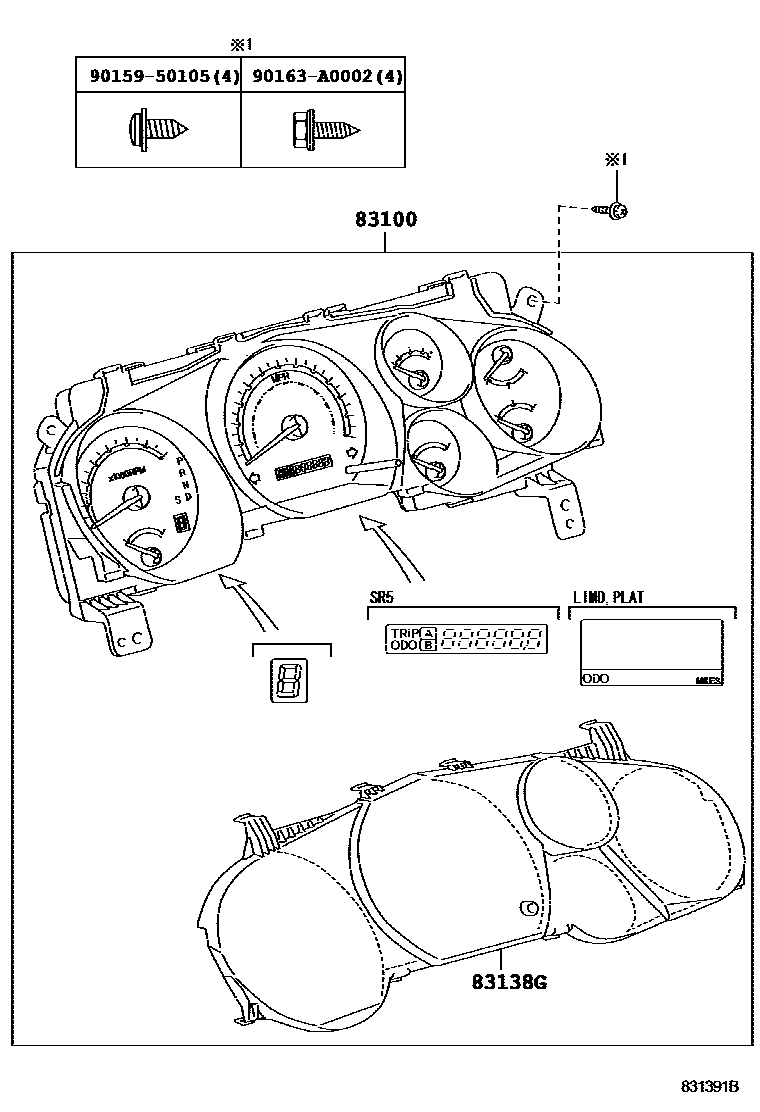

83100METER ASSY, COMBINATION

main83800-0C670iUCK6#..SR5200711-200808

main83800-0C700iUCK6#..LIMD200711-200808

main83800-0C730iUSK6#..SR5200711-200808

main83800-0C760iUSK6#..LIMD,PLAT200711-200808

main83800-0CB40iUCK6#..SR5200808-200904

main83800-0CB70iUCK6#..LIMD200808-200904

main83800-0CC20iUSK6#..SR5200808-200903

sub83800-0CC21

main83800-0CC40iUSK6#..LIMD,PLAT200808-200903

sub83800-0CC41

main83800-0CC71iUSK6#..PLAT200904-200908

REAR SUSPENSION-AIR SUSPENSION

sub83800-0CC72

main83800-0CC72iUSK6#..PLAT200909-201008

main83800-0CG80iUPK6#,USK6#..SR5200904-200908

sub83800-0CG81

main83800-0CG81iUPK6#,USK6#..SR5200909-201008

main83800-0CG90iUPK6#,USK6#..LIMD200904-200908

sub83800-0CG91

main83800-0CG91iUPK6#,USK6#..LIMD200909-201008

main83800-0CJ30iUSK6#..PLAT201008-201107

main83800-0CJ31iUSK6#..PLAT..HTWC201107-201408

main83800-0CJ70iUSK6#..SR5201008-201107

TOWING PACKAGE-WITH

main83800-0CJ71iUPK6#..SR5201107-201208

main83800-0CJ80iUSK6#..SR5201008-201107

main83800-0CJ81iUSK6#..SR5..HTWC201107-201408

main83800-0CJ90iUPK6#,USK6#..LIMD201008-201107

main83800-0CJ91iUPK6#..LIMD201107-201408

main83800-0CK00iUSK65..SR5..HTWCF201308-201408

main83800-0CK10iUSK65..SR5..HTWCF201107-201308

main83800-0CK20iUSK65..PLAT..HTWCF201107-201408

main83800-0CK30iUSK65..LIMD..HTWCF201107-201408

main83800-0CL60iUSK6#..PLAT..HTWC201408-201708

main83800-0CQ00iUSK6#..SR5..HTWC201408-201708

main83800-0CQ10iUSK6#..LIMD..HTWC201408-201708

main83800-0CQ40iUSK65..SR5..HTWCF201408-201708

main83800-0CQ50iUSK65..PLAT..HTWCF201408-201708

main83800-0CQ60iUSK65..LIMD..HTWCF201408-201708

main83800-0CU70iUSK6#..(LIMD,PLAT)..HTWC201708-201908

YAZAKI

main83800-0CU71iUSK6#201908

YAZAKI

main83800-0CU80iUSK65..(LIMD,PLAT)..HTWCF201708-201709

YAZAKI,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main83800-0CU80iUSK65..(LIMD,PLAT)..HTWCF201708-201709

YAZAKI

main83800-0CV00iUSK6#..SR5..HTWC201708-201801

YAZAKI

main83800-0CV10iUSK65..SR5..HTWCF201708-201709

YAZAKI

83138GGLASS, COMBINATION METER

main83852-0C880iUPK6#,USK6#..LIMD200711-201708

main83852-0C890iUPK60..SR5201008-201208

MEXICO SPEC&TOWING PACKAGE-WITHOUT

main83852-0C890iUSK65..SR5..HTWCF200711-201708

main83852-0CU70iUSK6#201708

9015950105

main90159-50105

90163A0002

main90163-A0002

4 parts on this diagram · 3 diagrams in section
