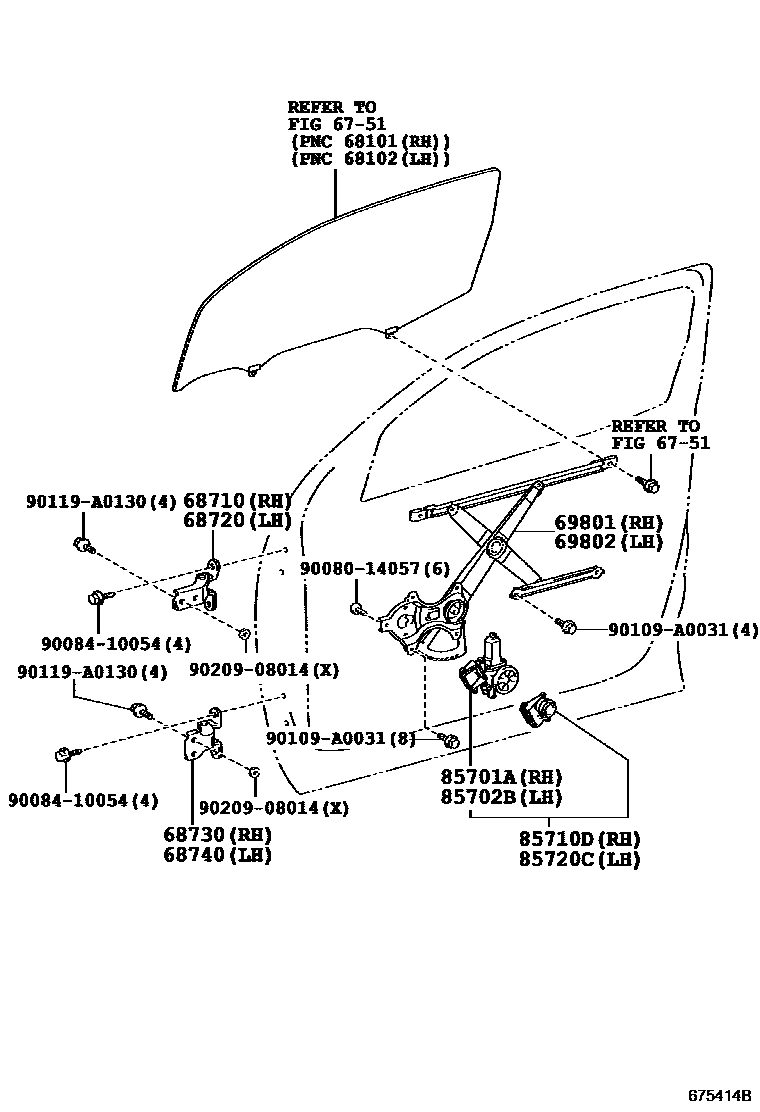

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iUCK6#200711-201709

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iUCK6#200711-201709

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iUCK6#200711-201709

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iUCK6#200711-201709

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0C030iUCK6#200711-201709

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0C030iUCK6#200711-201709

85701AMOTOR SUB-ASSY, POWER WINDOW REGULATOR, RH

main85701-0C010iUCK6#200711-201709

85702BMOTOR SUB-ASSY, POWER WINDOW REGULATOR, LH

main85702-06010iUCK6#200711-201709

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0C100iUCK6#,USK6#200711-200712

sub85710-0C101

main85710-0C101iUCK6#200801-201709

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0C030iUCK6#,USK6#200711-200712

sub85720-0C031

main85720-0C031iUCK6#200801-201709

9008014057

main90080-14057

9008410054

main90084-10054

90109A0031

main90109-A0031

90119A0130

main90119-A0130

9020908014

main90209-08014

16 parts on this diagram · 1 diagram in section
