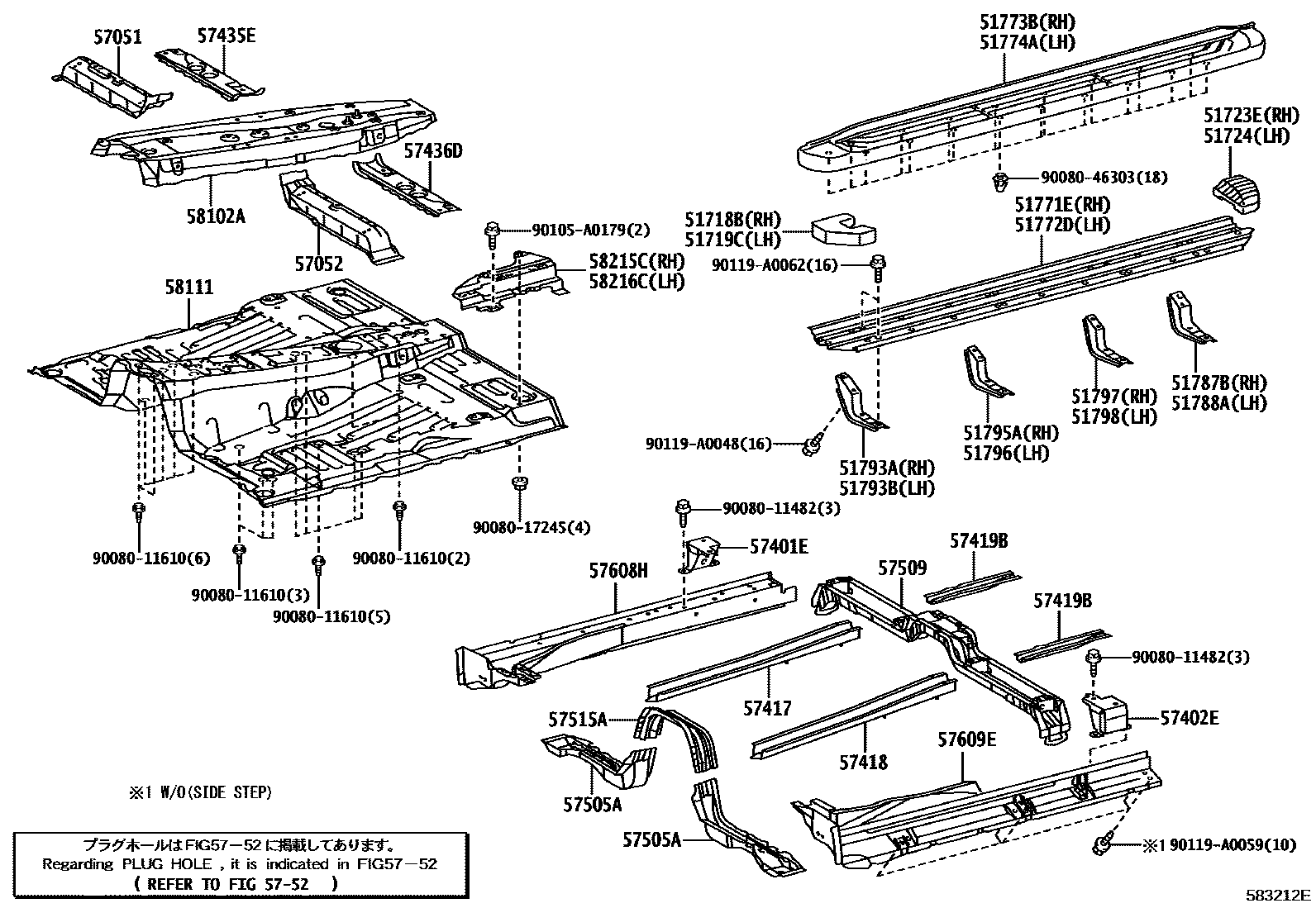

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51718BPROTECTOR, STEP COVER, RH

main51718-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51718-0C020iUSK6#..LIMD,PLAT200711-201708

main51718-0C020iUPK6#,USK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

main51718-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51719CPROTECTOR, STEP COVER, LH

main51719-0C020iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51719-0C020iUPK6#..LIMD200711-201708

main51719-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51719-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51723ESPACER, STEP ARM, RH

main51723-0C030iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51723-0C030iUPK6#..LIMD200711-201708

main51723-0C030iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51723-0C030iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51724SPACER, STEP ARM, LH

main51724-0C030iUSK6#200711-201708

main51724-0C030iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51724-0C030iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51724-0C030iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51771EPLATE, STEP, RH

main51771-0C040iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51771-0C040iUPK6#..LIMD200711-201708

main51771-0C040iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51771-0C040iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51772DPLATE, STEP, LH

main51772-0C040iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51772-0C040iUPK6#..LIMD200711-201708

main51772-0C040iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51772-0C040iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH

main51773-0C050iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

main51773-0C050iUSK6#..SR5201708

main51773-0C050iUSK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51773-0C050iUSK6#..LIMD202009

NIGHTSHADE PACKAGE

main51773-0C903iUPK6#,USK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

sub51773-0C904

main51773-0C904iUSK6#..LIMD,PLAT201008-201708

51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH

main51774-0C040iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

main51774-0C040iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51774-0C040iUSK6#..SR5201708

main51774-0C040iUSK6#..LIMD202009

NIGHTSHADE PACKAGE

main51774-0C901iUCK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

sub51774-0C902

main51774-0C902iUSK6#..LIMD,PLAT201008-201708

51787BREINFORCEMENT, STEP COVER

main51787-0C010iUCK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

main51787-0C010iUPK6#..LIMD200711-201708

main51787-0C010iUSK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51787-0C010iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51788AREINFORCEMENT, STEP COVER, LH

main51788-0C010iUSK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51788-0C010iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51788-0C010iUPK6#..LIMD200711-201708

main51788-0C010iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51793ABRACKET, SIDE STEP, NO.1 RH

main51793-0C020iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51793-0C020iUPK6#..LIMD200711-201708

main51793-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51793-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51793BBRACKET, SIDE STEP, NO.1, LH

main51793-0C020iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51793-0C020iUPK6#..LIMD200711-201708

main51793-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51793-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51795ABRACKET, SIDE STEP, NO.2 RH

main51795-0C020iUCK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

main51795-0C020iUPK6#..LIMD200711-201708

main51795-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51795-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51796BRACKET, SIDE STEP, NO.2 LH

main51795-0C020iUCK6#..SR5200711-201008

STEP & STEP COVER-WITH(COLORED)

main51795-0C020iUPK6#..LIMD200711-201708

main51795-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51795-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51797BRACKET, SIDE STEP, NO.3 RH

main51797-0C020iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51797-0C020iUPK6#..LIMD200711-201708

main51797-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51797-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

51798BRACKET, SIDE STEP, NO.3 LH

main51797-0C020iUCK6#..LIMD200711-201008

STEP & STEP COVER-WITH(COLORED)

main51797-0C020iUPK6#..LIMD200711-201708

main51797-0C020iUPK6#..SR5201008-201708

STEP & STEP COVER-WITH(UNPAINTED(BLACK))

main51797-0C020iUSK65..SR5..HTWC201708-202112

TRD PRO PACKAGE

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0C010iUCK6#200711-201709

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0C010iUCK6#200711-201709

57401EMEMBER ASSY, FLOOR SIDE, RH

main57410-0C010iUCK6#200711-201008

sub57410-0C020

main57410-0C020iUPK6#201008-201709

57402EMEMBER ASSY, FLOOR SIDE, LH

main57420-0C010iUCK6#200711-201008

sub57420-0C020

main57420-0C020iUPK6#201008-201709

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0C020iUCK6#200711-201709

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0C020iUCK6#200711-201709

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-0C020iUPK6#200711-201709

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-0C020iUSK6#200711-201709

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-0C020iUSK6#200711-201709

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0C050iUCK6#200711-201709

RH

main57506-0C010iUSK6#200711-201709

LH

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-0C020iUCK6#200711-201709

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-0C040iUCK6#200711-201709

5752

57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-0C010iUPK6#200711-201709

57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-0C010iUCK6#200711-201709

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0C020iUCK6#,USK6#200711-200903

sub58102-0C021

main58102-0C021iUPK6#200904-201708

main58102-0C022iUSK65..HTWCF201708-201709

58111PAN, FRONT FLOOR

main58111-0C170iUCK6#200711-200905

main58111-0C180iUPK6#200906-201709

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-0C011iUCK6#,USK6#200711-200807

main58215-0C012iUCK6#200808-201709

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-0C011iUCK6#,USK6#200711-200807

main58216-0C012iUCK6#200808-201709

9008011482

main90080-11482

9008011610

main90080-11610

9008017245

main90080-17245

9008046303

main90080-46303

90105A0179

main90105-A0179

90119A0048

main90119-A0048

90119A0059

main90119-A0059

90119A0062

main90119-A0062

43 parts on this diagram · 1 diagram in section
