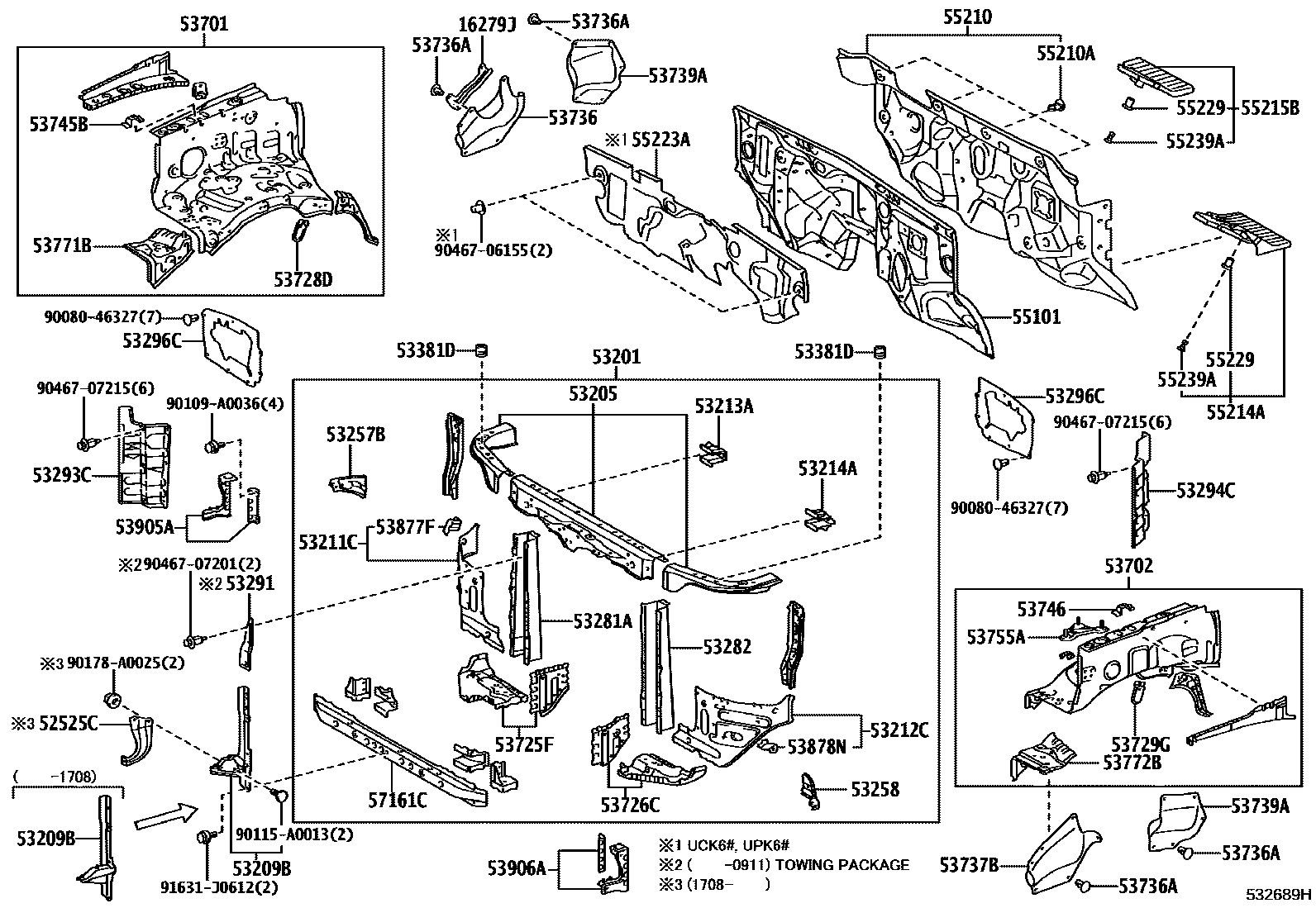

FRONT FENDER APRON & DASH PANEL
16279JPROTECTOR, HOSE
52525CRETAINER, REAR BUMPER, LOWER CENTER
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53281AREINFORCEMENT, FRONT BODY MOUNTING, RH
53282REINFORCEMENT, FRONT BODY MOUNTING, LH
53291SEAL, RADIATOR SUPPORT TO FRAME, RH
main53298-0C020
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53381DBUMPER, HOOD TO FRONT SHROUD
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53725FAPRON, FRONT FENDER NO.2 SIDE, RH
53726CAPRON, FRONT FENDER NO.2 SIDE, LH
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53737BSEAL, FRONT FENDER APRON, LH
53739ASEAL, FRONT FENDER APRON, REAR LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53771BSUPPORT, BATTERY CARRIER, RH
53772BSUPPORT, BATTERY CARRIER, LH
53877FBRACKET, FRONT FENDER LINER, RH
53878NBRACKET, FRONT FENDER LINER, LH
53905ASUPPORT SUB-ASSY, FRONT END PANEL, RH
53906ASUPPORT SUB-ASSY, FRONT END PANEL, LH
55210ACLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
9008046327
main90080-46327
90109A0036
main90109-A0036
90115A0013
main90115-A0013
90178A0025
main90178-A0025
9046706155
main90467-06155
9046707201
main90467-07201
9046707215
main90467-07215
91631J0612
main91631-J0612
54 parts on this diagram · 1 diagram in section
