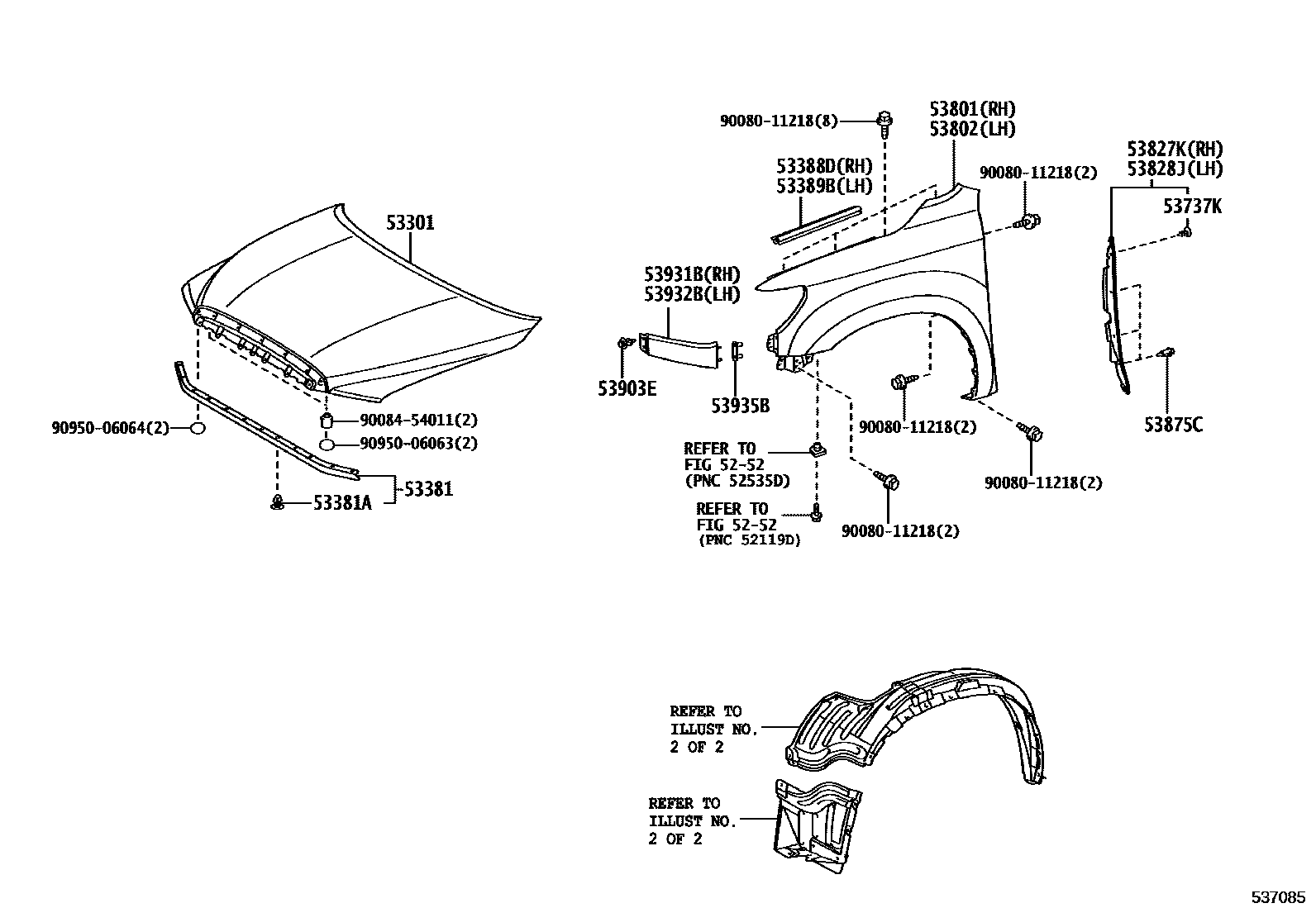

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

5252

53301HOOD SUB-ASSY

main53301-0C030iUSK6#201002-201708

main53301-0C040iUCK6#200711-201002

sub53301-0C030

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0C020iUSK6#..HTWC200711-201709

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSK6#..HTWC200711-201709

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0C020iUCK6#200711-201709

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0C010iUCK6#200711-201709

53737KCLIP(FOR FRONT FENDER APRON SEAL)

main90467-08186-C0iUCK6#,UPK6#,USK6#200711-201610

BLACK

sub90467-08186

main90467-08186-C3iUSK6#201610-201709

BLACK

sub90467-08186

53801FENDER SUB-ASSY, FRONT RH

main53801-0C230iUSK6#201002-201709

sub53801-0C240

main53801-0C240iUCK6#200711-201002

sub53801-0C230

53802FENDER SUB-ASSY, FRONT LH

main53802-0C170iUSK65..HTWCF201002-201709

main53802-0C200iUPK6#,USK6#200711-201002

sub53802-0C170

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0C010iUCK6#200711-201709

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0C010iUCK6#200711-201709

53875CCLIP, FRONT FENDER LINER

main90467-05138iUCK6#,UPK6#,USK6#200711-201708

main90467-A0016-C0iUCK6#,UPK6#,USK6#200711-201706

BLACK

main90467-A0016-C3iUSK6#201706-201708

BLACK

53903ECLIP, FRONT END PANEL

main90467-07201iUCK6#,UPK6#,USK6#200711-201708

main90467-07220iUSK6#..HTWC201708-201709

53931BPANEL, FRONT END, RH

main53931-0C901iUSK6#..LIMD,SR5200711-201708

main53931-0C902iUSK6#..PLAT200711-201708

HEADLAMP CLEANER-WITH

main53931-0C904iUSK6#201708

53932BPANEL, FRONT END, LH

main53932-0C901iUCK6#200711-201708

main53932-0C902iUCK6#200711-201708

HEADLAMP CLEANER-WITH

main53932-0C904iUSK6#201708

53935BPROTECTOR, FRONT END PANEL

main53935-0C010iUCK6#200711-201709

9008011218

main90080-11218

9008454011

main90084-54011

9095006063

main90950-06063

9095006064

main90950-06064

20 parts on this diagram · 2 diagrams in section
