REAR BUMPER & BUMPER STAY

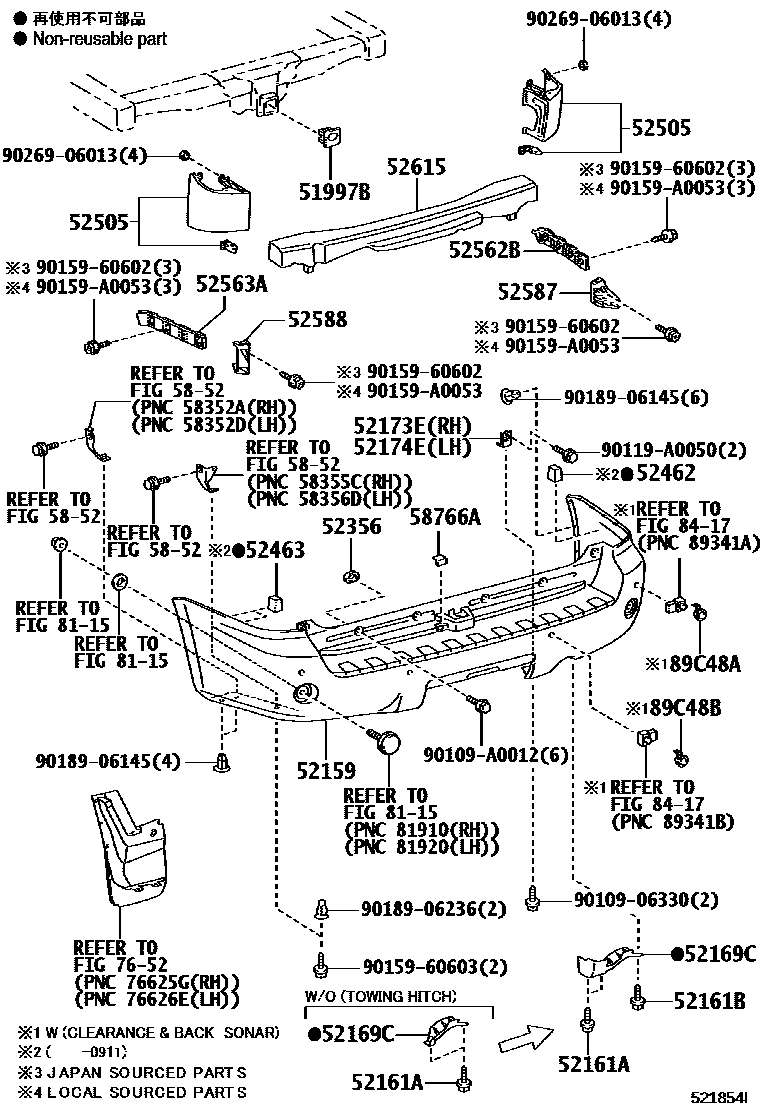

Parts diagram
51997BCAP, RECEIVER HITCH
main51997-0C040i200711-201708
52159COVER, REAR BUMPER
main52159-0C905i200711-201002
PAINT REQ.
sub52159-0C909
main52159-0C905i200711-201002
PAINT REQ.,TOWING HITCH-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
sub52159-0C909
main52159-0C905i200711-201002
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
sub52159-0C909
main52159-0C906i200711-201002
PAINT REQ.
sub52159-0C910
main52159-0C909i201002-201408
PAINT REQ.,TOWING HITCH-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main52159-0C909i201002-201408
PAINT REQ.
main52159-0C909i201002-201408
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main52159-0C910i201002-201801
PAINT REQ.
main52159-0C911i201408-201708
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main52159-0C911i201408-201708
PAINT REQ.
main52159-0C911i201408-201708
PAINT REQ.,TOWING HITCH-WITHOUT&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52161APIECE, REAR BUMPER, RH
main52161-02020i200711-201708
52161BPIECE, REAR BUMPER
main52161-02020i200711-201708
52169CCOVER, REAR BUMPER, LOWER
main52169-0C020i200711-201708
NO PAINT REQ.
52173EBRACKET, REAR BUMPER BAR, RH
main52173-0C080i200711-201708
52174EBRACKET, REAR BUMPER BAR, LH
main52173-0C080i200711-201708
52356CUSHION, REAR BUMPER STEP
main52356-0C020i201301-201408
sub52356-60050
main52356-60050i200711-201708
52462PAD, REAR BUMPER, RH
main52462-0C010i200711-200911
52463PAD, REAR BUMPER, LH
main52462-0C010i200711-200911
52505FILLER SUB-ASSY, REAR BUMPER
main52505-0C010i200711-201709
RH
main52507-0C010i200711-201709
LH
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-0C010i200711-201708
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-0C010i200711-201708
52587RETAINER, REAR BUMPER END, RH
main52587-0C010i200711-201708
52588RETAINER, REAR BUMPER END, LH
main52588-0C010i200711-201708
52615ABSORBER, REAR BUMPER ENERGY
main52615-0C010i200711-201708
5852
58766ACOVER, JACK BOX HOLE
main58766-0C010i200711-201708
7652
8115
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-33060-A0i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040
sub89348-33060
main89348-33060-A0i200711-201408
SUPER WHITE 2,040
sub89348-33060
main89348-33060-A1i200711-200904
WHITE PEARL CS.,071
sub89348-33060
main89348-33060-A1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,071
sub89348-33060
main89348-33060-A2i200904-201408
WHITE PEARL CS.,070
sub89348-33060
main89348-33060-B1i200711-201408
SILVER ME.,1D6
sub89348-33060
main89348-33060-B1i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6
sub89348-33060
main89348-33060-B2i200711-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9
sub89348-33060
main89348-33060-B2i200711-201008
GRAY ME.,1F9
sub89348-33060
main89348-33060-B5i201008-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
sub89348-33060
main89348-33060-B5i201008-201408
GRAY ME.,1G3
sub89348-33060
main89348-33060-C0i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
sub89348-33060
main89348-33060-C0i200711-201408
BLACK,202
sub89348-33060
main89348-33060-D1i200711-201107
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7
sub89348-33060
main89348-33060-D1i200711-201107
DK RED MC,3Q7
sub89348-33060
main89348-33060-D7i201107-201408
BLACKISH RED MC.,3R0
sub89348-33060
main89348-33060-D7i201107-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0
sub89348-33060
main89348-33060-E1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2
sub89348-33060
main89348-33060-E1i200711-200904
BEIGE M. M.,4Q2
sub89348-33060
main89348-33060-E2i200711-201408
BRONZE M.M.,4T3
sub89348-33060
main89348-33060-E2i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3
sub89348-33060
main89348-33060-E7i200904-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8
sub89348-33060
main89348-33060-E7i200904-201408
BEIGE ME.,4T8
sub89348-33060
main89348-33060-G1i200711-200904
DK.GREEN M.M.,6T8
sub89348-33060
main89348-33060-G1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8
sub89348-33060
main89348-33060-G5i200904-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4
sub89348-33060
main89348-33060-G5i200904-201008
DK.GREEN MC.,6V4
sub89348-33060
main89348-33060-J2i200711-201008
DK.BLUE MC.,8S6
sub89348-33060
main89348-33060-J2i200711-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6
sub89348-33060
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-33040-A0i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040
sub89348-33040
main89348-33040-A0i200711-201408
SUPER WHITE 2,040
sub89348-33040
main89348-33040-A1i200711-200904
WHITE PEARL CS.,071
sub89348-33040
main89348-33040-A1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,071
sub89348-33040
main89348-33040-A2i200904-201408
WHITE PEARL CS.,070
sub89348-33040
main89348-33040-B1i200711-201408
SILVER ME.,1D6
sub89348-33040
main89348-33040-B1i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6
sub89348-33040
main89348-33040-B2i200711-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9
sub89348-33040
main89348-33040-B2i200711-201008
GRAY ME.,1F9
sub89348-33040
main89348-33040-B5i201008-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
sub89348-33040
main89348-33040-B5i201008-201408
GRAY ME.,1G3
sub89348-33040
main89348-33040-C0i200711-201408
BLACK,202
sub89348-33040
main89348-33040-C0i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
sub89348-33040
main89348-33040-D1i200711-201107
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7
sub89348-33040
main89348-33040-D1i200711-201107
DK RED MC,3Q7
sub89348-33040
main89348-33040-D6i201107-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0
sub89348-33040
main89348-33040-D6i201107-201408
BLACKISH RED MC.,3R0
sub89348-33040
main89348-33040-E1i200711-200904
BEIGE M. M.,4Q2
sub89348-33040
main89348-33040-E1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2
sub89348-33040
main89348-33040-E2i200711-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3
sub89348-33040
main89348-33040-E2i200711-201408
BRONZE M.M.,4T3
sub89348-33040
main89348-33040-E8i200904-201408
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8
sub89348-33040
main89348-33040-E8i200904-201408
BEIGE ME.,4T8
sub89348-33040
main89348-33040-G1i200711-200904
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8
sub89348-33040
main89348-33040-G1i200711-200904
DK.GREEN M.M.,6T8
sub89348-33040
main89348-33040-G6i200904-201008
DK.GREEN MC.,6V4
sub89348-33040
main89348-33040-G6i200904-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4
sub89348-33040
main89348-33040-J2i200711-201008
DK.BLUE MC.,8S6
sub89348-33040
main89348-33040-J2i200711-201008
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6
sub89348-33040
9010906330
main90109-06330
90109A0012
main90109-A0012
90119A0050
main90119-A0050
9015960602
main90159-60602
9015960603
main90159-60603
90159A0053
main90159-A0053
9018906145
main90189-06145
9018906236
main90189-06236
9026906013
main90269-06013

32 parts on this diagram · 1 diagram in section
