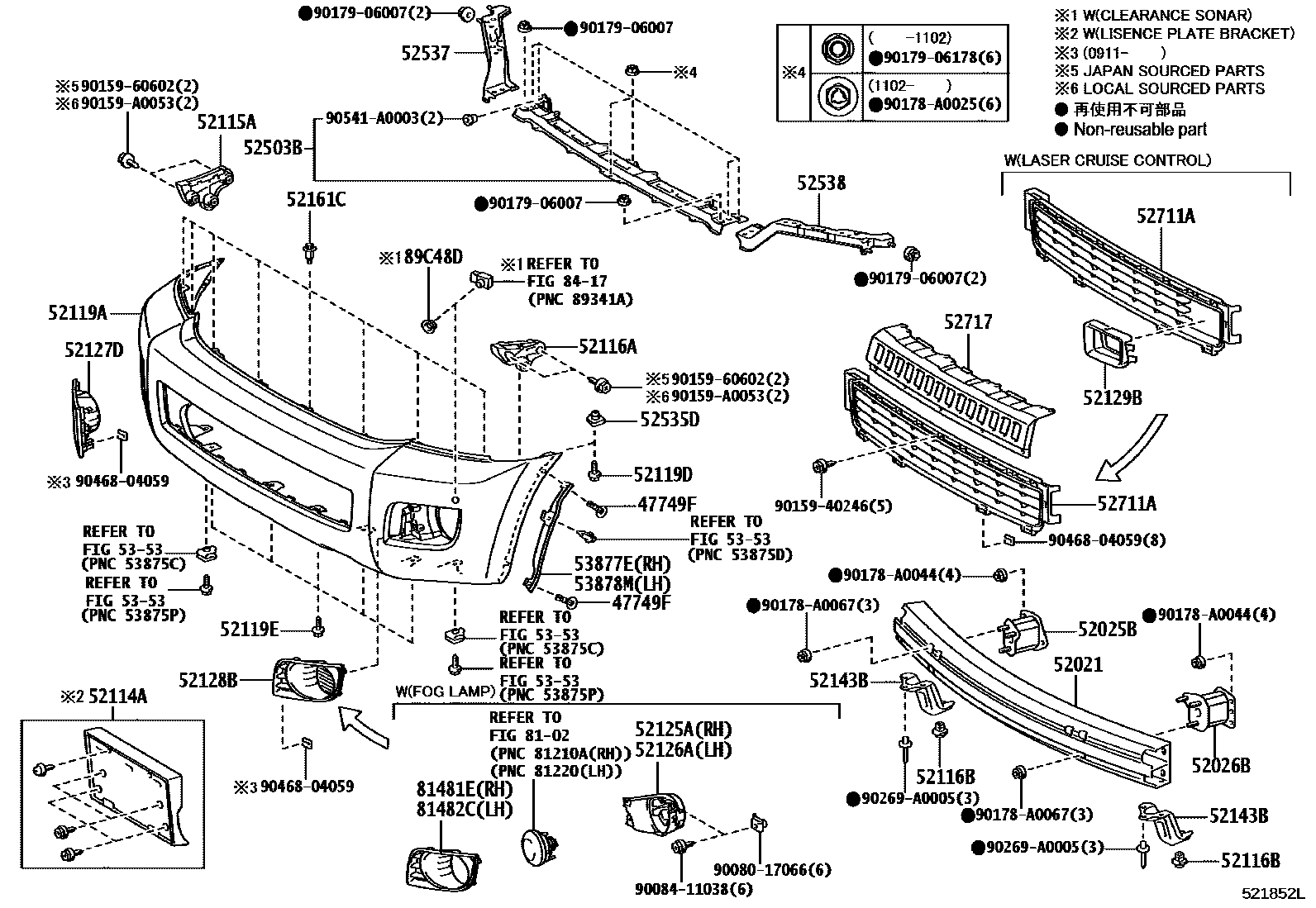

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116BRETAINER, FRONT BUMPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.,FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.
PAINT REQ.,FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52119DSCREW, NO.1
52119ESCREW, NO.2
52125ABRACKET, FOG LAMP MOUNTING, RH
FRONT FOG LAMP-WITH(CLEAR)
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52126ABRACKET, FOG LAMP MOUNTING, LH
FRONT FOG LAMP-WITH(CLEAR)
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
52129BCOVER, FRONT BUMPER, LOWER
52143BBRACKET, FRONT BUMPER SIDE
52161CPIECE, FRONT BUMPER
52503BRETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH
52535DRETAINER, FRONT BUMPER SIDE
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52711AGARNISH, FRONT BUMPER
52717RETAINER, FRONT BUMPER MOULDING
5353
53877EBRACKET, FRONT FENDER LINER, RH
53878MBRACKET, FRONT FENDER LINER, LH
8102
81481ECOVER, FOG LAMP, RH
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
sub81481-0C021
FRONT FOG LAMP-WITH(CLEAR)
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
81482CCOVER, FOG LAMP, LH
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
sub81482-0C021
FRONT FOG LAMP-WITH(CLEAR)
FRONT FOG LAMP-WITH(CLEAR)&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SUPER WHITE 2,040
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),WHITE PEARL CS.,071
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SILVER ME.,1D6
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1F9
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),GRAY ME.,1G3
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACK,202
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK RED MC,3Q7
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH RED MC.,3R0
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE M. M.,4Q2
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BRONZE M.M.,4T3
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BEIGE ME.,4T8
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN M.M.,6T8
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.GREEN MC.,6V4
sub89348-33060
CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK.BLUE MC.,8S6
sub89348-33060
9008017066
main90080-17066
9008411038
main90084-11038
9015940246
main90159-40246
9015960602
main90159-60602
90159A0053
main90159-A0053
90178A0025
main90178-A0025
90178A0044
main90178-A0044
90178A0067
main90178-A0067
9017906007
main90179-06007
9017906178
main90179-06178
90269A0005
main90269-A0005
9046804059
main90468-04059
90541A0003
main90541-A0003
45 parts on this diagram · 2 diagrams in section
