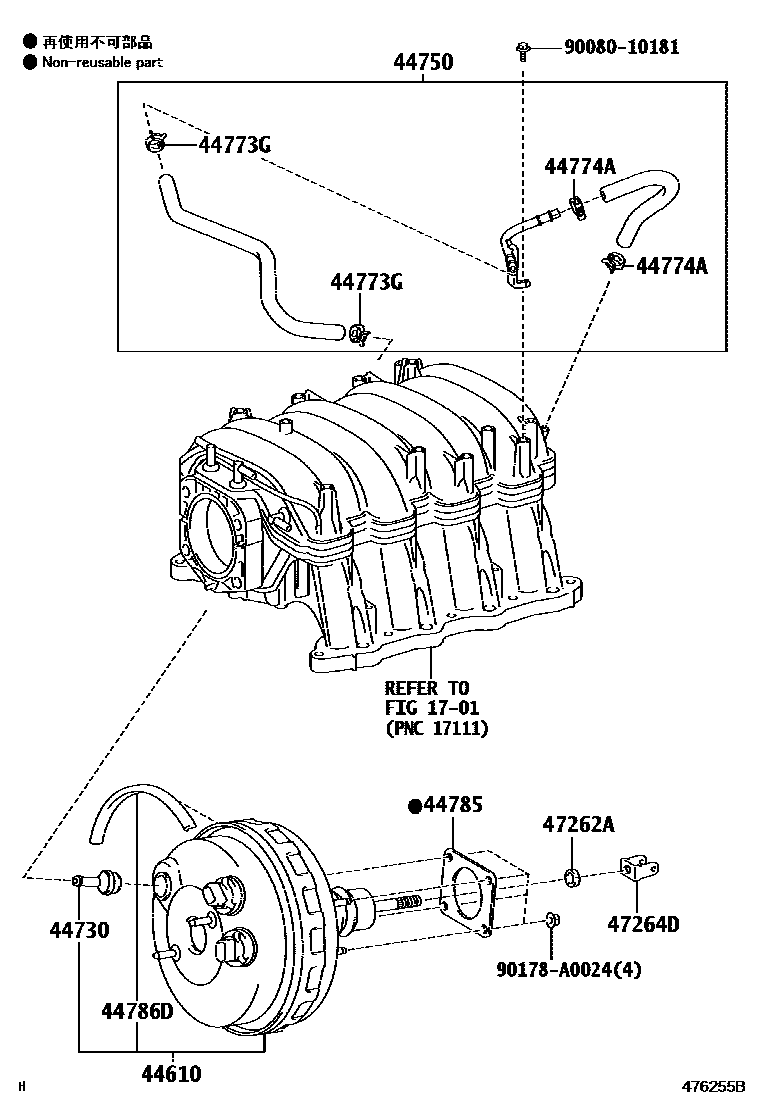

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0C090iUSK6#200711-200811

sub44610-0C091

main44610-0C091iUSK6#200812-201708

sub44610-0C092

main44610-0C100iUCK6#200711-200807

sub44610-0C101

main44610-0C101iUCK6#200808-200904

main44610-0C110iUSK6#201708-201808

sub44610-0C111

main44610-0C111iUSK6#201808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0C010iUSK6#200711-201807

main44730-60070iUSK6#201808

44750HOSE ASSY, VACUUM

main44750-0C091iUCK6#200711-200904

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iUSK6#201104-201709

main96133-41500iUPK6#,USK6#200711-201103

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0C030iUPK6#200711-201709

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iUSK6#..HTWC201104-201709

main96133-41500iUPK6#,USK6#200711-201103

44785GASKET, BRAKE BOOSTER

main44785-04020iUCK6#200711-201708

44786DPROTECTOR, BRAKE BOOSTER

main44786-34010iUCK6#200711-200904

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main94120-41000iUCK6#200711-201708

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iUSK6#201708

main47264-63020iUCK6#200711-201708

9008010181

main90080-10181

90178A0024

main90178-A0024

13 parts on this diagram · 2 diagrams in section
