DISC WHEEL & WHEEL CAP

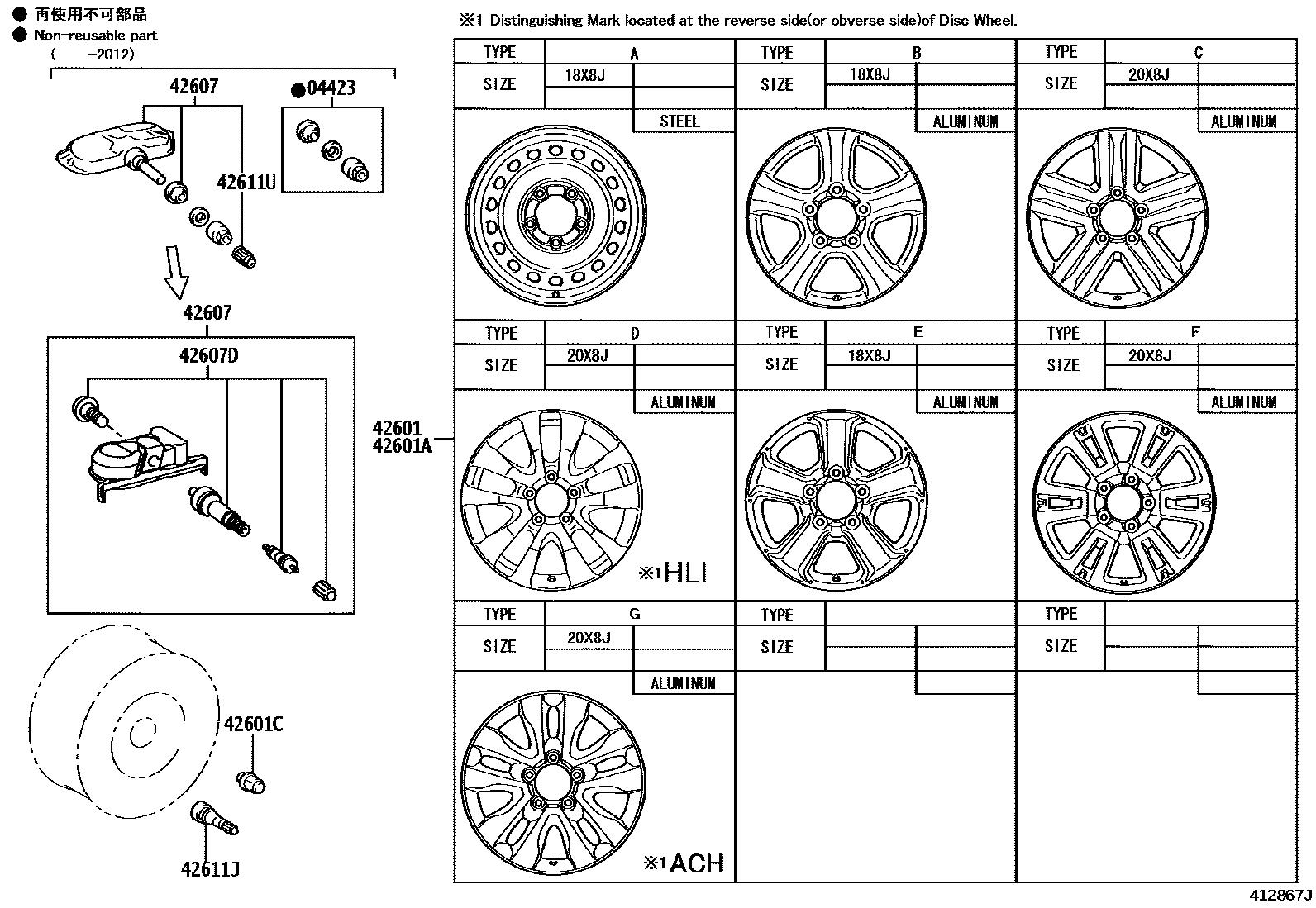

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-0C170i200711-201908
main04423-0E010i201908-202012
42601WHEEL, DISC
main42611-0C040i200711-200910
18X8J, #,TYPE B:REFER ILLUST.
sub42611-0C100
main42611-0C070i200910-201001
18X8J, #,TYPE B:REFER ILLUST.
sub42611-0C100
main42611-0C090i200711-201708
20X8J, #,TYPE D:REFER ILLUST.
main42611-0C100i201001-201708
18X8J, #,TYPE B:REFER ILLUST.
sub42611-0C040
main42611-0C160i201708-202011
18X8J, #,TYPE E:REFER ILLUST.
sub42611-0C161
main42611-0C161i202012
18X8J, #,TYPE E:REFER ILLUST.
main42611-0C230i201708-202011
20X8J, #,TYPE D:REFER ILLUST.
sub42611-0C231
main42611-0C231i202012
20X8J, #,TYPE D:REFER ILLUST.
main42611-0C240i201708-202011
20X8J, #,TYPE G:REFER ILLUST.
sub42611-0C241
main42611-0C241i202012
20X8J, #,TYPE G:REFER ILLUST.
main42611-0C250i201708-202011
20X8J, #,TYPE D:REFER ILLUST.
sub42611-0C251
main42611-0C251i202012
20X8J, #,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42601-0C060i200711-201708
18X8J,#,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01103i200711-201104
main90942-A1001i201105-201708
main90942-A1001i201708
TIRE & DISC WHEEL-P275/55R20, 8J, ALUMINUM
main90942-A1001i201708
TIRE & DISC WHEEL-P275/65R18, 8J, ALUMINUM
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-02050i202012
main42607-06030i201908-202012
main42607-08010i201002-201109
sub42607-0C070
main42607-0C050i200711-201001
sub42607-08010
main42607-0C070i201110-201708
main42607-0C091i201708-201908
42607DVALVE, TIRE PRESSURE MONITOR
main90942-A5005i202012
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-45006i200711-201708
42611UCAP, TIRE VALVE
main90942-A5002i201908-202012
main90942-A5004i200711-201908

8 parts on this diagram · 2 diagrams in section
