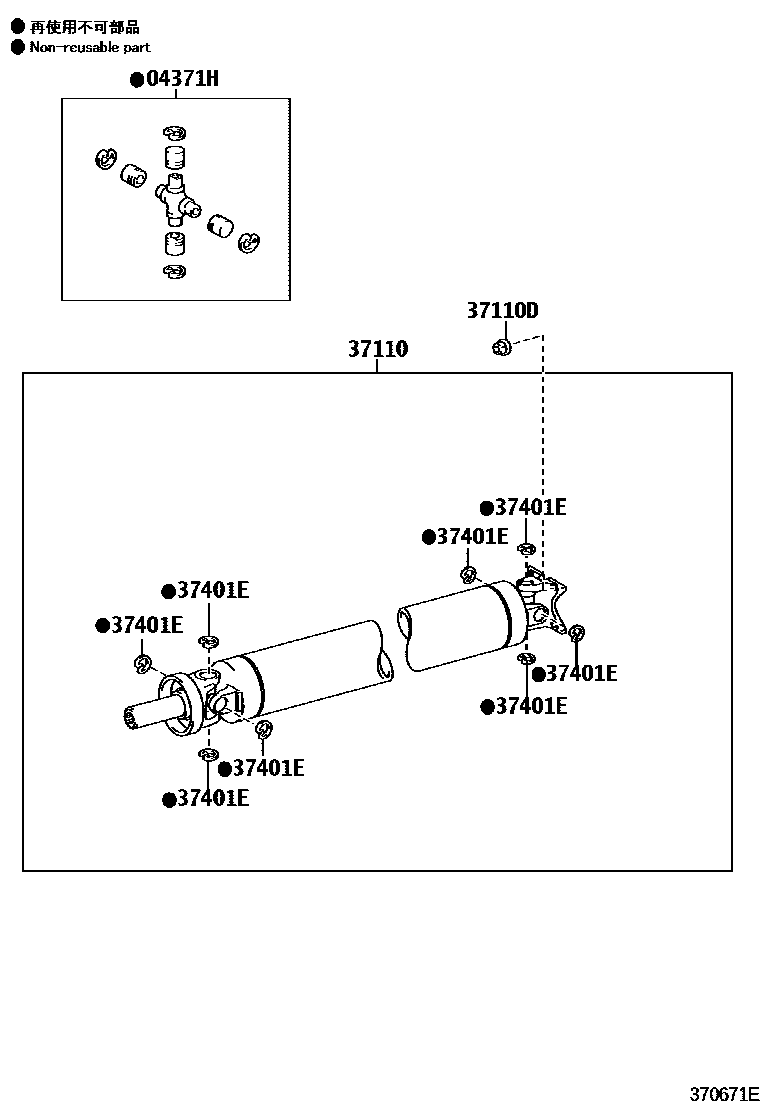

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1FRONT 0003 1REAR

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-0C080iUCK60,UPK60,USK60200711-201006

sub04371-0C081

main04371-0C081iUSK60201006-201208

sub04371-0C094

main04371-0C082iUPK65,USK65201107-201708

sub04371-0C084

main04371-0C084iUSK60201107-201708

main04371-0C090iUCK65,UPK65,USK65200711-201006

sub04371-0C093

main04371-0C093iUPK65,USK65201006-201107

sub04371-0C082

37110SHAFT ASSY, PROPELLER

main37110-0C130iUCK60200711-200904

main37110-0C140iUSK60200711-200808

sub37110-0C141

main37110-0C141iUSK60200809-201003

sub37110-0C142

main37110-0C142iUSK60201004-201006

sub37110-0C144

main37110-0C144iUSK60201006-201708

main37110-0C150iUCK65200711-200904

main37110-0C160iUPK65,USK65200711-201003

sub37110-0C161

main37110-0C161iUPK65,USK65201004-201006

sub37110-0C163

main37110-0C163iUPK65201006-201703

sub37110-0C164

main37110-0C164iUSK65..HTWCF201704-201709

main37110-0C190iUPK60200904-201003

sub37110-0C191

main37110-0C191iUPK60201004-201006

sub37110-0C193

main37110-0C193iUPK60201006-201208

37110DNUT (FOR PROPELLER SHAFT)

main90178-A0087iUCK60200711-201709

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90521-A0003iUPK65200711-201704

T=1.49

main90521-A0004iUCK65200711-201704

T=1.56

main90521-A0005iUPK65200711-201704

T=1.59

main90521-A0006iUCK65200711-201704

T=1.51

main90521-A0007iUPK60200711-201708

T=1.46,PURPLE

main90521-A0008iUCK60200711-201709

T=1.52,BLACK

main90521-A0009iUCK65200711-201708

T=1.59,YELLOW

main90521-A0010iUPK65200711-201709

T=1.64,BLUE

main90521-A0011iUSK60200711-201709

T=1.54,BLACK

main90521-A0012iUCK60200711-201708

T=1.57,BLACK

main90521-A0013iUSK65..HTWCF200711-201709

T=1.62,BLACK

main90521-A0014iUCK65200711-201709

T=1.49,BLACK

main90521-A0015iUCK65200711-201709

T=1.51,COPPER

main90521-A0016iUSK60200711-201709

T=1.56,SILVER

4 parts on this diagram · 3 diagrams in section
