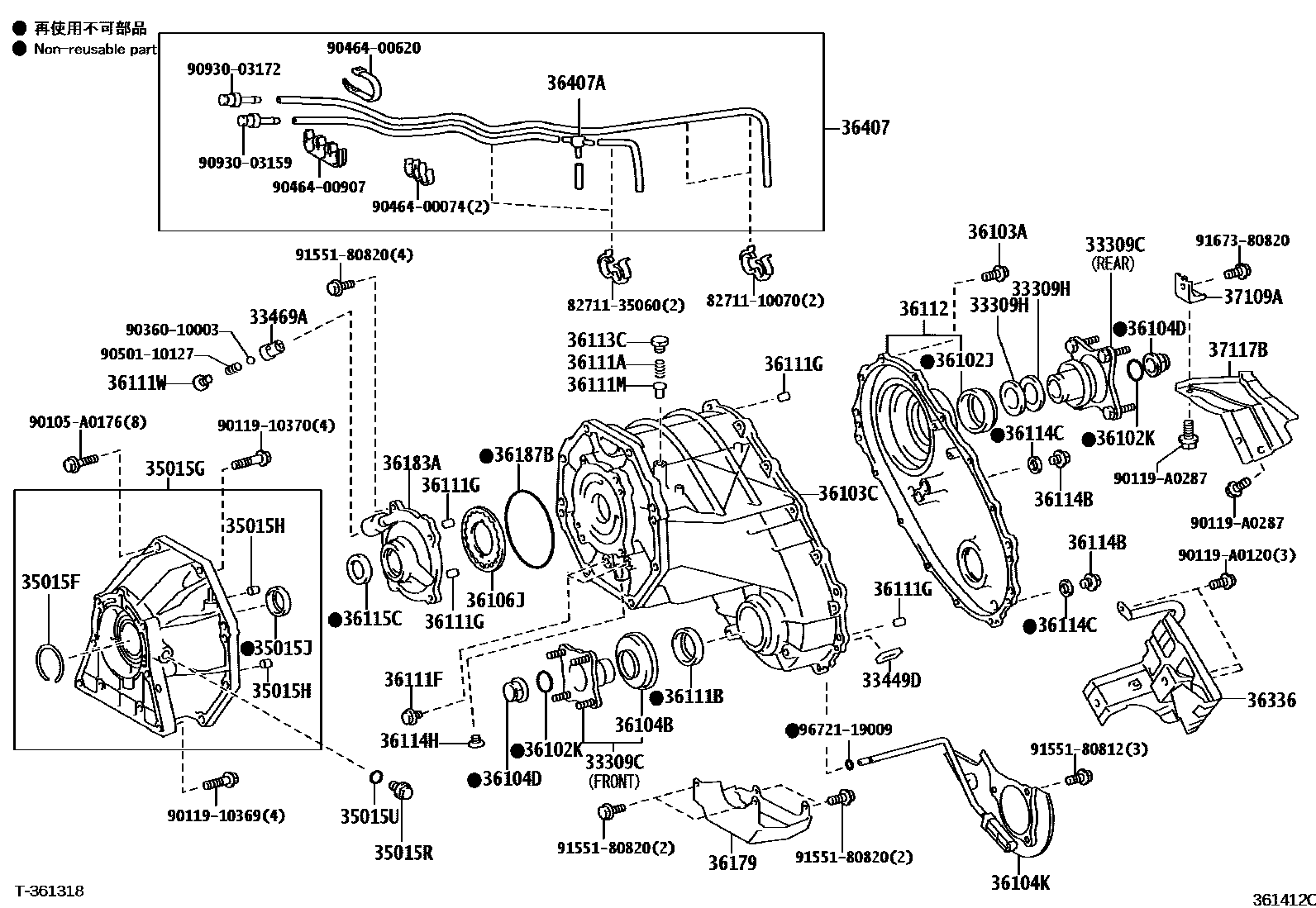

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34010iUPK65200711-201709

REAR

main33309-34020iUSK65..HTWC200711-201709

FRONT

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iUCK65200711-201709

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iUCK65200711-201709

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iUSK65200711-201709

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90520-A0045iUSK65..HTWC201403-201709

main90521-80004iUCK65200711-201402

35015GADAPTER, TRANSFER, REAR

main35015-0C030iUCK65200711-200904

main35015-0C040iUSK65..HTWCF200711-201709

main35015-0C050iUPK65200904-201208

sub35015-34010

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iUSK65..HTWCF200711-201709

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iUSK65200711-201709

sub90311-51010

35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUCK65200711-201208

35015URING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUCK65200711-201208

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iUCK65200711-202102

sub90311-50065

main90311-50065iUSK65202103

36102KRING, O

main90301-31003iUCK65200711-201709

36103ABOLT (FOR TRANSFER CASE)

main91551-00845iUCK65200711-201709

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-34030iUCK65200711-201905

sub36103-34H00

sub36103-34H30

sub36103-34H40

main36103-34031iUSK65201905

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iUCK65200711-201709

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011iUCK65200711-201709

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34030iUCK65200711-201709

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iUCK65200711-201709

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iUSK65..HTWC200711-201709

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iUPK65200711-201708

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iUCK65200711-201709

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iUCK65200711-201709

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iUCK65200711-201709

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iUCK65200711-201709

36112CASE, TRANSFER, REAR

main36104-34041iUCK65200711-201010

sub36103-34H30

main36104-34042iUPK65,USK65201010-201205

sub36103-34H40

main36104-34043iUPK65201205-201905

sub36103-34H00

main36104-34044iUSK65201905

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iUCK65200711-201709

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iUCK65200711-201709

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iUSK65..HTWCF200711-201709

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iUPK65200711-201709

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iUCK65200711-201709

36179PROTECTOR, TRANSFER CASE LOWER

main36179-34010iUCK65,UPK65,USK65200711-201204

sub36179-34011

main36179-34011iUPK65,USK65201205-201709

36183APLATE, TRANSFER OIL PUMP

main36183-34011iUCK65200711-201709

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iUSK65..HTWC200711-201709

36336INSULATOR, TRANSFER HEAT

main36336-0C010iUPK65200711-201709

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-34040iUCK65200711-200904

main36407-34050iUSK65200711-201709

main36407-34070iUPK65200904-201208

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iUPK65200711-201709

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-34010iUCK65,UPK65,USK65200711-201709

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-0C030iUCK65200711-201709

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

90105A0176

main90105-A0176

9011910369

main90119-10369

9011910370

main90119-10370

90119A0120

main90119-A0120

90119A0287

main90119-A0287

9036010003

main90360-10003

9046400074

main90464-00074

9046400620

main90464-00620

9046400907

main90464-00907

9050110127

main90501-10127

9093003159

main90930-03159

9093003172

main90930-03172

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9672119009

main96721-19009

56 parts on this diagram · 3 diagrams in section
