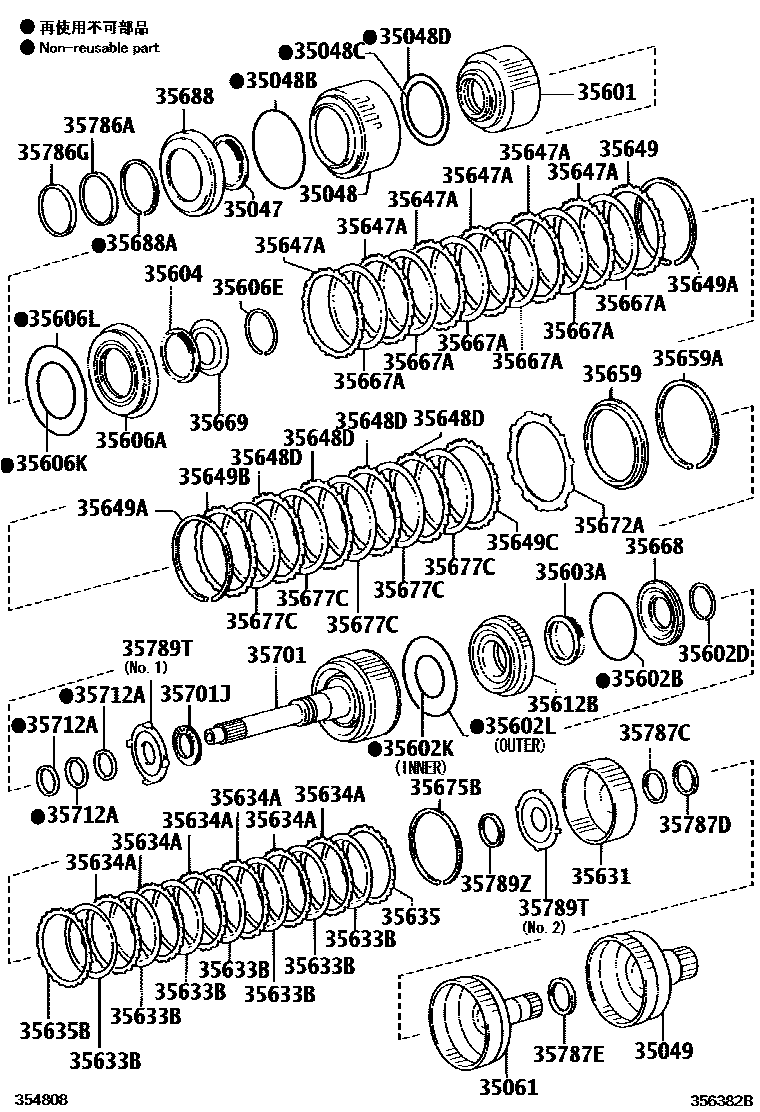

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35048CRING, O(FOR REVERSE CLUTCH PISTON INNER)
35048DRING, O(FOR DIRECT CLUTCH PISTON OUTER)
35061HUB SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35602KRING, O(FOR FORWARD CLUTCH PISTON INNER)
35602LRING, O(FOR FORWARD CLUTCH PISTON OUTER)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35606KRING, O(FOR DIRECT CLUTCH PISTON INNER)
35606LRING, O(FOR DIRECT CLUTCH PISTON OUTER)
35612BPISTON, FORWARD CLUTCH
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK A
T=4.0,MARK B
T=4.1,MARK C
35635BFLANGE, FORWARD CLUTCH
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 2,T=3.0
T=3.1,MARK 3,T=3.1
T=3.2,MARK 4,T=3.2
T=3.3,MARK 5,T=3.3
T=3.4,MARK 6,T=3.4
T=3.5,MARK 7,T=3.5
T=3.6,MARK 8,T=3.6
T=3.7,MARK 9,T=3.7
T=3.8,MARK A,T=3.8
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649BFLANGE, REVERSE CLUTCH
T=3.0,MARK 2
T=3.5 MARK C
35649CFLANGE, REVERSE CLUTCH
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1,MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
T=2.5 MARK 1
T=2.6 MARK 2
T=2.7 MARK 3
T=2.8 MARK 4
T=2.9 MARK 5
T=3.0 MARK 6
T=3.1 MARK 7
T=3.2 MARK 8
T=3.3 MARK A
T=3.4 MARK B
T=3.5 MARK C
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35668BALANCER, CLUTCH, NO.1
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35688BALANCER, CLUTCH, NO.3
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.2
NO.2
NO.1
NO.2
NO.1
35789ZBEARING, THRUST NEEDLE ROLLER
51 parts on this diagram · 3 diagrams in section
