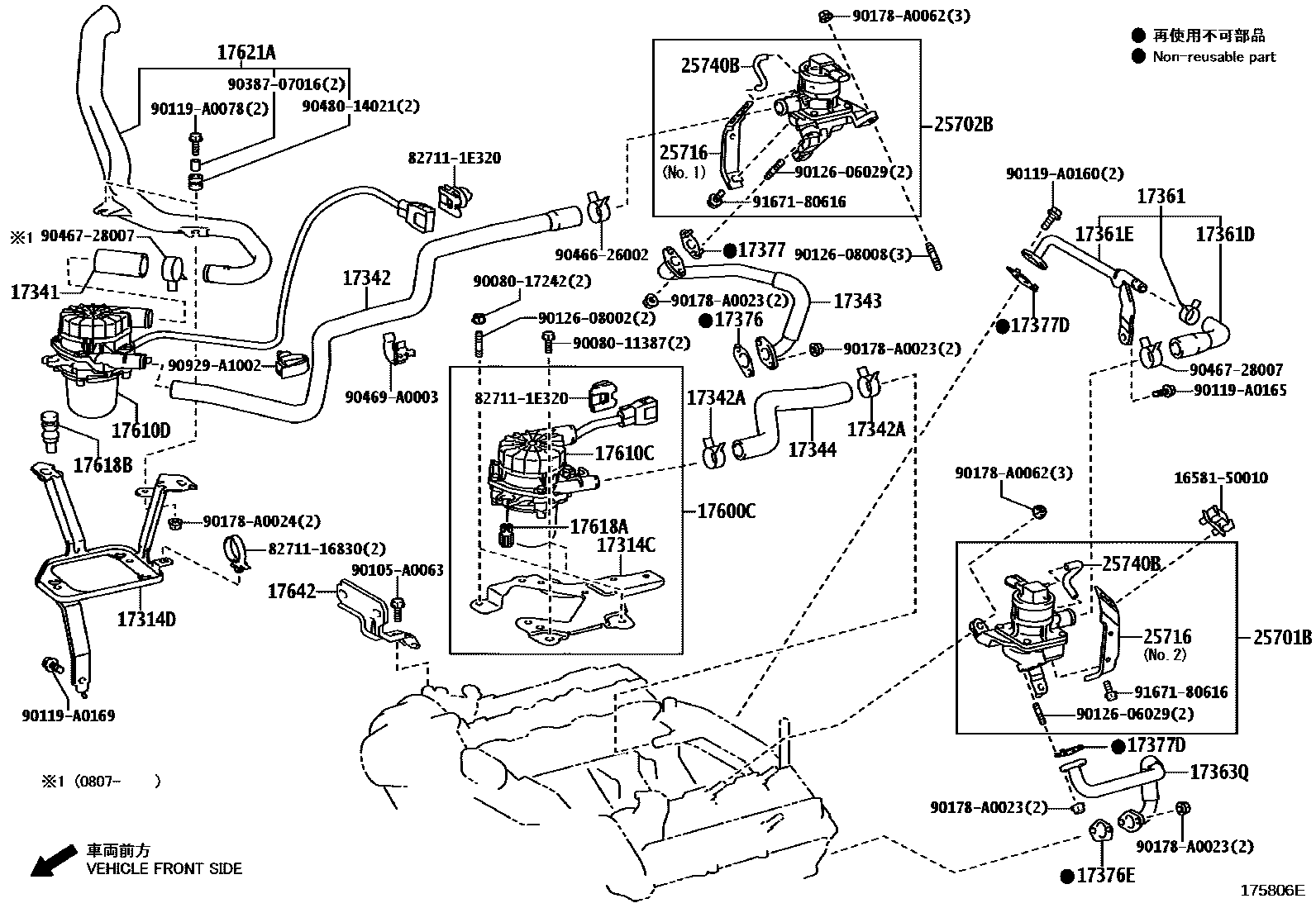

MANIFOLD AIR INJECTION SYSTEM
17314CBRACKET, AIR PUMP
17314DBRACKET, AIR PUMP, NO.1
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17361DHOSE, NO.2(FOR AIR TUBE)
17361EHOSE, NO.3(FOR AIR TUBE)
17363QTUBE, AIR, NO.3
(L)
(J)
17376GASKET, AIR TUBE, NO.1
17376EGASKET, AIR TUBE, NO.3
17377GASKET, AIR TUBE, NO.2
17377DGASKET, AIR TUBE, NO.5
17600CPUMP ASSY, AIR
17610CPUMP ASSY, AIR
17610DPUMP ASSY, AIR, NO.1
17618AINSULATOR, AIR PUMP
17618BINSULATOR, AIR PUMP, NO.1
17642BRACKET, AIR PUMP WIRE
25716BRACKET, AIR SWITCHING VALVE
NO.1
NO.2
25740BHOSE(FOR AIR CONTROL VALVE ASSY)
1658150010CLAMP, HOSE(FOR WATER HOSE)
main16581-50010
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9008011387
main90080-11387
9008017242
main90080-17242
90105A0063
main90105-A0063
90119A0078
main90119-A0078
90119A0160
main90119-A0160
90119A0165
main90119-A0165
90119A0169
main90119-A0169
9012606029
main90126-06029
9012608002
main90126-08002
9012608008
main90126-08008
90178A0023
main90178-A0023
90178A0024
main90178-A0024
90178A0062
main90178-A0062
9038707016
main90387-07016
9046626002
main90466-26002
9046728007
main90467-28007
90469A0003
main90469-A0003
9048014021
main90480-14021
90929A1002
main90929-A1002
9167180616
main91671-80616
49 parts on this diagram · 3 diagrams in section
