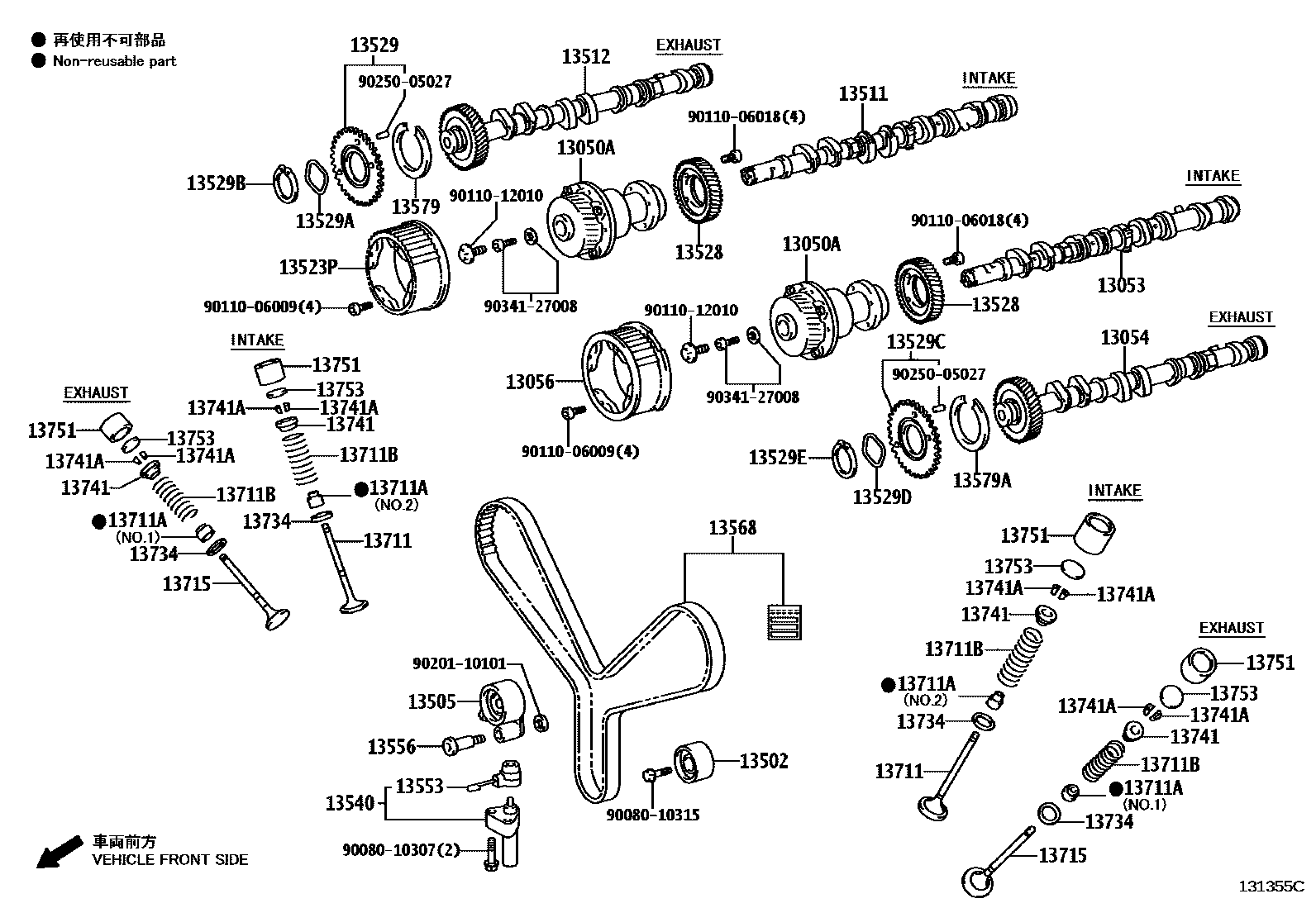

CAMSHAFT & VALVE
13050ATUBE ASSY, CAMSHAFT TIMING
13056PULLEY SUB-ASSY, CAMSHAFT TIMING, LH
(J)
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
(L),RH
(L),LH
(L),LH
(J),RH
(J),LH
(J),LH
13553COVER, CHAIN TENSIONER DUST
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13711VALVE, INTAKE
(L)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
(L),NO.1
(L),NO.2
NO.1,(J)
NO.2,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
PNC 13801=TYPE B
(L)
13715VALVE, EXHAUST
(L)
(J)
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.020,MARK 02
T=2.040,MARK 04
T=2.060,MARK 06
T=2.080,MARK 08
T=2.100,MARK 10
T=2.120,MARK 12
T=2.140,MARK 14
T=2.160,MARK 16
T=2.180,MARK 18
T=2.200,MARK 20
T=2.220,MARK 22
T=2.240,MARK 24
T=2.260,MARK 26
T=2.280,MARK 28
T=2.300,MARK 30
T=2.320,MARK 32
T=2.340,MARK 34
T=2.360,MARK 36
T=2.380,MARK 38
T=2.400,MARK 40
T=2.420,MARK 42
T=2.440,MARK 44
T=2.460,MARK 46
T=2.480,MARK 48
T=2.500,MARK 50
T=2.520,MARK 52
T=2.540,MARK 54
T=2.560,MARK 56
T=2.580,MARK 58
T=2.600,MARK 60
T=2.620,MARK 62
T=2.640,MARK 64
T=2.660,MARK 66
T=2.680,MARK 68
T=2.700,MARK 70
T=2.720,MARK 72
T=2.740,MARK 74
T=2.760,MARK 76
T=2.780,MARK 78
T=2.800,MARK 80
9008010307
main90080-10307
9008010315
main90080-10315
9011006009
main90110-06009
9011006018
main90110-06018
9011012010
main90110-12010
9020110101
main90201-10101
9025005027
main90250-05027
9034127008
main90341-27008
40 parts on this diagram · 2 diagrams in section
