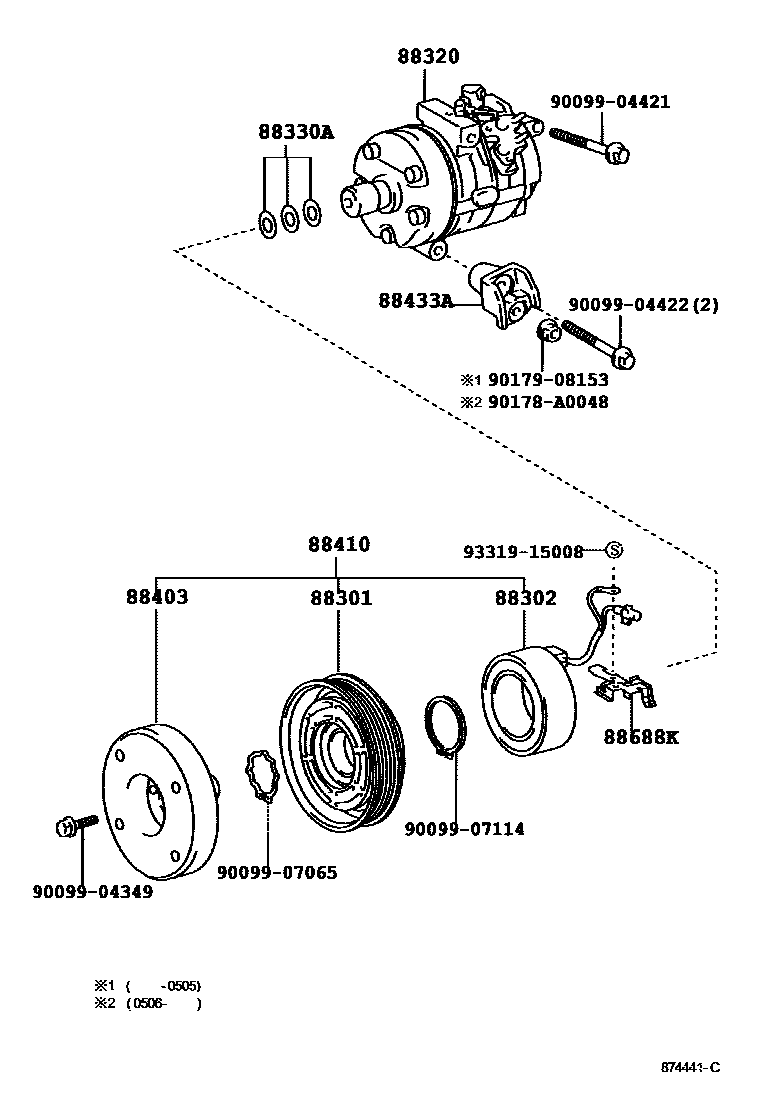

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-60070iUCK35,45200009-200412

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iUCK35,45200009-200412

88320COMPRESSOR ASSY, COOLER

main88320-0C100iUCK35,45200009-200412

sub88320-0C101

main88320-0C101iUCK35,45200412-200711

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCK35,45200009-200711

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-3A020iUCK35,45200009-200412

88410CLUTCH ASSY, MAGNET

main88410-0C040iUCK35,45200009-200412

main88410-0C050iUCK35,45200412-200711

sub88410-0C040

88433ASTAY, COMPRESSOR

main88433-0C010iUCK35,45200009-200702

main88433-35020iUCK35,45200703

88688KBRACKET, COOLER COMPRESSOR

main88688-0C120iUCK35,45200009-200711

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907065

main90099-07065

9009907114

main90099-07114

90178A0048

main90178-A0048

9017908153

main90179-08153

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
