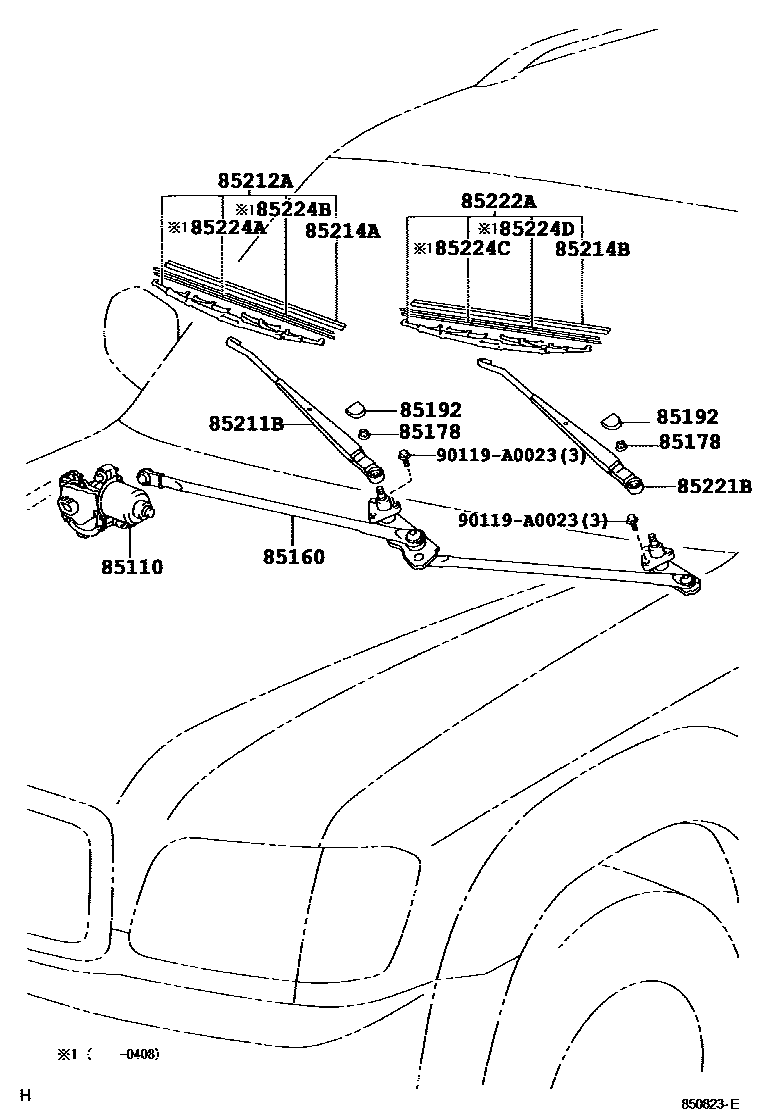

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0C010iUCK35,45..4HC200009-200108

main85110-0C020iUCK35,45200009-200408

COLD SPEC

main85110-0C020iUCK35,45200408

85160LINK ASSY, WINDSHIELD WIPER

main85150-0C040iUCK35,45..4HC200009-200108

main85150-0C050iUCK35,45200009-200408

COLD SPEC

main85150-0C060iUCK45200009-200408

COLD SPEC & CANADA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iUCK35,45200009-200408

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iUCK35,45200009-200408

85211BARM, FRONT WIPER, RH

main85211-0C010iUCK35,45200009-200408

85212ABLADE, FR WIPER, RH

main85212-0C010iUCK35,45..4HC200009-200309

sub85212-0C011

main85212-0C011iUCK35,45200309-200606

sub85212-0C012

main85212-0C012iUCK35,45200607

85214ARUBBER, WIPER, RH

main85214-0C010iUCK35,45200009-200308

sub85214-0C011

main85214-0C011iUCK35,45200309-200606

sub85214-0C012

main85214-0C012iUCK35,45200607

85214BRUBBER, WIPER, LH

main85214-0C010iUCK35,45200009-200308

sub85214-0C011

main85214-0C011iUCK35,45200309-200606

sub85214-0C012

main85214-0C012iUCK35,45200607

85221BARM, FRONT WIPER, LH

main85221-0C010iUCK35,45200009-200408

85222ABLADE, FR WIPER, LH

main85222-0C010iUCK35,45..4HC200009-200309

sub85222-0C011

main85222-0C011iUCK35,45200309-200606

sub85222-0C012

main85222-0C012iUCK35,45200607

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-AA030iUCK35,45200009-200408

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-AA030iUCK35,45200009-200408

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-0C010iUCK35,45200009-200408

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-0C010iUCK35,45200009-200408

90119A0023

main90119-A0023

15 parts on this diagram · 1 diagram in section
