WIRELESS DOOR LOCK

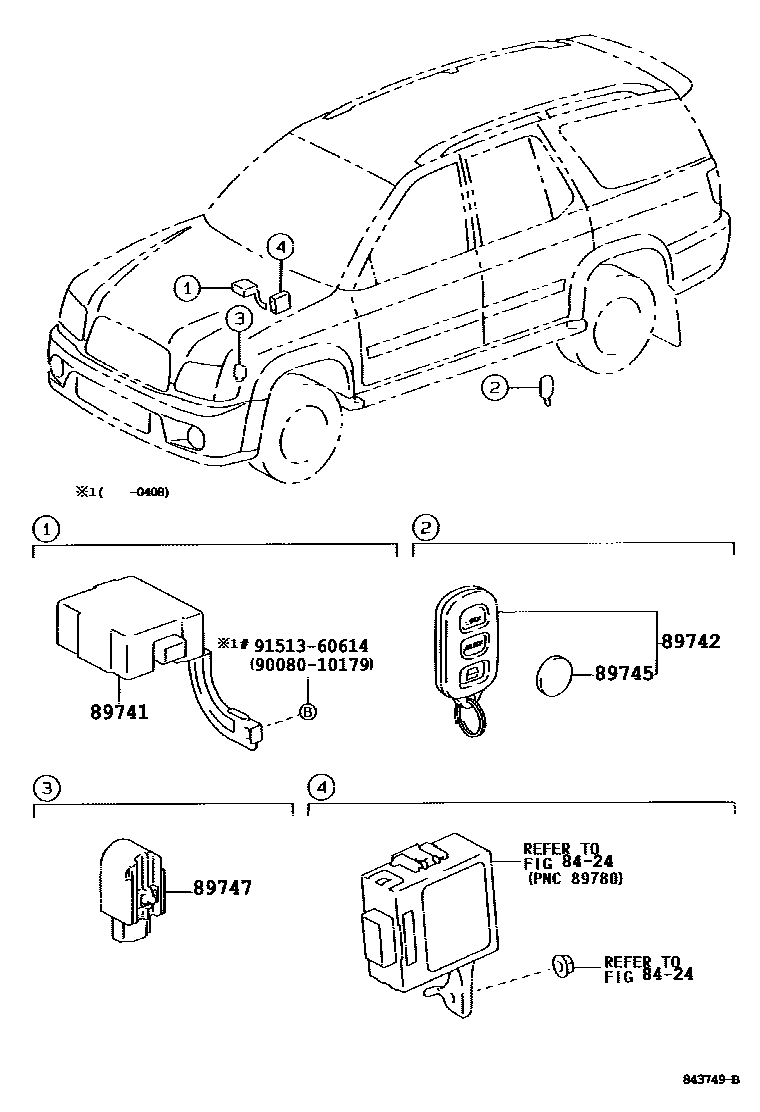

Parts diagram

8424

89741RECEIVER, DOOR CONTROL

main89741-0C010i200009-200309

main89741-0C030i200309-200408

89742TRANSMITTER, DOOR CONTROL

main89742-0C010i200009-200309

main89742-0C030i200309-200408

89745BATTERY, TRANSMITTER

main89745-48030i¥440200309-200408

sub89745-71010¥440

main89745-50010i¥440200009-200309

sub89745-71010¥440

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010i¥2,900200009-200408

9008010179

main90080-10179¥90

9151360614

main91513-60614¥80

7 parts on this diagram · 1 diagram in section
