SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION,FRONT 0002 1ENGINE & TRANSMISSION,REAR 0003 1ENGINE ROOM 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1DOOR,ROOF,FLOOR & SEAT

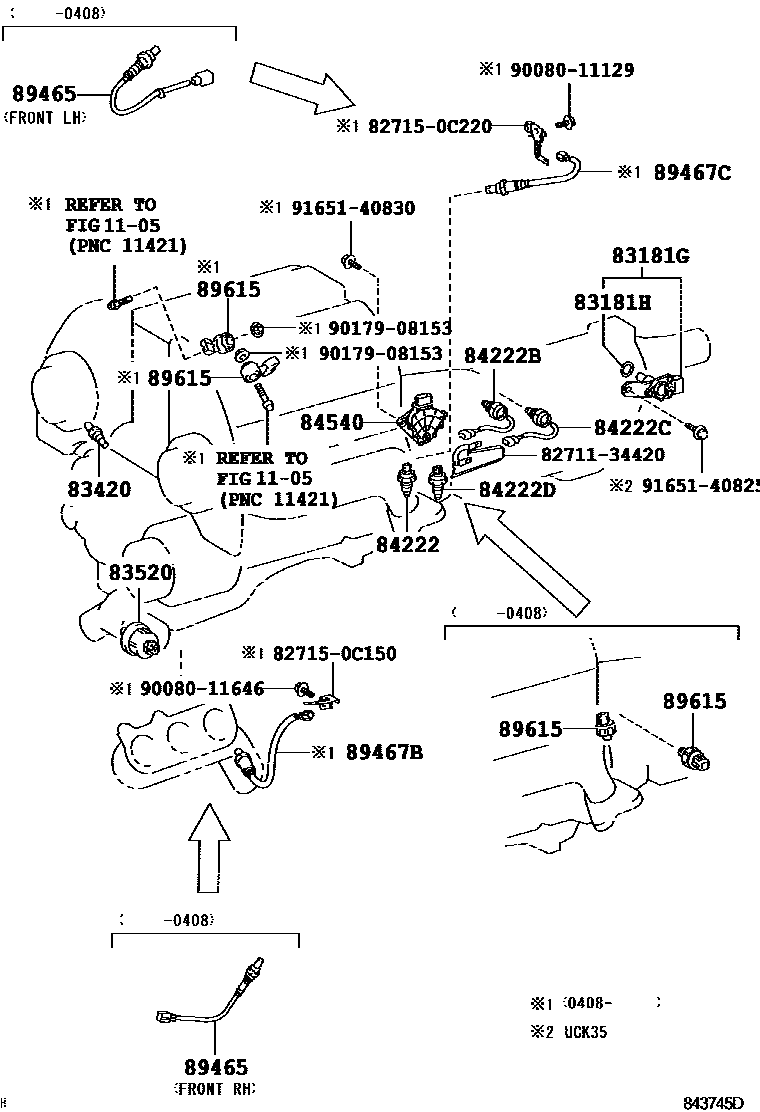

1105

83181GSENSOR, SPEEDOMETER

main83181-12020iUCK45200009-200408

main83181-35070iUCK35200009-200408

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iUCK35200009-200408

main96711-24030iUCK45200009-200408

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iUCK35,45200308-200408

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-34020iUCK35,45200309-200409

sub83520-60050

main83520-35020iUCK35,45200009-200309

sub83520-60050

main83520-60050iUCK35,45200409

sub83520-60051

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iUCK45200009-200408

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iUCK45200009-200408

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35090iUCK45200009-200408

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35120iUCK45200009-200112

sub84222-35121

main84222-35121iUCK45200112-200408

84540SWITCH ASSY, NEUTRAL START

main84540-04010iUCK35,45200408

main84540-30320iUCK35,45200009-200408

89465SENSOR, OXYGEN

main89465-09300iUCK35200009-200408

REAR

main89465-09310iUCK45200009-200408

REAR RH

main89465-09320iUCK45200009-200408

REAR LH

main89465-0C140iUCK35,45200309-200408

FRONT LH (L)

main89465-0C150iUCK35,45200309-200408

FRONT RH (L)

main89465-0C160iUCK35,45200408

main89465-34120iUCK35,45200009-200408

FRONT LH (J)

main89465-34130iUCK35,45200009-200408

FRONT RH (J)

89467BSENSOR, AIR FUEL RATIO

main89467-0C010iUCK35,45200408

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0C010iUCK35,45200408

89615SENSOR, KNOCK CONTROL

main89615-20090iUCK35,45200408

main89615-52010iUCK35,45200009-200408

8271134420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34420

827150C150BRACKET,WIRING HARNESS CLAMP

main82715-0C150

827150C220BRACKET,WIRING HARNESS CLAMP

main82715-0C220

9008011129

main90080-11129

9008011646

main90080-11646

9017908153

main90179-08153

9165140825

main91651-40825

9165140830

main91651-40830

22 parts on this diagram · 8 diagrams in section
