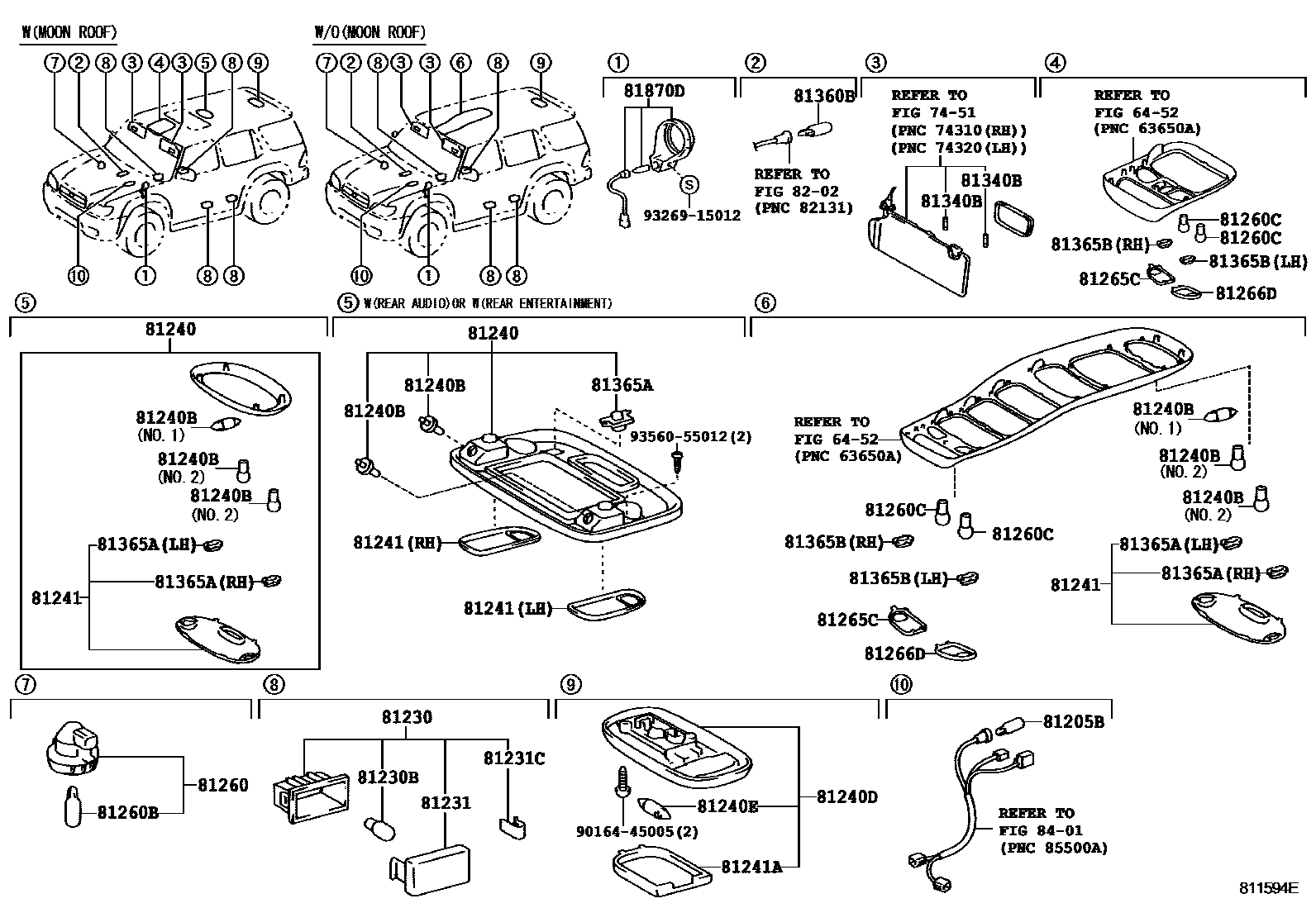

INTERIOR LAMP
6452
7451
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81231CCLIP, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
MD.CHARCOAL,TRIM1#
FAWN,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM1#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.OAK,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM1#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),FAWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 8W,NO.1
12V 5W
12V 5W,NO.2
81240DLAMP ASSY, ROOM, NO.2
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
FAWN,TRIM42,43
81240EBULB, ROOM LAMP, NO.2
12V 8W
81241LENS, ROOM LAMP, NO.1
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
FAWN,TRIM42,43
FAWN,TRIM4#
RH
LH
81241ALENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 5W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81340BBULB (FOR VANITY LAMP)
14V 1.4W
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
81365AKNOB, ROOM LAMP SWITCH
MD.CHARCOAL,TRIM1#,RH
MD.CHARCOAL,TRIM1#,NO.1
MD.OAK,TRIM4#,RH
FAWN,TRIM42,43,NO.1
MD.CHARCOAL,TRIM1#,LH
MD.CHARCOAL,TRIM1#,NO.2
MD.OAK,TRIM4#,LH
FAWN,TRIM42,43,NO.2
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
FAWN,TRIM4#
81365BKNOB, MAP LAMP SWITCH
MD.CHARCOAL,TRIM1#,RH
MD.CHARCOAL,TRIM1#,NO.1
MD.OAK,TRIM4#,RH
FAWN,TRIM42,43,NO.1
MD.CHARCOAL,TRIM1#,LH
MD.CHARCOAL,TRIM1#,NO.2
MD.OAK,TRIM4#,LH
FAWN,TRIM42,43,NO.2
81870DLAMP ASSY, KEY CYLINDER
8202
8401
9016445005
main90164-45005
9326915012
main93269-15012
9356055012
main93560-55012
28 parts on this diagram · 1 diagram in section
