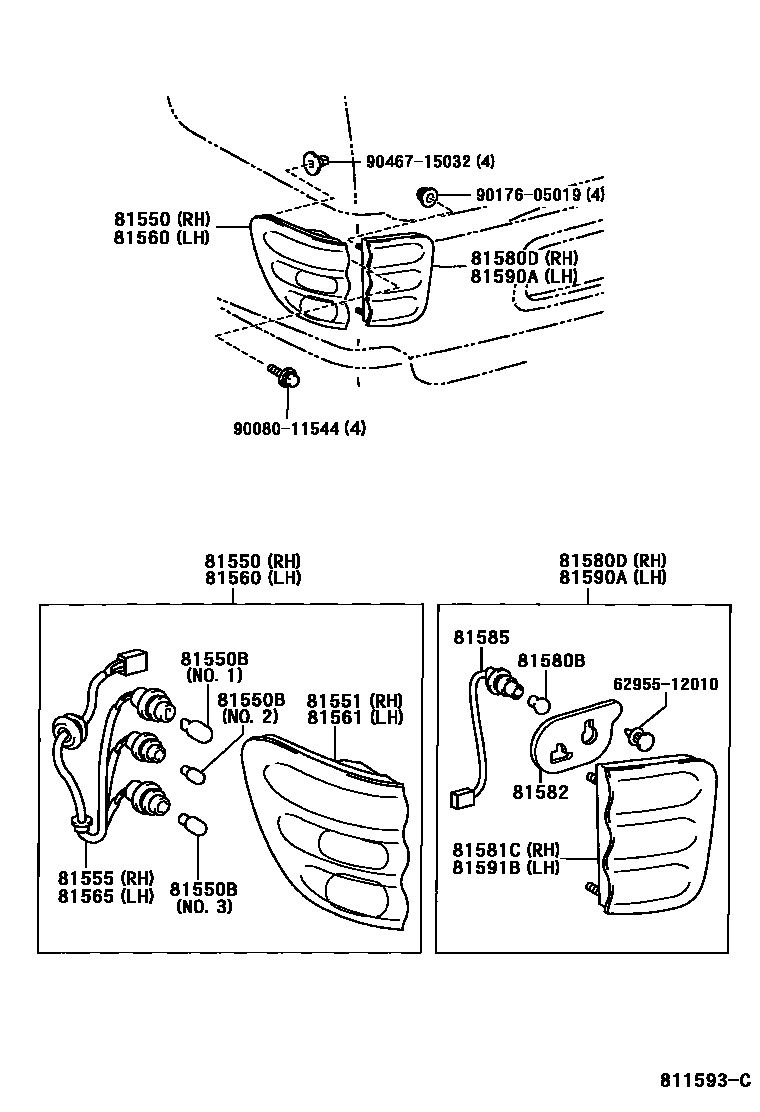

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0C020iUCK35,45¥15,600200009-200408

main81550-0C050iUCK35,45¥22,800200408

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059iUCK35,45¥200200009-200408

12V 16W,NO.2

main90981-13043iUCK35,45¥220200009-200408

12V 21W,NO.3

main90981-13044iUCK35,45¥230200009-200711

12V 21/5W,NO.1

main90981-15011iUCK35,45¥300200408-200711

12V 21W,AMBER,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-0C020iUCK35,45200009-200408

sub81550-0C020¥15,600

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0C020iUCK35,45200009-200408

main81555-0C050iUCK35,45200408

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0C020iUCK35,45¥15,600200009-200408

main81560-0C050iUCK35,45¥22,800200408

81561LENS, REAR COMBINATION LAMP, LH

main81561-0C020iUCK35,45200009-200408

sub81560-0C020¥15,600

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0C020iUCK35,45200009-200408

main81555-0C050iUCK35,45200408

81580BBULB (FOR REAR LAMP)

main90080-81012iUCK35,45200009-200408

12V 5W

main90081-81006iUCK35,45¥220200408

12V 3.8W

sub99132-11038¥170

main90981-11059iUCK35,45¥200200408

12V 16W

81580DLAMP ASSY, REAR, RH

main81580-0C010iUCK35,45¥15,200200009-200408

main81580-0C020iUCK35,45¥15,800200408

81581CLENS AND BODY, REAR LAMP, RH

main81581-0C010iUCK35,45¥6,200200009-200408

81582GASKET, REAR LAMP

main81582-0C010iUCK35,45200009-200408

81585SOCKET & WIRE, REAR LAMP

main81585-0C010iUCK35,45200009-200408

main81585-0C020iUCK35,45200408

RH

main81595-0C020iUCK35,45200408

LH

81590ALAMP ASSY, REAR, LH

main81590-0C010iUCK35,45¥15,200200009-200408

main81590-0C020iUCK35,45¥15,800200408

81591BLENS AND BODY, REAR LAMP, LH

main81591-0C010iUCK35,45¥6,200200009-200408

6295512010SEAL, ROOF SIDE VENT

main62955-12010¥180

9008011544

main90080-11544

9017605019

main90176-05019¥100

9046715032

main90467-15032¥170

18 parts on this diagram · 2 diagrams in section
