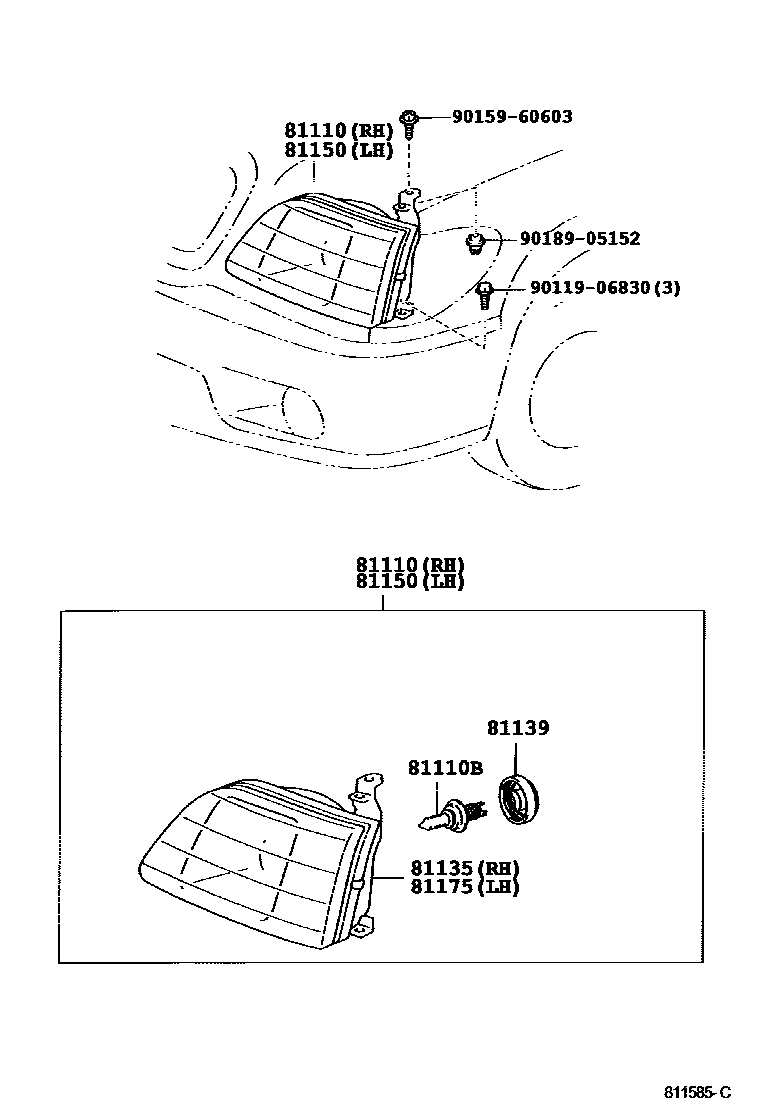

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-0C020iUCK35,45200009-200408

main81110-0C030iUCK35,45200408-200709

sub81110-0C031

main81110-0C031iUCK35,45200710

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iUCK35,45200009-200711

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0C020iUCK35,45200009-200408

sub81110-0C020

main81130-0C030iUCK35,45200408-200710

sub81130-0C031

main81130-0C031iUCK35,45200710-200711

81139COVER, HEADLAMP SOCKET

main81139-0C020iUCK35,45200009-200408

main90075-65002iUCK35,45200408-200711

81150HEADLAMP ASSY, LH

main81150-0C020iUCK35,45200009-200408

main81150-0C030iUCK35,45200408-200709

sub81150-0C031

main81150-0C031iUCK35,45200710

81175UNIT ASSY, HEADLAMP, LH

main81170-0C020iUCK35,45200009-200408

sub81150-0C020

main81170-0C030iUCK35,45200408-200710

sub81170-0C031

main81170-0C031iUCK35,45200710-200711

9011906830

main90119-06830

9015960603

main90159-60603

9018905152

main90189-05152

9 parts on this diagram · 2 diagrams in section
