MOULDING
58741GPROTECTOR, REAR WHEEL EXTENSION, RH
58742GPROTECTOR, REAR WHEEL EXTENSION, LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75392ARETAINER, OUTSIDE MOULDING, NO.1
NO.1
NO.2
NO.3
NO.4
NO.5
NO.6
75392BRETEINER, OUTSIDE MOULDING, NO.1
NO.1
NO.2
NO.3
75395CCLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75531MOULDING, WINDSHIELD, OUTER UPPER
75533MOULDING, WINDSHIELD, OUTSIDE RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
75625CPAD, FRONT FENDER OUTSIDE MOULDING, UPPER
GRAY,056 ,1D6 ,1E3 ,202 ,6Q7
GRAY,040 ,056 ,1D6 ,1E3 ,4Q2 ,8J7
GRAY,040 ,056 ,071 ,1D6 ,4Q2
GRAY,056 ,1D6 ,1E3 ,202 ,4Q2 ,6Q7 ,8P9
BLACK,1D6 ,1E3 ,202 ,3Q3 ,6T8 ,8J7
BLACK,1E3 ,202 ,6Q7
BLACK,1E3 ,202 ,3Q3 ,6Q7
BLACK,1E3 ,202 ,3Q3 ,6T8 ,8J7
GRAY,056 ,1C7 ,1D6 ,202 ,6Q7
GRAY,056 ,1D6 ,1E3 ,202 ,4Q2 ,6Q7 ,8P9
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,6Q7 ,8P9
GRAY,056 ,1D6 ,1E3 ,202 ,6Q7
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,4Q7 ,6Q7 ,8P9
BLACK,1E3 ,202 ,3Q3 ,6Q7
BLACK,202 ,6Q7
BLACK,1E3 ,202 ,6Q7
75659APAD, QUARTER PANEL MOULDING, NO.1
GRAY,040 ,056 ,071 ,1D6 ,4Q2
GRAY,040 ,056 ,1D6 ,1E3 ,4Q2 ,8J7
BLACK,1D6 ,1E3 ,202 ,3Q3 ,6T8 ,8J7
BLACK,1E3 ,202 ,3Q3 ,6T8 ,8J7
GRAY,056 ,1D6 ,1E3 ,202 ,6Q7
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,4Q7 ,6Q7 ,8P9
GRAY,056 ,1C7 ,1D6 ,202 ,6Q7
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,6Q7 ,8P9
GRAY,056 ,1D6 ,1E3 ,202 ,4Q2 ,6Q7 ,8P9
BLACK,202 ,6Q7
BLACK,1E3 ,202 ,6Q7
BLACK,1E3 ,202 ,3Q3 ,6Q7
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
DK.GREEN MC.,6Q7
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
RED MM,3K4
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
BROWN M.M.,4Q7
DK.GREEN MC.,6Q7
BLUE M.M.,8P9
75732AMOULDING, FRONT DOOR, OUTSIDE LH
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
DK.GREEN MC.,6Q7
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
RED MM,3K4
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
BROWN M.M.,4Q7
DK.GREEN MC.,6Q7
BLUE M.M.,8P9
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
DK.GREEN MC.,6Q7
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
RED MM,3K4
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
BROWN M.M.,4Q7
DK.GREEN MC.,6Q7
BLUE M.M.,8P9
75742MOULDING, REAR DOOR, OUTSIDE LH
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
DK.GREEN MC.,6Q7
WHITE,056
GRAY M.M.OP.,1C7
SILVER ME.,1D6
GRAY M.M.,1E3
BLACK,202
RED MM,3K4
DK. RED M.M.,3Q3
BEIGE M. M.,4Q2
BROWN M.M.,4Q7
DK.GREEN MC.,6Q7
BLUE M.M.,8P9
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75767APAD, REAR DOOR MOULDING, NO.1
GRAY,040 ,056 ,1D6 ,1E3 ,4Q2 ,8J7
GRAY,040 ,056 ,071 ,1D6 ,4Q2
BLACK,1E3 ,202 ,3Q3 ,6T8 ,8J7
BLACK,1D6 ,1E3 ,202 ,3Q3 ,6T8 ,8J7
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,4Q7 ,6Q7 ,8P9
GRAY,056 ,1C7 ,1D6 ,202 ,6Q7
GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,6Q7 ,8P9
GRAY,056 ,1D6 ,1E3 ,202 ,6Q7
GRAY,056 ,1D6 ,1E3 ,202 ,4Q2 ,6Q7 ,8P9
BLACK,1E3 ,202 ,3Q3 ,6Q7
BLACK,1E3 ,202 ,6Q7
BLACK,202 ,6Q7
75815MOULDING, BACK DOOR OUTSIDE, RH
sub75815-0C901
75816MOULDING, BACK DOOR OUTSIDE, LH
sub75816-0C901
75869BRETAINER, QUARTER OPENING, LH
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
75879ARETAINER, QUARTER OPENING, RH
9008018042
main90080-18042
9008018058
main90080-18058
9015940275
main90159-40275
9015960385
main90159-60385
9015960603
main90159-60603
9016840059
main90168-40059
9016850076
main90168-50076
9017605019
main90176-05019
9018904211
main90189-04211
9018904227
main90189-04227
9018906134
main90189-06134
9046708195
main90467-08195
9054106056
main90541-06056

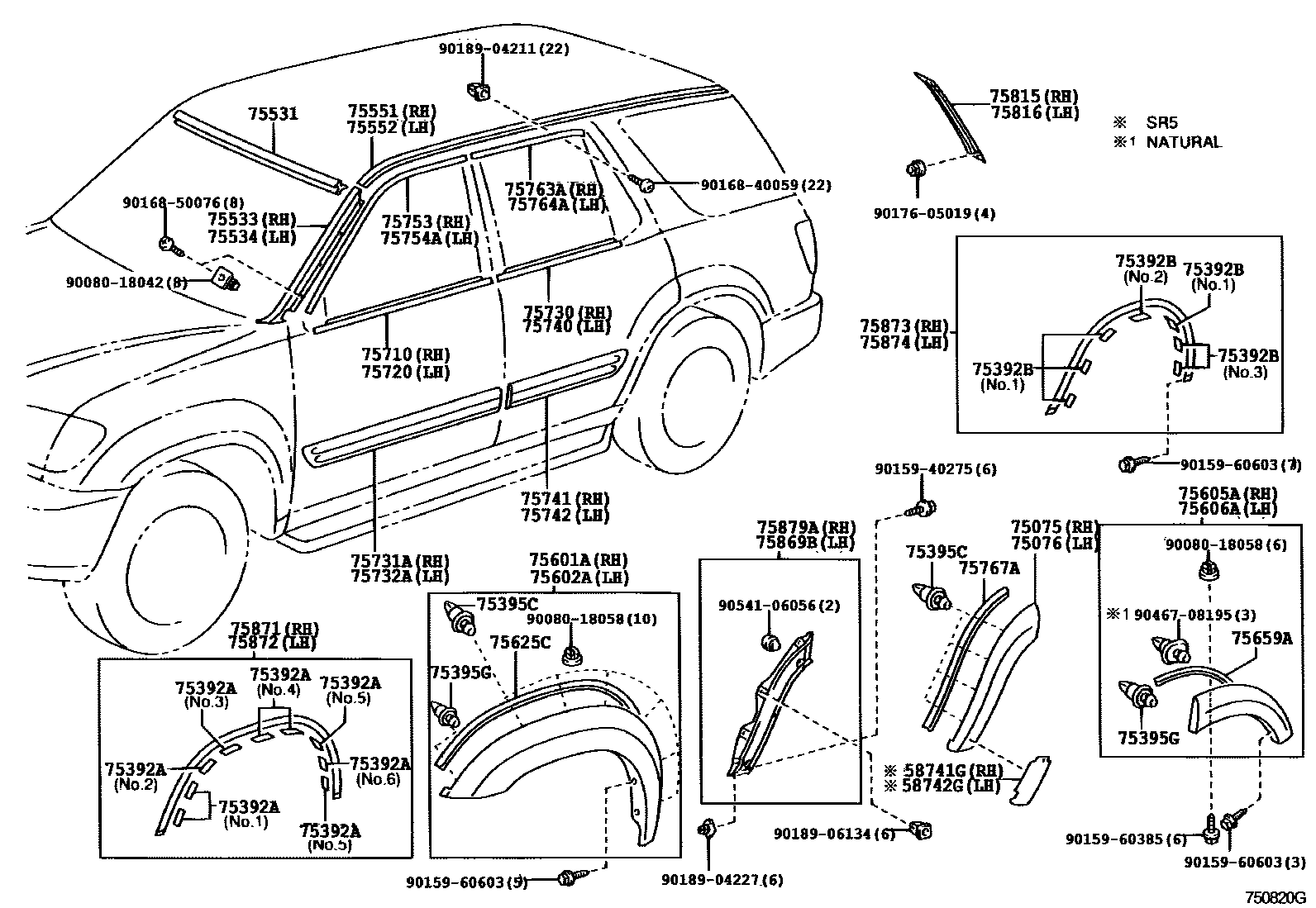

53 parts on this diagram · 2 diagrams in section
