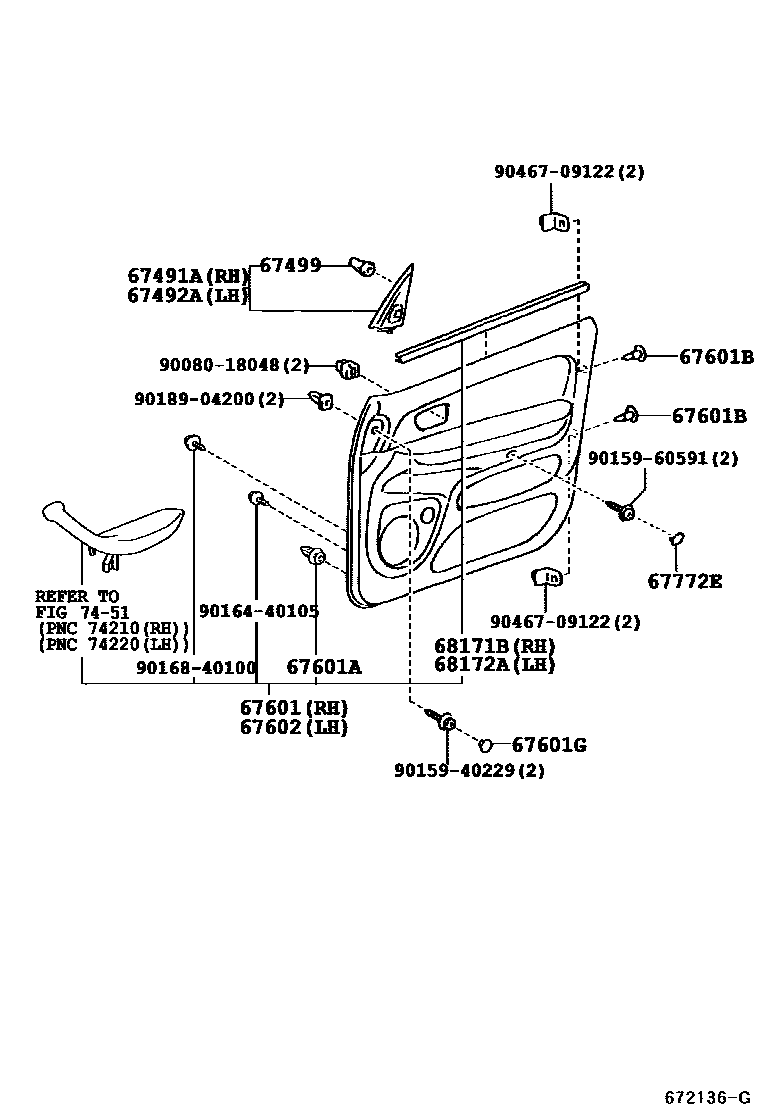

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-0C010iUCK35,45200009-200408

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-0C010iUCK35,45200408

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-06010×2iUCK35,45200009-200408

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-0C090-B0iUCK35,45..SR5200009-200405

CHARCOAL,TRIM1#

main67610-0C090-E0iUCK35,45..SR5200009-200405

OAK,TRIM4#

main67610-0C120-B1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),CHARCOAL,TRIM1#

main67610-0C120-E1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),OAK,TRIM4#

main67610-0C140-B0iUCK35,45..LIMD200009-200401

CHARCOAL,TRIM1#

main67610-0C140-E0iUCK35,45..LIMD200009-200401

OAK,TRIM4#

main67610-0C141-B1iUCK35,45..LIMD200401-200408

CHARCOAL,TRIM1#

main67610-0C141-E1iUCK35,45..LIMD200401-200408

OAK,TRIM4#

main67610-0C141-E4iUCK35,45..LIMD200408

FAWN,TRIM4#

main67610-0C181-B1iUCK35,45..SR5200408-200603

CHARCOAL,TRIM1#

main67610-0C181-E1iUCK35,45..SR5200408-200603

FAWN,TRIM4#

main67610-0C191-B1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67610-0C191-E1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),FAWN,TRIM4#

main67610-0C450-B0iUCK35,45..SR5200603

CHARCOAL,TRIM1#

main67610-0C450-E0iUCK35,45..SR5200603

FAWN,TRIM4#

main67610-0C460-B0iUCK35,45..SR5200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67610-0C460-E0iUCK35,45..SR5200603

W(JBL SPEAKER),FAWN,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-09203×16iUCK35,45..SR5200408

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-B8×2iUCK35,45200408

MD.CHARCOAL,TRIM11,LOWER

main90467-07066-E0×4iUCK35,45200204-200408

OAK,TRIM4#

main90467-07066-E8×2iUCK35,45200408

FAWN,TRIM42,43,LOWER

main90467-07066-E9×2iUCK35,45200408

SANDAL WOOD,TRIM42,43,LOWER

main90467-07066-P1×2iUCK35,45200408

DK.CHARCOAL,TRIM11,LOWER

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B6×2iUCK35,45200408

DK.CHARCOAL,TRIM1#

main90950-01746-E0×2iUCK35,45200009-200408

OAK,TRIM4#

main90950-01746-E5×2iUCK35,45200408

SANDAL WOOD,TRIM42,43

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-0C090-B0iUCK35,45..SR5200009-200408

CHARCOAL,TRIM1#

main67620-0C090-E0iUCK35,45..SR5200009-200408

OAK,TRIM4#

main67620-0C120-B1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),DHARCOAL,TRIM1#

main67620-0C120-E1iUCK35,45..SR5200009-200408

W(AM/FM CASSETTE CD 10SPEAKER JBL),0AK,TRIM4#

main67620-0C140-B0iUCK35,45..LIMD200009-200401

CHARCOAL,TRIM1#

main67620-0C140-E0iUCK35,45..LIMD200009-200401

OAK,TRIM4#

main67620-0C141-B1iUCK35,45..LIMD200401-200408

CHARCOAL,TRIM1#

main67620-0C141-E1iUCK35,45..LIMD200401-200408

OAK,TRIM4#

main67620-0C141-E4iUCK35,45..LIMD200408

FAWN,TRIM4#

main67620-0C181-B1iUCK35,45..SR5200408-200603

CHARCOAL,TRIM1#

main67620-0C181-E1iUCK35,45..SR5200408-200603

FAWN,TRIM4#

main67620-0C191-B1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67620-0C191-E1iUCK35,45..SR5200408-200603

W(JBL SPEAKER),FAWN,TRIM4#

main67620-0C470-B0iUCK35,45..SR5200603

CHARCOAL,TRIM1#

main67620-0C470-E0iUCK35,45..SR5200603

FAWN,TRIM4#

main67620-0C480-B0iUCK35,45..SR5200603

W(JBL SPEAKER),CHARCOAL,TRIM1#

main67620-0C480-E0iUCK35,45..SR5200603

W(JBL SPEAKER),FAWN,TRIM4#

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-0C120-B0iUCK35,45200408

MD.CHARCOAL,TRIM1#,RH

main67772-0C120-E0iUCK35,45200009-200408

MD.OAK,TRIM4#,RH

main67772-0C120-E1iUCK35,45200408

FAWN,TRIM42,43,RH

main67772-0C130-B0iUCK35,45200408

MD.CHARCOAL,TRIM1#,LH

main67772-0C130-E0iUCK35,45200009-200408

MD.OAK,TRIM4#,LH

main67772-0C130-E1iUCK35,45200408

FAWN,TRIM42,43,LH

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-0C020iUCK35,45200009-200408

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-0C020iUCK35,45200009-200408

7451

9008018048

main90080-18048

9015940229

main90159-40229

9015960591

main90159-60591

9016440105

main90164-40105

9016840100

main90168-40100

9018904200

main90189-04200

9046709122

main90467-09122

19 parts on this diagram · 3 diagrams in section
