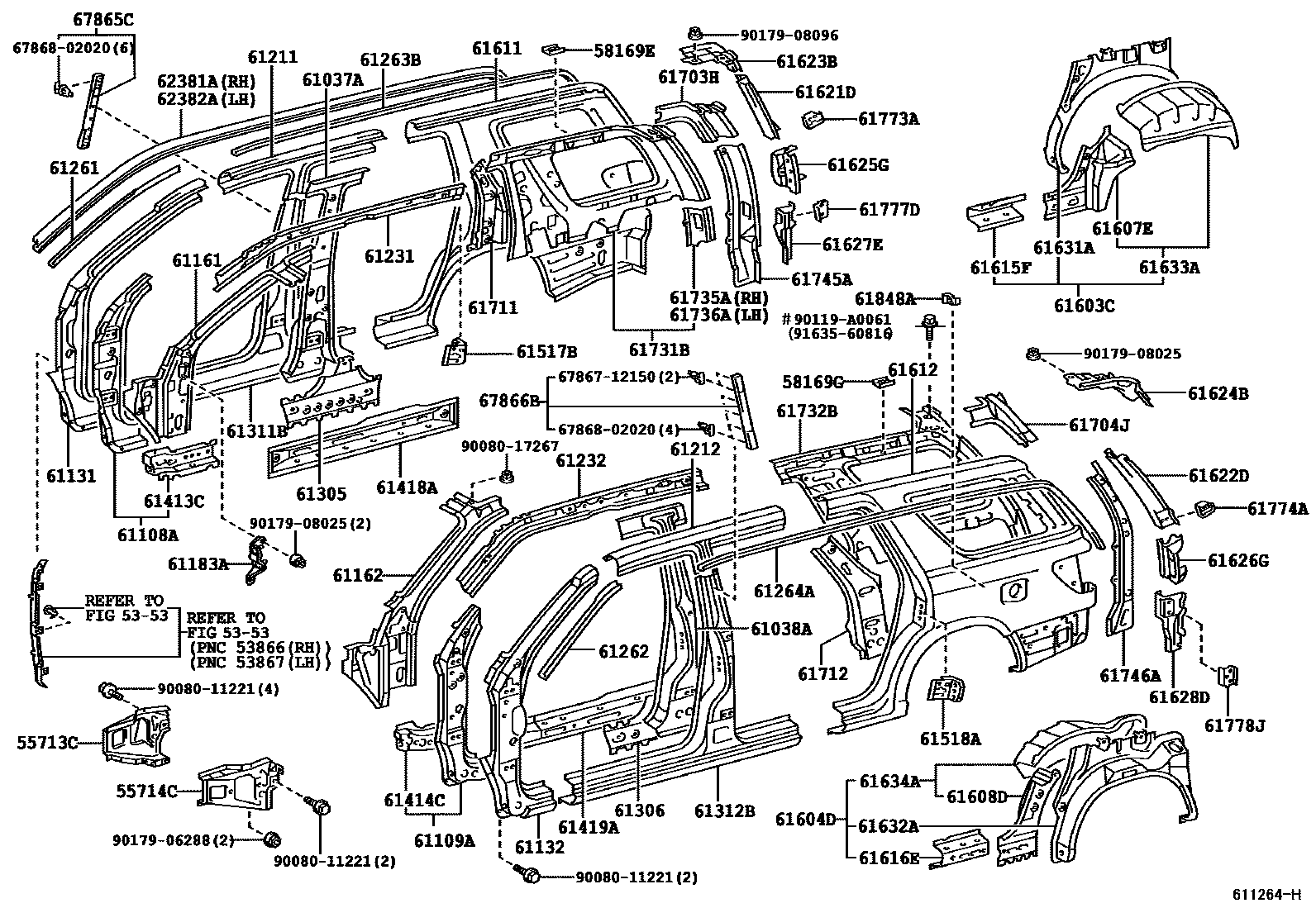

SIDE MEMBER
5353
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
58169ERETAINER, REAR HEATER MOUNTING
58169GRETAINER, REAR HEATER MOUNTING
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61162PILLAR, FRONT BODY, UPPER INNER LH
61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61517BREINFORCEMENT, QUARTER LOCK PILLAR, RH
61518AREINFORCEMENT, QUARTER LOCK PILLAR, LH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
W(THIRD SEAT 5:5 SPLIT)
W(THIRD SEAT 5:5 SPLIT)
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
W(THIRD SEAT 5:5 SPLIT)
W(THIRD SEAT 5:5 SPLIT)
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61608DPANEL, QUARTER WHEEL HOUSE, INNER LH
61611PANEL, QUARTER, RH
W(QUARTER OUTSIDE MOULDING)
W(QUARTER OUTSIDE MOULDING)
CANADA SPEC
CANADA SPEC
61612PANEL, QUARTER, LH
W(QUARTER OUTSIDE MOULDING)
CANADA SPEC
CANADA SPEC
W(AIR SUSPENSION)
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61616EREINFORCEMENT, QUARTER PANEL, OUTER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61623BTROUGH, BACK DOOR OPENING, REAR RH
61624BTROUGH, BACK DOOR OPENING, REAR LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
W(THIRD SEAT 5:5 SPLIT)
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
W(THIRD SEAT 5:5 SPLIT)
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61773APATCH, BACK DOOR OPENING, LOWER RH
61774APATCH, BACK DOOR OPENING, LOWER LH
61777DRETAINER, BACK DOOR SIDE STOPPER, RH
61778JRETAINER, BACK DOOR SIDE STOPPER, LH
61848ARETAINER, QUARTER PANEL, LH
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
67865CWEATHERSTRIP, CENTER PILLAR UPPER END, RH
67866BWEATHERSTRIP, CENTER PILLAR UPPER END, LH
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
6786802020CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-02020
9008011221
main90080-11221
9008017267
main90080-17267
90119A0061
main90119-A0061
9017906288
main90179-06288
9017908025
main90179-08025
9017908096
main90179-08096
9163560816
main91635-60816
80 parts on this diagram · 2 diagrams in section
