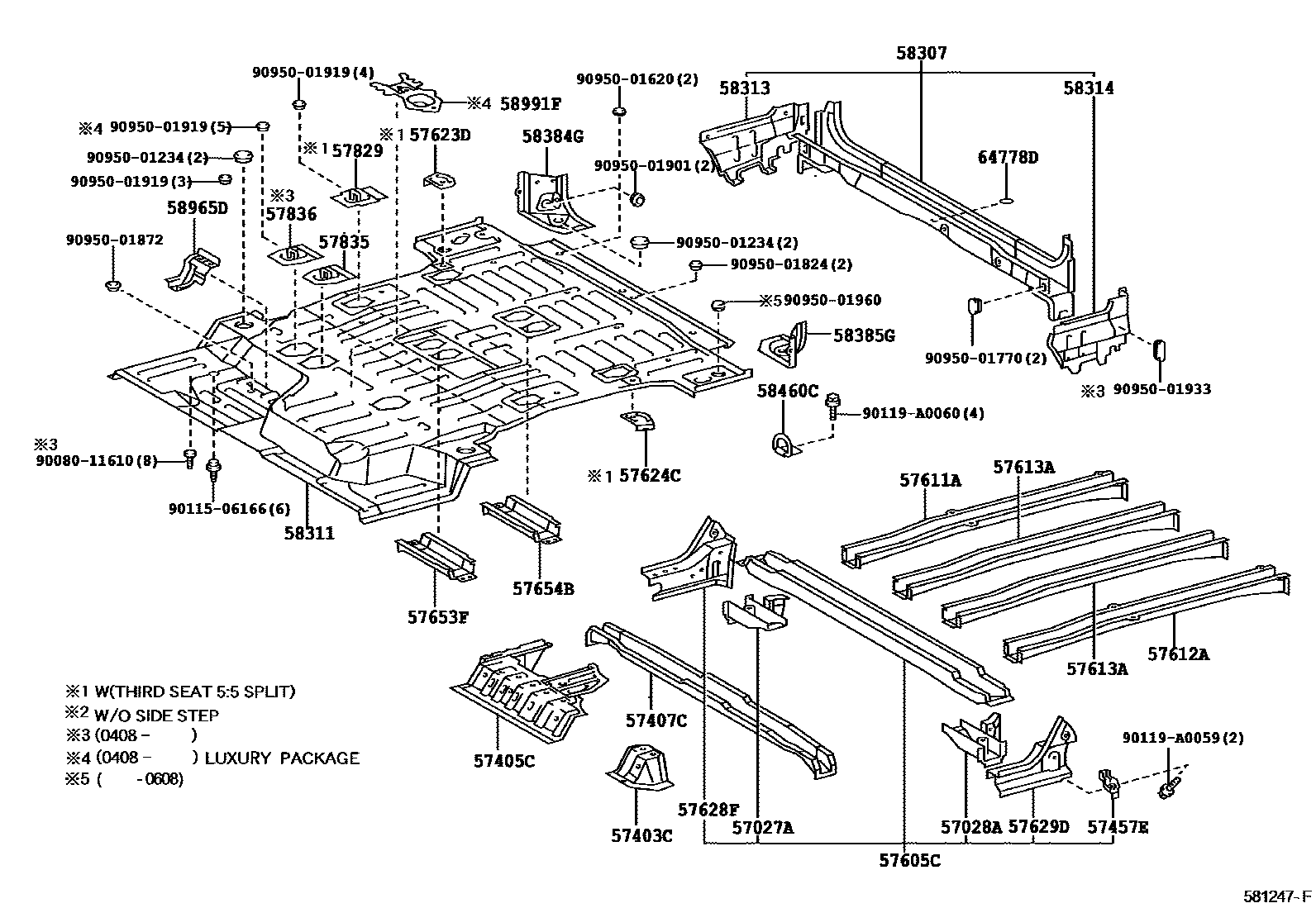

REAR FLOOR PANEL & REAR FLOOR MEMBER

57027ABRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH

main57027-0C010iUCK35,45200009-200408

57028ABRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH

main57028-0C010iUCK35,45200009-200408

57403CREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0C010iUCK35,45200009-200408

main57403-0C030iUCK35,45200408

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-0C010iUCK35,45200009-200408

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-0C010iUCK35,45200009-200408

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-0C010iUCK35,45200009-200408

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0C040iUCK35,45200009-200312

sub57605-0C041

main57605-0C041iUCK35,45200408

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0C010iUCK35,45200009-200408

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-0C010iUCK35,45200009-200408

main57612-0C020iUCK35,45200408

57613AMEMBER, REAR FLOOR SIDE CENTER

main57613-0C010iUCK35,45200009-200408

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57623-0C010iUCK35,45200009-200408

57624CPLATE, REAR FLOOR SIDE MEMBER, RR LH

main57624-0C010iUCK35,45200009-200408

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0C030iUCK35,45200009-200408

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0C030iUCK35,45200009-200408

57653FMEMBER, REAR FLOOR CROSS, NO.2

main57653-0C020iUCK35,45200009-200408

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-0C010iUCK35,45200009-200408

57829REINFORCEMENT, SEAT LEG

main57829-0C010iUCK35,45200009-200408

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-0C010iUCK35,45..LIMD200408

LUXURY PACKAGE

main57835-0C010iUCK35,45200009-200408

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-34030iUCK35,45..LIMD200408

LUXURY PACKAGE

main57836-34040iUCK35,45200407-200408

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-0C010iUCK35,45200009-200307

sub58302-0C011

main58302-0C011iUCK35,45200307-200408

58311PAN, REAR FLOOR

main58311-0C010iUCK35,45..SR5200009-200405

W(THIRD SEAT 5:5 SPLIT)

main58311-0C012iUCK35,45..SR5200401-200406

W(THIRD SEAT 5:5 SPLIT)

sub58311-0C070

sub57836-34040

sub90950-01919

main58311-0C020iUCK35,45..LIMD200009-200405

W(DUAL AIR CONDITIONER)

main58311-0C022iUCK35,45200405-200406

main58311-0C060iUCK35,45..LIMD200408

LUXURY PACKAGE

main58311-0C060iUCK35,45..SR5200508

W(DUAL AIR CONDETIONER);LUXURY PACKAGE

main58311-0C070iUCK35,45..SR5200407-200408

main58311-0C080iUCK35,45..LIMD200407-200408

W(DUAL AIR CONDITIONER)

main58311-0C120iUCK35,45..SR5200508

LUXURY PACKAGE

58313PANEL, REAR FLOOR SIDE, RH

main58313-0C010iUCK35,45200009-200407

58314PANEL, REAR FLOOR SIDE, LH

main58314-0C010iUCK35,45200009-200307

sub58314-0C011

main58314-0C011iUCK35,45200307-200407

58384GGUSSET, LOWER BACK, UPPER RH

main58384-34010iUCK35,45200009-200408

58385GGUSSET, LOWER BACK, UPPER LH

main58385-34010iUCK35,45200009-200408

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012iUCK35,45200009-200408

58965DBRACKET, JACK SUPPORT

main58965-0C030iUCK35,45200009-200408

58991FBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-0C010iUCK35,45..LIMD200408

LUXURY PACKAGE

main58991-0C010iUCK35,45..SR5200508

64778DPROTECTOR, SPARE WHEEL

main64778-35010iUCK35,45200009-200408

9008011610

main90080-11610

9011506166

main90115-06166

90119A0059

main90119-A0059

90119A0060

main90119-A0060

9095001234

main90950-01234

9095001620

main90950-01620

9095001770

main90950-01770

9095001824

main90950-01824

9095001872

main90950-01872

9095001901

main90950-01901

9095001919

main90950-01919

9095001933

main90950-01933

9095001960

main90950-01960

42 parts on this diagram · 1 diagram in section
