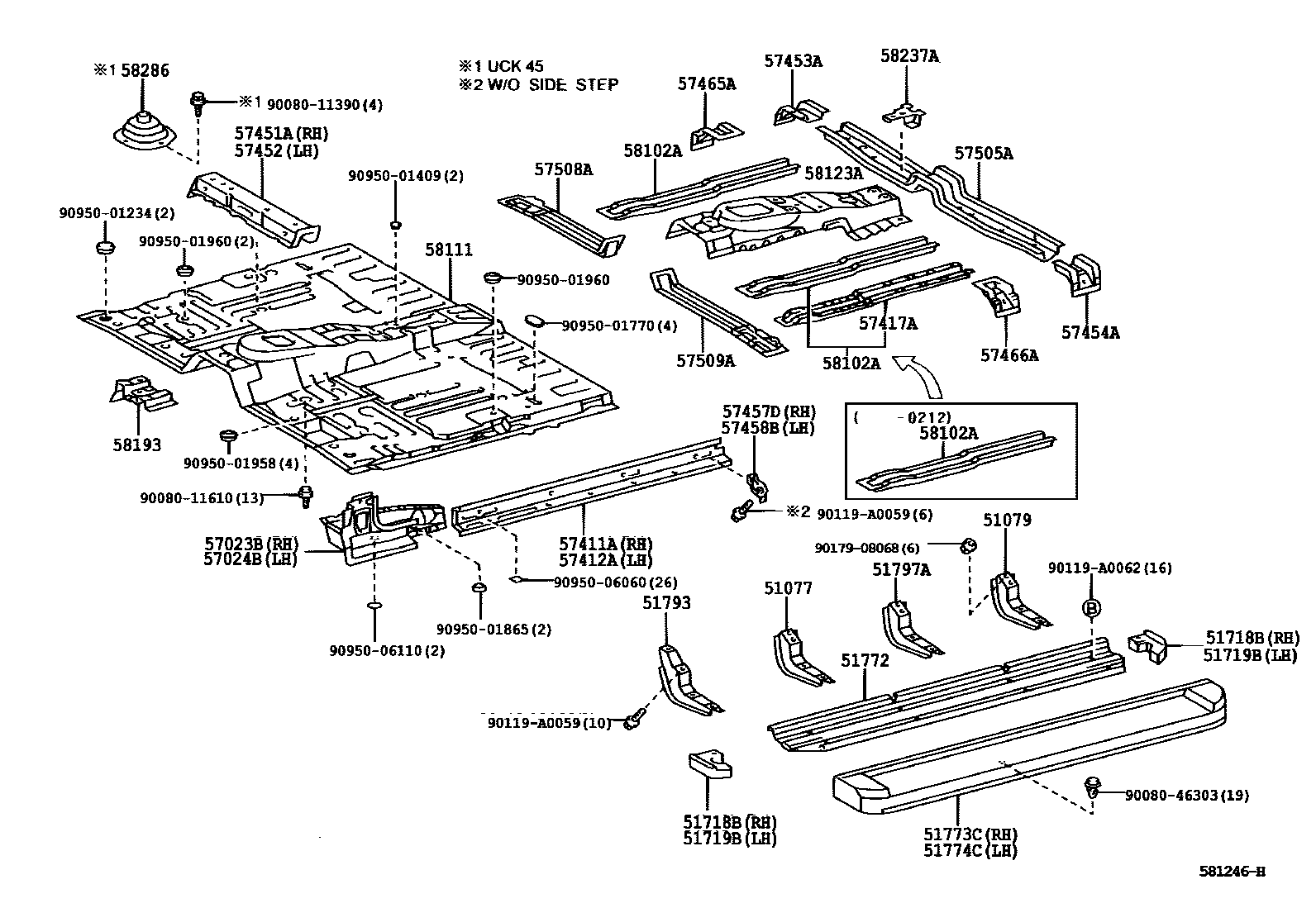

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51077BRACKET SUB-ASSY, SIDE STEP, NO.2

main51077-0C010iUCK35,45200009-200408

51079BRACKET SUB-ASSY, SIDE STEP

main51079-0C010iUCK35,45200009-200408

51718BPROTECTOR, STEP COVER, RH

main51718-0C010iUCK35,45200009-200408

REAR

main51719-0C010iUCK35,45200009-200408

FRONT

51719BPROTECTOR, STEP COVER, RH

main51718-0C010iUCK35,45200009-200408

FRONT

main51719-0C010iUCK35,45200009-200408

REAR

51772PLATE, STEP

main51771-0C010iUCK35,45200009-200408

51773CCOVER, STEP PLATE, RH

main51773-0C900iUCK35,45200009-200408

51774CCOVER, STEP PLATE, LH

main51773-0C900iUCK35,45200009-200408

51793BRACKET, SIDE STEP, NO.1

main51793-0C010iUCK35,45200009-200408

51797ABRACKET, SIDE STEP, NO.3

main51797-0C010iUCK35,45200009-200408

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-0C011iUCK35,45200009-200212

sub57023-0C012

main57023-0C012iUCK35,45200212-200408

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-0C011iUCK35,45200009-200212

sub57024-0C012

main57024-0C012iUCK35,45200212-200408

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0C020iUCK35,45200009-200408

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0C020iUCK35,45200009-200408

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-0C010iUCK35,45200212-200408

57451AMEMBER, FRONT FLOOR CROSS, RH

main57450-0C040iUCK35,45200311-200408

main57451-0C010iUCK35,45200009-200109

sub57451-0C011

main57451-0C011iUCK35,45200109-200311

sub57451-0C020

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0C010iUCK35,45200009-200408

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-0C010iUCK35,45200009-200408

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-0C010iUCK35,45200009-200408

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-0C010iUCK35,45200009-200408

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57457-0C010iUCK35,45200009-200408

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-0C010iUCK35,45200009-200408

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57465-0C010iUCK35,45200009-200408

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0C010iUCK35,45200009-200209

sub57505-0C011

main57505-0C011iUCK35,45200209-200408

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0C010iUCK35,45200009-200212

sub57508-0C011

main57508-0C011iUCK35,45200212-200408

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-0C010iUCK35,45200009-200212

sub57509-0C011

main57509-0C011iUCK35200212-200408

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-0C010iUCK35,45200009-200408

58111PAN, FRONT FLOOR

main58111-0C070iUCK45200009-200212

sub58111-0C071

main58111-0C071iUCK45200212-200306

sub58111-0C072

main58111-0C072iUCK45200306-200408

main58111-0C080iUCK35200009-200212

sub58111-0C081

main58111-0C081iUCK35200212-200306

sub58111-0C082

main58111-0C082iUCK35200306-200408

main58111-0C110iUCK35,45200408

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-0C010iUCK35,45200009-200208

main58123-0C012iUCK35,45200208-200306

sub58123-0C013

main58123-0C013iUCK35,45200306-200408

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-0C020iUCK35,45200009-200408

58237ABRACKET, FRONT SEAT

main58237-0C010iUCK35,45200009-200408

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-0C040iUCK45200009-200408

9008011390

main90080-11390

9008011610

main90080-11610

9008046303

main90080-46303

90119A0059

main90119-A0059

90119A0062

main90119-A0062

9017908068

main90179-08068

9095001234

main90950-01234

9095001409

main90950-01409

9095001770

main90950-01770

9095001865

main90950-01865

9095001958

main90950-01958

9095001960

main90950-01960

9095006060

main90950-06060

9095006110

main90950-06110

45 parts on this diagram · 1 diagram in section
