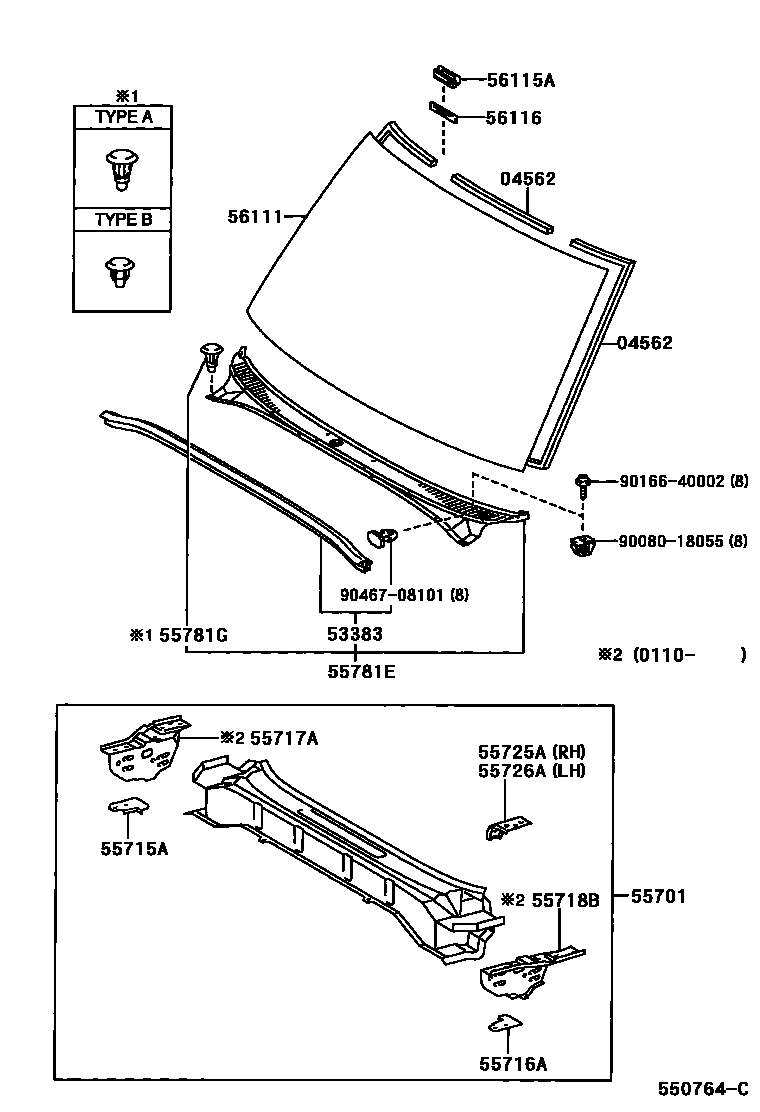

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main90998-91001iUCK35,45200102-200204

L=3500

sub90998-91004

main90998-91002iUCK35,45200102-200204

L=750

sub90998-91003

main90998-91003iUCK35,45200204-200408

L=750

main90998-91004iUCK35,45200204-200408

L=3500

53383SEAL, HOOD TO COWL TOP

main53383-0C010iUCK35,45200009-200408

55701PANEL SUB-ASSY, COWL

main55700-0C010iUCK35,45200009-200307

sub55700-0C011

main55700-0C011iUCK35,45200307-200311

sub55700-0C012

main55700-0C012iUCK35,45200311-200408

sub55700-0C020

55715ABRACE, COWL TOP TO APRON, RH

main55715-0C010iUCK35,45200009-200408

55716ABRACE, COWL TOP TO APRON, LH

main55716-0C010iUCK35,45200009-200408

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0C020iUCK35,45200110-200408

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0C020iUCK35,45200110-200408

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0C020iUCK35,45200204-200304

main55725-34020iUCK35,45200304-200408

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-0C020iUCK35,45200204-200304

main55726-34020iUCK35,45200304-200408

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0C030iUCK35,45200009-200108

main55708-0C040iUCK35,45200009-200408

COLD SPEC

main55708-0C040iUCK35,45200408

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07045-22iUCK35,45200009-200408

BLACK,TRIM1#,4#,TYPE A:REFER ILLUST.

sub90467-07045

main90467-07045-22iUCK35,45200408

BLACK,TYPE A:REFER ILLUST.

sub90467-07045

main90467-08184iUCK35,45200009-200408

TYPE B:REFER ILLUST.

56111GLASS, WINDSHIELD

main56101-0C030iUCK35,45200009-200209

*LAM,T=5.3,GREEN

main56101-0C031iUCK35,45200209-200408

*LAM,T=5.3,GREEN

main56101-0C040iUCK35,45200408

*LAM,T=5.3,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUCK35,45200009-200408

56116SPACER, WINDSHIELD GLASS

main56116-22050iUCK35,45200009-200408

9008018055

main90080-18055

9016640002

main90166-40002

9046708101

main90467-08101

17 parts on this diagram · 1 diagram in section
