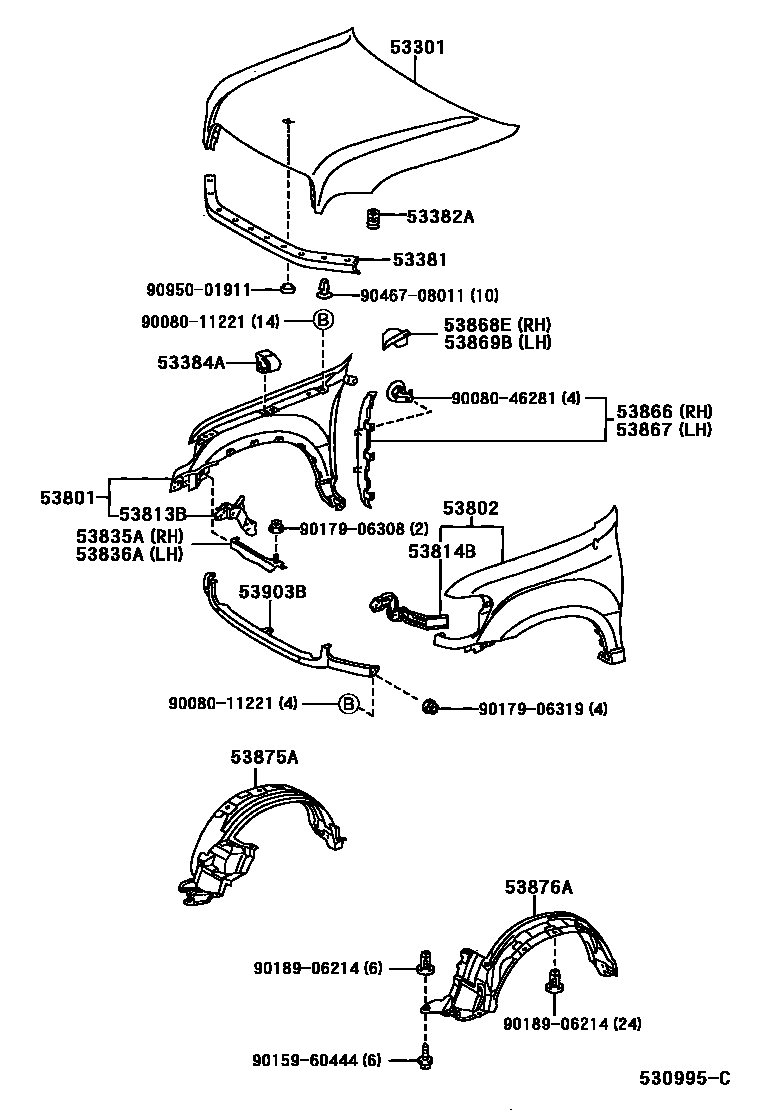

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0C020iUCK35,45..4HC200009-200304

sub53301-0C021

main53301-0C021iUCK35,45200304-200408

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0C010iUCK35,45200009-200408

53382ABUMPER, HOOD, REAR

main53382-89102iUCK35,45200009-200408

53384ABUMPER, FENDER TO HOOD

main53384-0C010iUCK35,45200009-200408

53801FENDER SUB-ASSY, FRONT RH

main53801-0C070iUCK35..SR5200009-200408

main53801-0C080iUCK35,45200009-200408

W(OVER FENDER)

main53801-0C100iUCK35,45200408

53802FENDER SUB-ASSY, FRONT LH

main53802-0C070iUCK35..SR5200009-200408

main53802-0C080iUCK35,45200009-200408

W(OVER FENDER)

main53802-0C100iUCK35,45200408

53813BEXTENSION, FRONT FENDER, RH

main53813-0C040iUCK35,45200408

main53813-34020iUCK35,45200009-200408

53814BEXTENSION, FRONT FENDER, LH

main53814-0C040iUCK35,45200408

main53814-34020iUCK35,45200009-200408

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-34030iUCK35,45200009-200408

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-34030iUCK35,45200009-200408

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0C020iUCK35,45200009-200408

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0C020iUCK35,45200009-200408

53868ESEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-0C020iUCK35,45200009-200408

53869BSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-0C020iUCK35,45200009-200408

53875ALINER, FRONT FENDER, RH

main53875-0C020iUCK35,45200009-200408

main53875-0C040iUCK35,45200408

53876ALINER, FRONT FENDER, LH

main53876-0C020iUCK35,45200009-200408

main53876-0C040iUCK35,45200408

53903BPANEL SUB-ASSY, FRONT END

main53903-0C020iUCK35,45200009-200408

9008011221

main90080-11221

9008046281

main90080-46281

9015960444

main90159-60444

9017906308

main90179-06308

9017906319

main90179-06319

9018906214

main90189-06214

9046708011

main90467-08011

9095001911

main90950-01911

25 parts on this diagram · 2 diagrams in section
