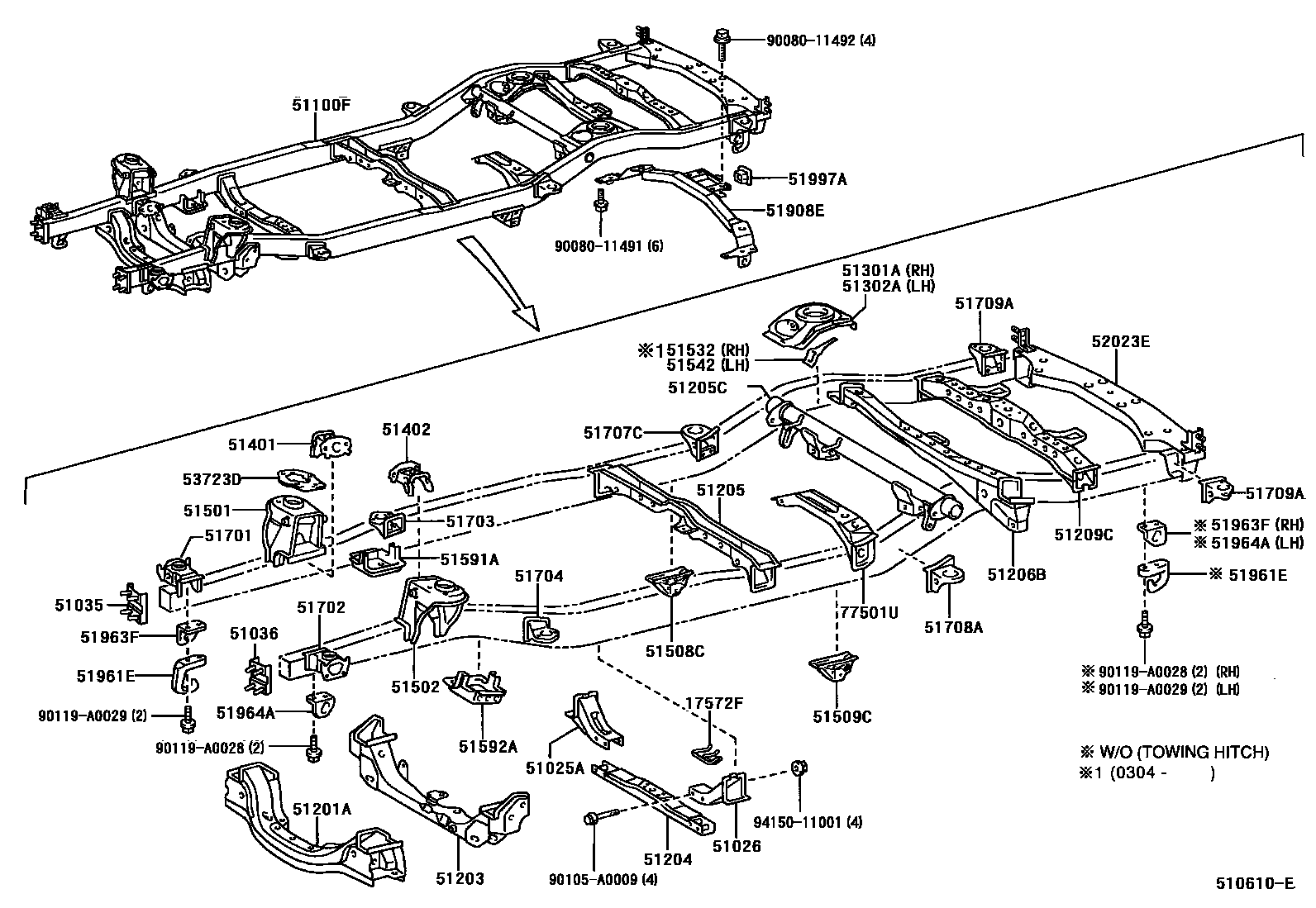

FRAME
17572FBRACKET, EXHAUST PIPE SUPPORT, NO.2
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51100FFRAME SUB-ASSY
W(TOWING HITCH)
W(TOWING HITCH)
W(TOWING HITCH)
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH
51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51532REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH
51542REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH
51591ASUPPORT, STABILIZER, RH
51592ASUPPORT, STABILIZER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51908EBRACKET SUB-ASSY, RECEIVER HITCH
51961EHOOK, FRONT
W/O(TOWING HITCH)
51963FHOOK, TRANSPORT
W/O(TOWING HITCH)
W/O(TOWING HITCH)
51964AHOOK, TRANSPORT, FRONT LH
W/O(TOWING HITCH)
W/O(TOWING HITCH)
51997ACAP, RECEIVER HITCH
52023EREINFORCEMENT SET, REAR BUMPER
53723DREINFORCEMENT, FRONT SPRING SUPPORT
77501UBRACKET SUB-ASSY, FUEL TANK
9008011491
main90080-11491
9008011492
main90080-11492
90105A0009
main90105-A0009
90119A0028
main90119-A0028
90119A0029
main90119-A0029
9415011001
main94150-11001
46 parts on this diagram · 2 diagrams in section
