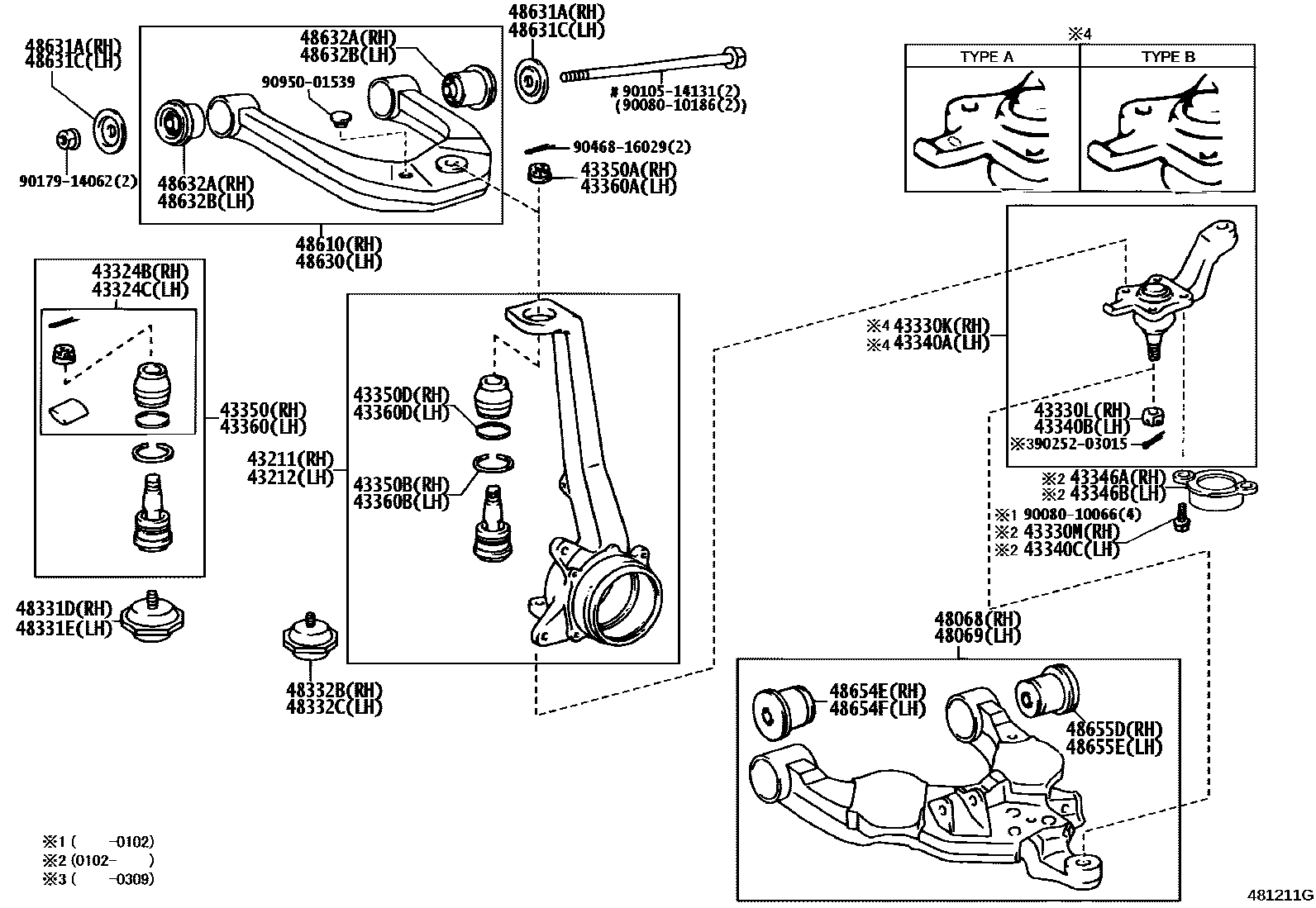

FRONT AXLE ARM & STEERING KNUCKLE
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
43330KJOINT ASSY, LOWER BALL, FRONT RH
sub43330-39466
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
sub43330-39805
sub43330-39825
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
GOLD
43340AJOINT ASSY, LOWER BALL, FRONT LH
sub43340-39356
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
sub43340-39575
sub43340-39595
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
GOLD
43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH
43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)
43350DWIRE (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)
43360DWIRE (FOR FRONT UPPER BALL JOINT LH)
48331DBUMPER, FRONT SPRING, NO.1 RH
48331EBUMPER, FRONT SPRING, NO.1 LH
48332BBUMPER, FRONT SPRING, NO.2 RH
48332CBUMPER, FRONT SPRING, NO.2 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
9008010066
main90080-10066
9008010186
main90080-10186
9010514131
main90105-14131
9017914062
main90179-14062
9025203015
main90252-03015
9046816029
main90468-16029
9095001539
main90950-01539
43 parts on this diagram · 1 diagram in section
