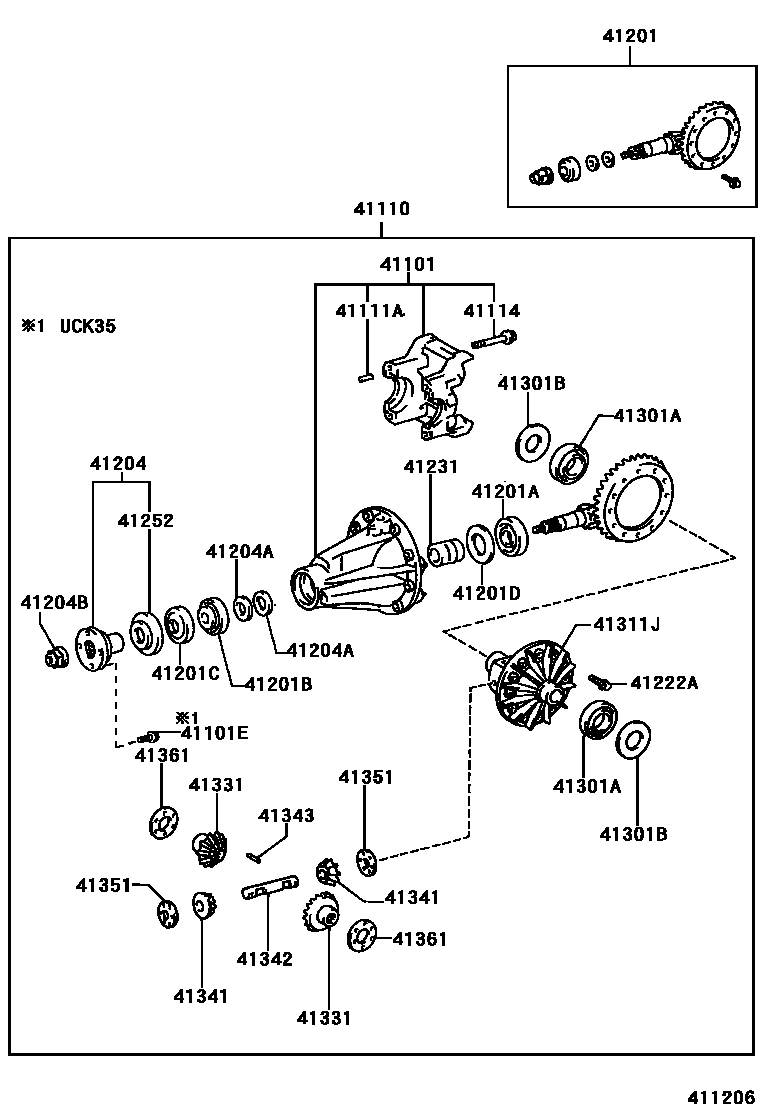

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:10=4.100
*FGR=41:10=4.100
*FGR=41:10=4.100
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=34.6
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
T=2.82
T=2.84
T=2.86
T=2.88
T=2.90
T=2.92
T=2.94
T=2.96
T=2.98
T=3.00
T=3.02
T=3.04
T=3.06
T=3.08
T=3.10
T=3.12
T=3.14
T=3.16
T=3.18
T=3.20
T=3.22
T=3.24
T=3.26
T=3.28
T=3.30
T=3.32
T=3.34
T=3.36
T=3.38
T=3.40
T=3.42
T=3.44
T=3.46
T=3.48
41311JCASE, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
sub41342-34012
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
25 parts on this diagram · 2 diagrams in section
