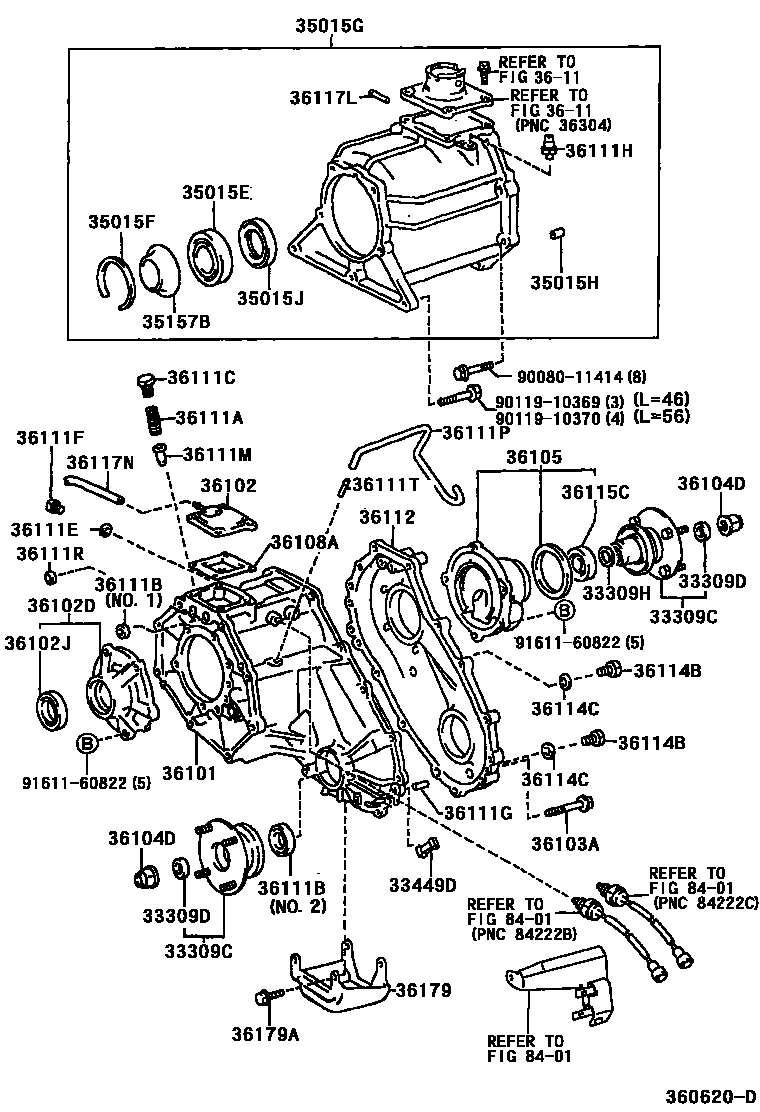

TRANSFER CASE & EXTENSION HOUSING
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
REAR
FRONT
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38
N=31,OD=38
33449DMAGNET (FOR TRANSFER CASE)
35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
35015HPIN, RING(FOR TRANSFER CASE)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36101CASE SUB-ASSY, TRANSFER
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36108ADEFLECTOR SUB-ASSY, BREATHER OIL
3611
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
NO.1
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)
36111PHOSE, BREATHER (FOR TRANSFER CASE)
L=540
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36117NHOSE(FOR TRANSFER ADAPTER)
36179PROTECTOR, TRANSFER CASE LOWER
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
(L)
(J)
8401
9008011414
9011910369
9011910370
9161160822
43 parts on this diagram · 2 diagrams in section
