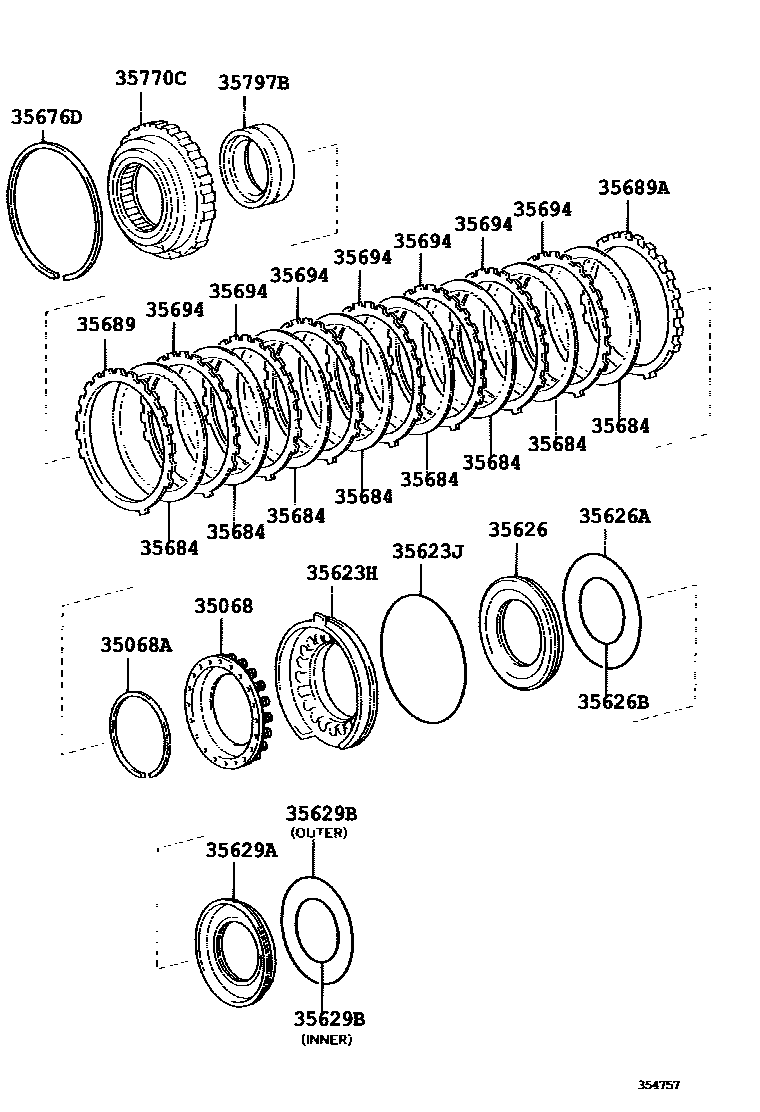

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A750E,A750F 0002 1A340E,A340F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0C010iUCK35,45200408

main35068-50010iUCK35,45200009-200408

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iUCK35,45200009-200408

main90520-61001iUCK35,45200408

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60050iUCK35,45200408-200611

main35623-60060iUCK35,45200611

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iUCK35,45200408

main90301-99192iUCK35,45200009-200408

35626SLEEVE, BRAKE REACTION

main35626-30020iUCK35,45200009-200408

main35626-60010iUCK35,45200408

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iUCK35,45200408

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005iUCK35,45200009-200408

main90301-79003iUCK35,45200408

35629APISTON, BRAKE, NO.4

main35629-0C010iUCK35,45200408-200707

main35629-60010iUCK35,45200708

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iUCK35,45200408

INNER

main90301-99151iUCK35,45200408

OUTER

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iUCK35,45200408

35684DISC, BRAKE, NO.4

main35684-0C010×8iUCK35,45200408

35689FLANGE, BRAKE, NO.4

main35689-0C010iUCK35,45200408

T=1.8,MARK 0

main35689-0C020iUCK35,45200408

T=2.0,MARK 2

main35689-0C030iUCK35,45200408

T=2.2,MARK 4

main35689-0C040iUCK35,45200408

T=2.4,MARK 6

main35689-0C050iUCK35,45200408

T=2.6,MARK 8

main35689-0C060iUCK35,45200408

T=2.8,MARK 10

main35689-0C070iUCK35,45200408

T=3.0,MARK 12

main35689-0C080iUCK35,45200408

T=3.2,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iUCK35,45200408

35694PLATE, BRAKE, NO.4

main35694-0C010×7iUCK35,45200408

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0C010iUCK35,45200408

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iUCK35,45200408

16 parts on this diagram · 2 diagrams in section
