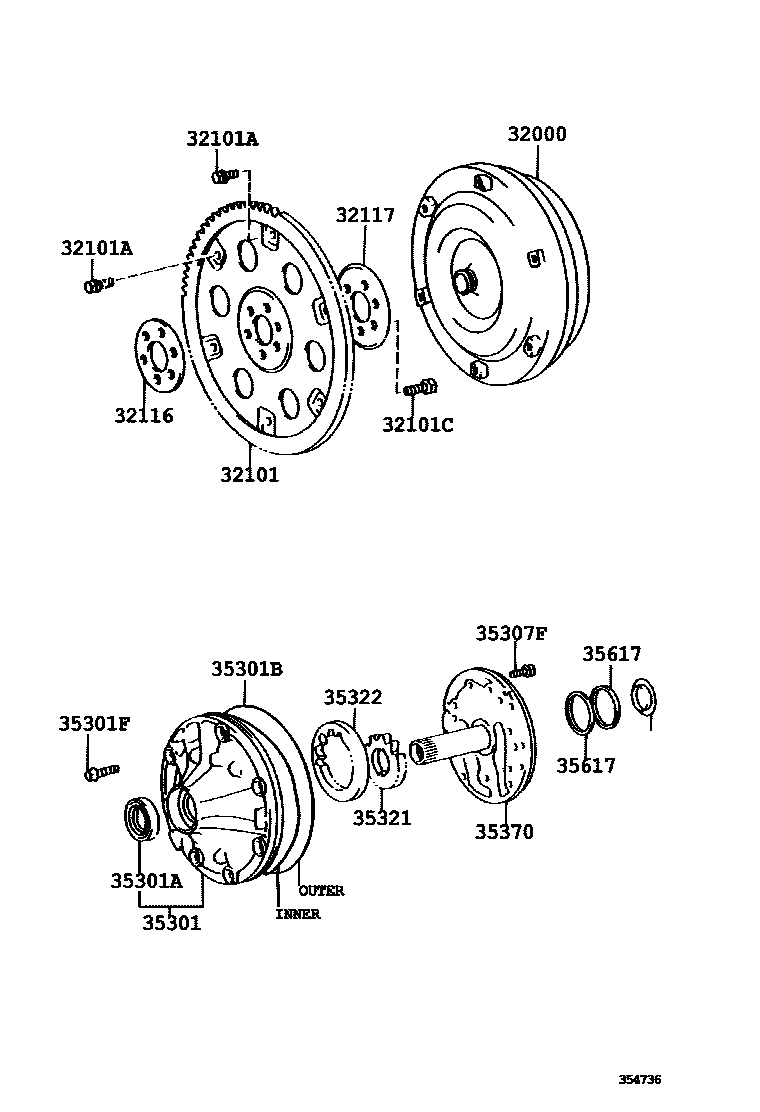

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(L),FRONT
(J)
(J),FRONT
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.8-9
*9-1.25PX12.8-8.8
*9-1.25PX12.8-9
*9-1.25PX12.8-8.8
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX23-16
*10-1.25PX23-16
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301BRING, O (FOR FRONT OIL PUMP BODY)
OUTER
INNER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-35
*8-1.25PX40-30
*8-1.25PX40-30
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.76,MARK 0
T=10.76,MARK 1
T=10.76,MARK 2
T=10.76,MARK 3
T=10.76,MARK 4
T=10.76,MARK 5
T=10.76,MARK 6
T=10.690-10.699
T=10.700-10.709
T=10.710-10.720
T=10.721-10.730
T=10.731-10.740
35617RING, CLUTCH DRUM OIL SEAL
