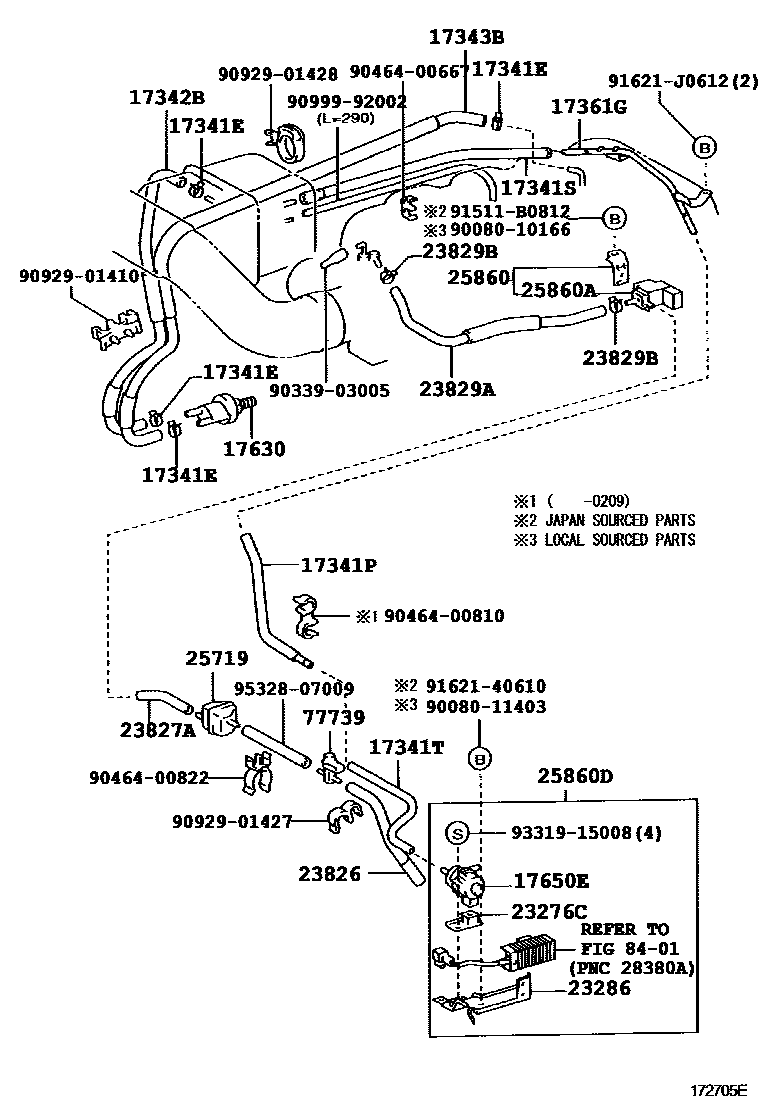

VACUUM PIPING
17341ECLIP, NO.1(FOR IDLE-UP HOSE)
17341PHOSE, AIR
17341SHOSE, AIR
17341THOSE, AIR, NO.1
17342BHOSE, NO.2(FOR IDLE-UP)
17343BHOSE, NO.3(FOR IDLE-UP)
17361GTUBE, AIR(FOR IDLE-UP)
17630VALVE ASSY, AIR CONTROL
17650VALVE ASSY, VACUUM SWITCHING
17650EVALVE, VACUUM SWITCHING
23276CBRACKET, VACUUM CONTROL VALVE, NO.2
23286BRACKET, FUEL PUMP RESISTOR
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25719TANK, VACUUM SURGE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860AVALVE, VACUUM SWITCHING, NO.1
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
77739VALVE, EVAP SERVICE PORT
sub77739-33010
8401
9008010166
main90080-10166
9008011403
main90080-11403
9033903005
main90339-03005
9046400667
main90464-00667
9046400810
main90464-00810
9046400822
main90464-00822
9092901410
main90929-01410
9092901427
main90929-01427
9092901428
main90929-01428
9099992002
main90999-92002
91511B0812
main91511-B0812
9162140610
main91621-40610
91621J0612
main91621-J0612
9331915008
main93319-15008
9532807009
main95328-07009
37 parts on this diagram · 2 diagrams in section
