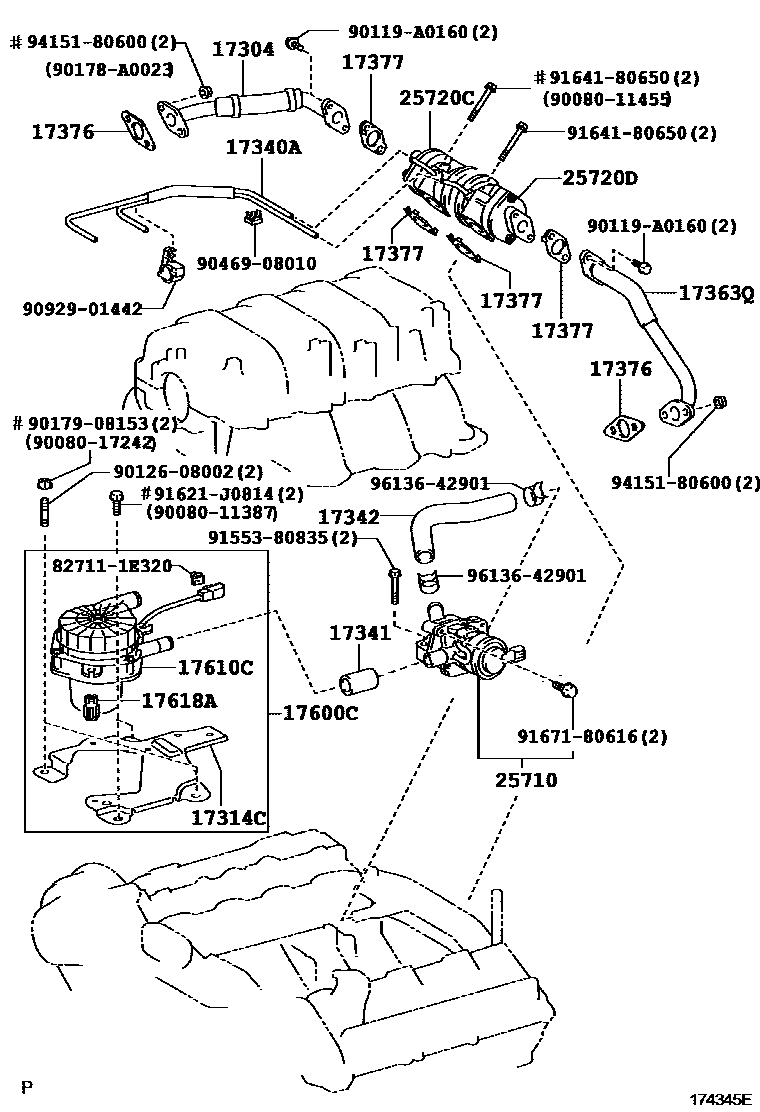

MANIFOLD AIR INJECTION SYSTEM

17304TUBE SUB-ASSY, AIR, RH

main17304-50010i2UZFE..UCK35,45200408

17314CBRACKET, AIR PUMP

main17314-0F010i2UZFE..UCK35,45200408

17340AHOSE ASSY, VACUUM SWITCHING VALVE

main17340-50010i2UZFE..UCK35,45200408-200411

main17340-50020i2UZFE..UCK35,45200411-200611

sub17340-50030

main17340-50030i2UZFE..UCK35,45200611

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-50180i2UZFE..UCK35,45200408

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-50180i2UZFE..UCK35,45200408

17363QTUBE, AIR, NO.3

main17363-50020i2UZFE..UCK35,45200408

17376GASKET, AIR TUBE, NO.1

main17376-50010i2UZFE..UCK35,45200408

17377GASKET, AIR TUBE, NO.2

main17377-50010i2UZFE..UCK35,45200408

17600CPUMP ASSY, AIR

main17600-0F010i2UZFE..UCK35,45200408

17610CPUMP ASSY, AIR

main17610-0C010i2UZFE..UCK35,45200408

17618AINSULATOR, AIR PUMP

main17618-0F010i2UZFE..UCK35,45200408

25710VALVE ASSY, AIR SWITCHING

main25710-50020i2UZFE..UCK35,45200408

sub25710-50021

25720CVALVE ASSY, AIR SWITCHING, NO.1

main25720-50010i2UZFE..UCK35,45200408-200611

sub25720-50011

main25720-50011i2UZFE..UCK35,45200611

25720DVALVE ASSY, AIR SWITCHING, NO.2

main25720-50020i2UZFE..UCK35,45200408

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9008011387

main90080-11387

9008011455

main90080-11455

9008017242

main90080-17242

90119A0160

main90119-A0160

9012608002

main90126-08002

90178A0023

main90178-A0023

9017908153

main90179-08153

9046908010

main90469-08010

9092901442

main90929-01442

9155380835

main91553-80835

91621J0814

main91621-J0814

9164180650

main91641-80650

9167180616

main91671-80616

9415180600

main94151-80600

9613642901

main96136-42901

30 parts on this diagram · 1 diagram in section
