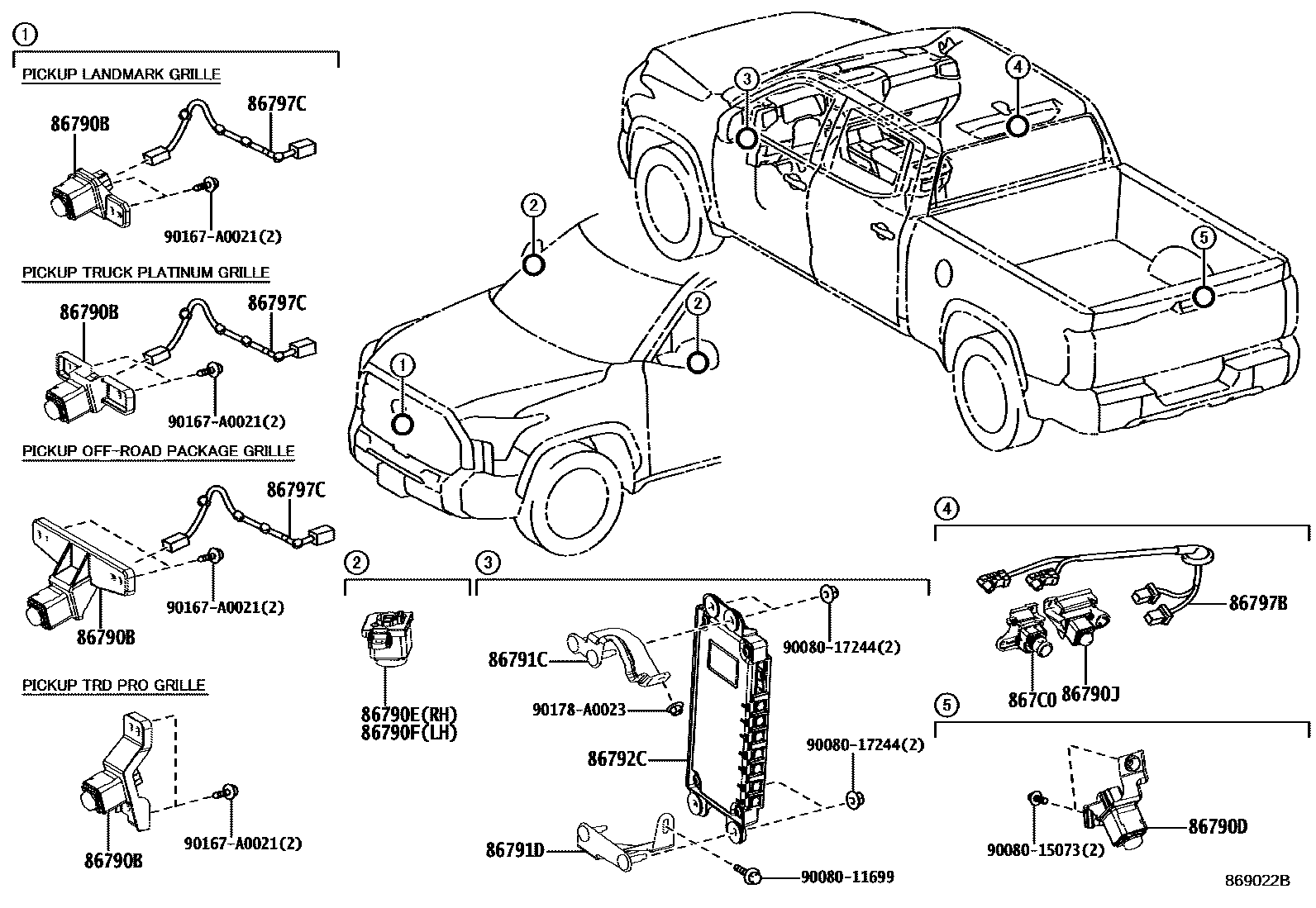

CAMERA & REAR MONITOR DISPLAY
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
86790ECAMERA ASSY, TELEVISION, SIDE RH
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(PANORAMICVIEW MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
86790FCAMERA ASSY, TELEVISION, SIDE LH
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(PANORAMICVIEW MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790JCAMERA ASSY, TELEVISION, REAR NO.2
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
SR5-PREMIUM&TRD OFFROAD PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SR5-PREMIUM&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86792CCOMPUTER, PARKING ASSIST
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-0C052
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-0C052
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-0C052
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-0C052
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-0C053
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-0C053
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-0C053
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-0C053
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
*614
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-AN030
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
sub86792-AN030
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-AN030
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
sub86792-AN030
*614
*614
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
SR5-PREMIUM&TRD OFFROAD PACKAGE&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
SR5-PREMIUM&AUDIO-NAVIGATION 14INCH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
TRD PRO PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACKMONITOR-WITH(MULTI-TELLAIN MONITOR),*614
*614
TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
TRD PRO PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(PANORAMICVIEW MONITOR),*614
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
SR5-PREMIUM&TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT
SR5-PREMIUM&TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRA
SR5-PREMIUM&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK
SR5-PREMIUM&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MON
HERITAGE PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&
HERITAGE PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BAC
HERITAGE PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BAC
*614
TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
TRD PRO PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR),*614
TRD PRO PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACKMONITOR-WITH(MULTI-TELLAIN MONITOR),*614
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&BACK MONITOR-WITH(PANORAMICVIEW MONITOR),*614
OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&PWREXT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),*614
SR5-PREMIUM&TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT
SR5-PREMIUM&TRD OFFROAD PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRA
SR5-PREMIUM&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK
SR5-PREMIUM&OUTSIDE REAR VIEW MIRROR-*RCM&*MIH&*BSM&PAINT&EC&*PVM&MEMORY&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MON
HERITAGE PACKAGE&OUTSIDE REAR VIEW MIRROR-*RCM & *MIH & *BSM & PAINT & EC & *PVM&AUDIO-NAVIGATION 14INCH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&
*614
86797BWIRE, PARKING ASSIST
86797CWIRE, PARKING ASSIST
SR5-PREMIUM&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
SR5-PREMIUM&TRD OFFROAD PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
TRD OFFROAD PACKAGE&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR)
867C0CAMERA ASSY, INNER MIRROR
9008011699
main90080-11699
9008015073
main90080-15073
9008017244
main90080-17244
90167A0021
main90167-A0021
90178A0023
main90178-A0023
16 parts on this diagram · 2 diagrams in section
