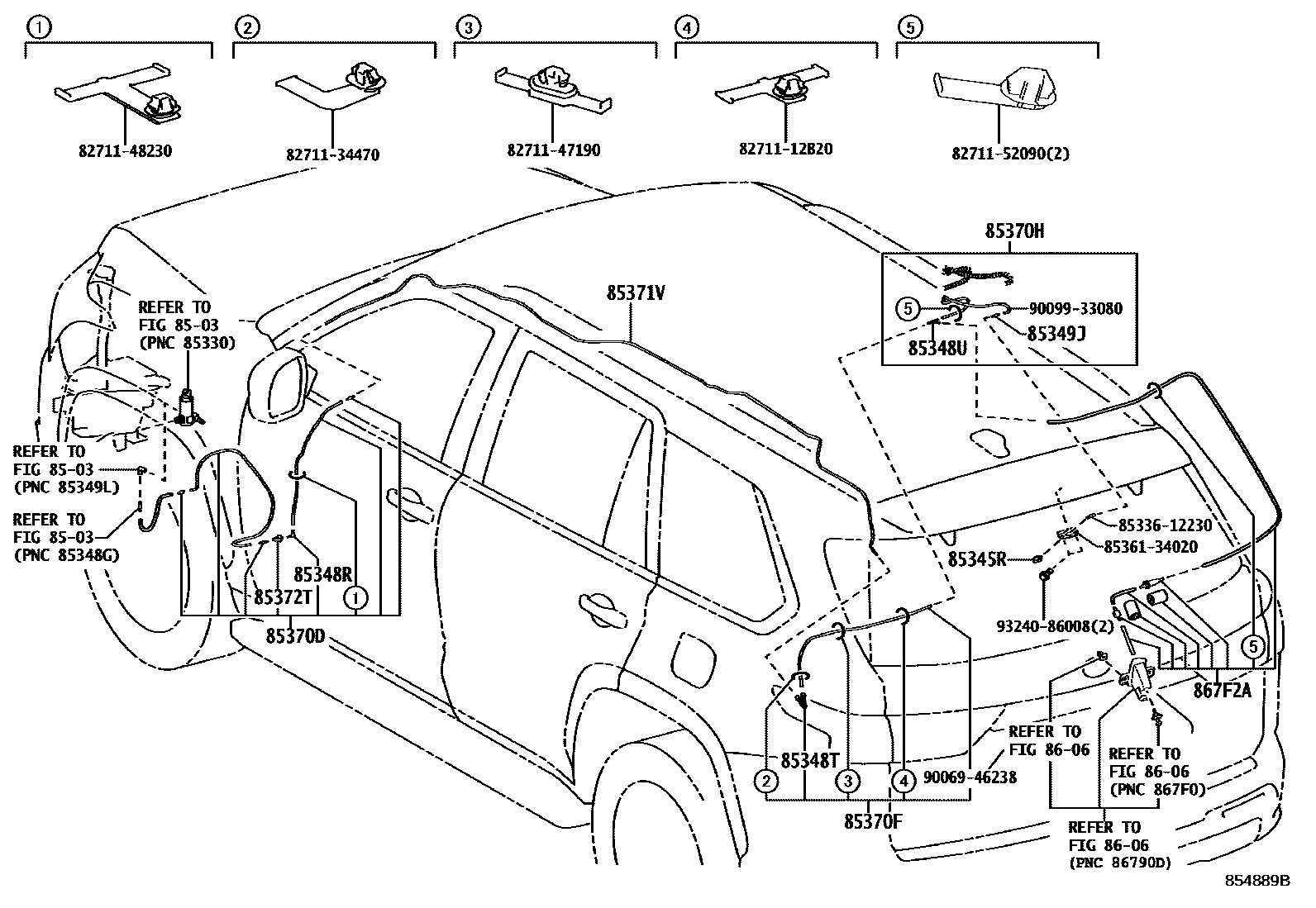

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-0C020iVXKH80..Z202207-202408

85348RJOINT, REAR WASHER HOSE, NO.1

main85377-0C110iVXKH80..Z202207-202408

85348TJOINT, REAR WASHER HOSE, NO.2

main85377-0C190iVXKH80..Z202207-202408

85348UJOINT, REAR WASHER HOSE, NO.3

main85378-0E010iVXKH80..Z202207-202408

85349JJOINT, REAR WASHER HOSE, NO.4

main85375-0E010iVXKH80..Z202207-202408

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-0C110iVXKH80..Z202207-202408

85370FHOSE ASSY, REAR WASHER, NO.3

main85370-0C190iVXKH80..Z202207-202408

85370HHOSE ASSY, REAR WASHER, NO.4

main85370-0C200iVXKH80..Z202207-202408

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90069-46239iVXKH80..Z202207-202408

L=3493

main90069-46239iVXKH85..Z202207

L=3493,MOON ROOF-WITH(PANORAMA ROOF)

main90069-46240iVXKH8#..L,S202207

L=3441

85372TGROMMET, WASHER

main85373-0C010iVXKH80..Z202207-202408

8606

867F2AHOSE ASSY, CAMERA CLEANER

main867F2-0C030iVXKH80..Z202207-202408

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B20

8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34470

8271147190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-47190

8271148230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48230

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8533612230SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-12230

8536134020HOLDER, WINDSHIELD WASHER

main85361-34020

9006946238

main90069-46238

9009933080

main90099-33080

9324086008

main93240-86008

23 parts on this diagram · 1 diagram in section
