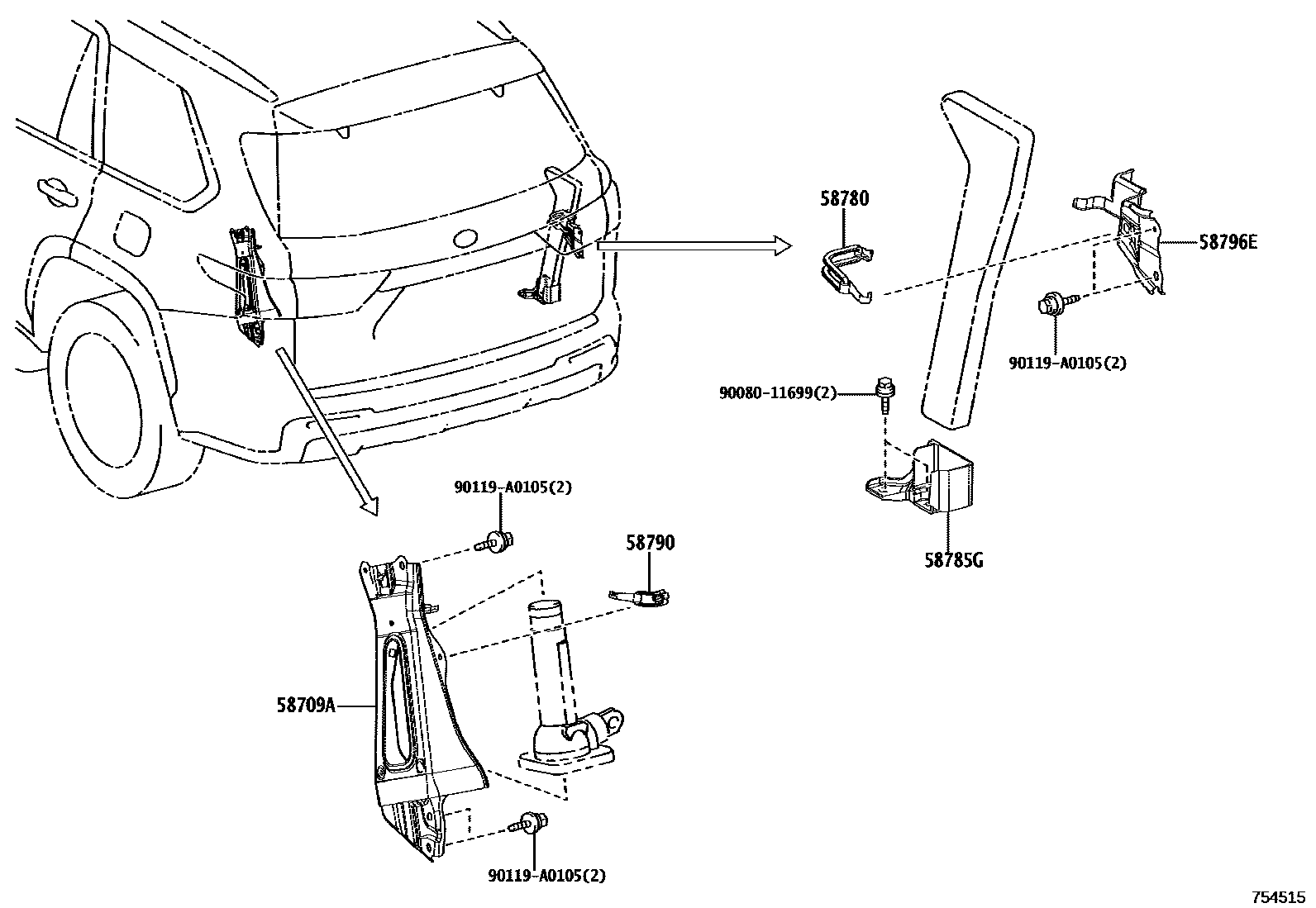

TOOL BOX & LICENSE PLATE BRACKET

58709ACARRIER SUB-ASSY, JACK

main58709-0C010iVXKH80..Z202207-202408

58780BAND ASSY, TOOL BOX

main58780-0C050iVXKH80..Z202207-202408

58785GBRACKET, TOOL BAG, LOWER

main58785-0C030iVXKH80..Z202207-202408

58790CARRIER ASSY, JACK

main58790-0C020iVXKH80..Z202207-202408

58796EBRACKET, JACK HANDLE CLAMP, NO.1

main58796-0C020iVXKH80..Z202207-202408

9008011699

main90080-11699

90119A0105

main90119-A0105

7 parts on this diagram · 1 diagram in section
